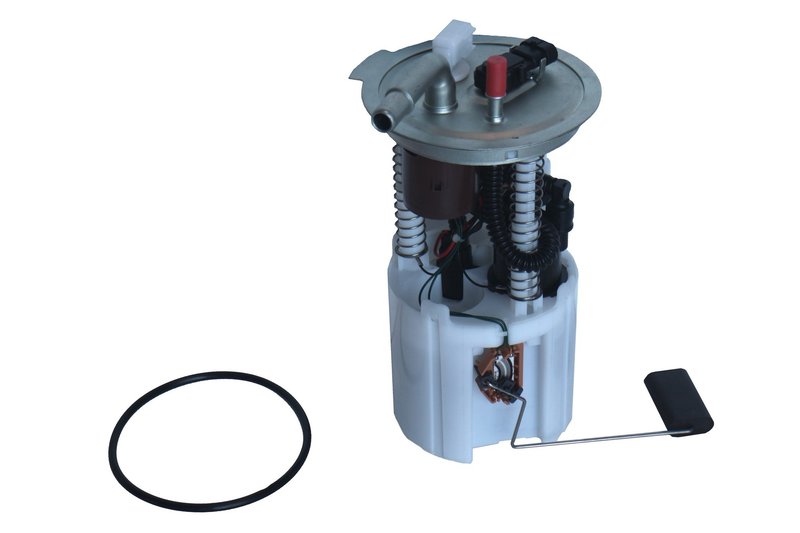

Autobest F2718A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2718A

The Autobest Fuel Pump Module Assembly F2718A is designed for reliable fuel delivery in select Buick, Chevrolet, GMC, Isuzu, and Saab vehicles. This in-tank fuel pump module ensures consistent fuel pressure and flow for models like the Trailblazer, Envoy, and 9-7x.

• Average current draw of 10 amps for efficient operation
• Fuel flow rating of 39.6 gallons per hour (GPH)
• Includes fuel filter, sending unit, and tank pressure sensor
• Male rectangular connector with one quick connect outlet
• Constructed with durable POM housing and NBR gasket material
• Designed for in-tank installation with internal strainer
• Maintains fuel pressure between 58 and 63.8 PSI

Technical Details and Features

The F2718A fuel pump module assembly from Autobest is engineered to meet the fuel delivery requirements of various GM and Isuzu vehicles. It features a 0.433-inch strainer inlet and a 3/8-inch quick connect outlet, facilitating straightforward integration with existing fuel systems. The module includes a fuel sending unit and a fuel tank pressure sensor, providing accurate fuel level readings and pressure monitoring. The housing is made from POM material, known for its chemical resistance and durability, while the included NBR gasket ensures a secure seal to prevent leaks. This module operates on a negative ground system and draws an average current of 10 amps, supporting a fuel flow rate of 39.6 GPH to maintain optimal engine performance.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Buick 9-7x
• Chevrolet Trailblazer, SSR
• GMC Envoy, Rainier
• Isuzu Ascender
• Saab 9-7x

It is designed specifically for in-tank installation, making it suitable for fuel systems requiring integrated pump and sensor modules.

Common Issues Addressed by the F2718A Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sending units
• Fuel pressure inconsistencies causing engine performance problems
• Fuel contamination prevented by integrated fuel filter
• Sensor malfunctions affecting fuel tank pressure monitoring

Installation Notes and Tips

The Autobest F2718A fuel pump module assembly is designed for direct replacement without the need for additional mounting hardware. It features a male rectangular connector and a quick connect outlet for simplified electrical and fuel line connections. No special installation warnings are noted, but it is recommended to follow vehicle-specific service manuals for safe removal and installation procedures. Ensure the gasket is properly seated to prevent leaks and verify all electrical connections are secure before testing the fuel system.

Quality Assurance and Warranty

Autobest provides this fuel pump module assembly with a focus on durability and consistent performance. The product is available to order and includes a fuel filter, sending unit, pressure sensor, and gasket to ensure a complete replacement solution. While specific warranty details are not provided here, Autobest products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer upon purchase.
