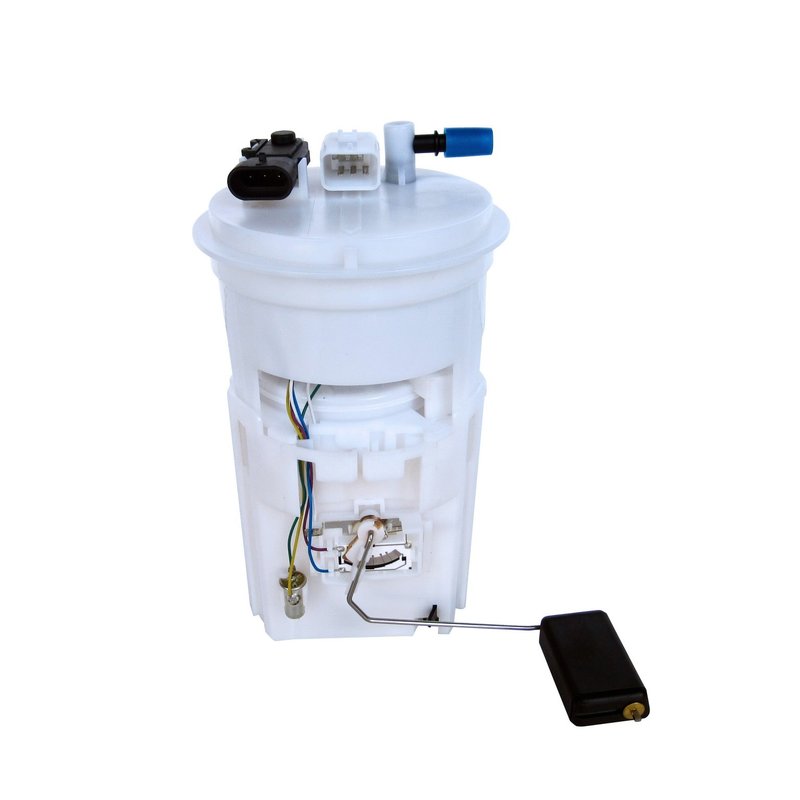

Autobest F2722A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2722A

The Autobest Fuel Pump Module Assembly F2722A is designed for reliable fuel delivery in select Chevrolet and Pontiac vehicles. Engineered to meet the specifications of the Chevrolet Aveo, Aveo5, and Pontiac Wave, this in-tank fuel pump module ensures consistent fuel flow and pressure for optimal engine performance.

• Average current draw of 6.8 amps for efficient operation
• Fuel flow rating of 30.4 gallons per hour (GPH)
• Includes fuel filter, fuel sending unit, and fuel tank pressure sensor
• Male rectangular connector with one connector and one outlet
• Maximum pump pressure of 56.5 PSI and minimum pressure of 53.6 PSI
• Constructed with durable POM housing and FKM gasket material
• Internal strainer inlet type with 0.433 inch inlet size
• Negative ground electrical system compatibility
• Quick connect outlet type with 5/16 inch outlet size

Technical Details and Features

The Autobest F2722A fuel pump module assembly is an in-tank design that integrates multiple components to streamline fuel delivery. It features an internal strainer inlet that helps prevent debris from entering the fuel system, enhancing longevity. The module includes a fuel filter, fuel sending unit, and a fuel tank pressure sensor, providing comprehensive functionality in one assembly. The housing is made from POM (polyoxymethylene), a material known for its strength and chemical resistance, while the gasket is constructed from FKM, ensuring a reliable seal under various operating conditions.

Electrical connections are facilitated through a single male rectangular connector, simplifying installation and ensuring secure connectivity. The pump operates within a pressure range of 53.6 to 56.5 PSI, delivering a steady fuel flow rated at 30.4 GPH, suitable for the fuel demands of the Chevrolet Aveo, Aveo5, and Pontiac Wave models.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Aveo
• Chevrolet Aveo5
• Pontiac Wave

It is designed to replace the original fuel pump module in these models, addressing issues related to fuel delivery and sensor functionality.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sending unit
• Fuel pressure irregularities affecting engine performance
• Fuel contamination from debris entering the system
• Malfunctioning fuel tank pressure sensor impacting emissions control

Installation Notes and Tips

The Autobest F2722A is designed for direct replacement in compatible Chevrolet and Pontiac models. No special mounting hardware is included, so retain original components if applicable. The module features a quick connect outlet and a single male rectangular connector for straightforward electrical hookup. Installation should be performed with the vehicle powered off and fuel system depressurized to ensure safety. Verify all connections are secure and check for leaks after installation.

Quality Assurance and Warranty

Autobest fuel pump modules are manufactured to meet industry standards for durability and performance. This product is available to order and backed by Autobest's quality control processes. While specific warranty details are not provided here, Autobest typically offers coverage against manufacturing defects. Consult the product documentation or supplier for exact warranty terms.
