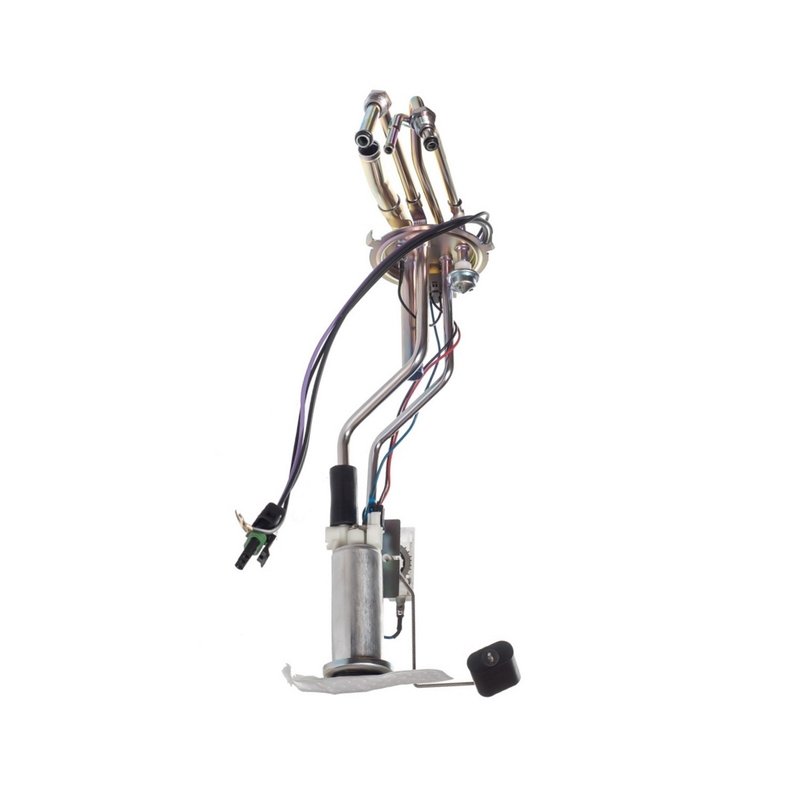

Autobest F2732A Fuel Pump and Sender Assembly

Overview of Autobest Fuel Pump and Sender Assembly F2732A

The Autobest Fuel Pump and Sender Assembly F2732A is designed for reliable fuel delivery in select Chevrolet and GMC trucks. This in-tank fuel pump and sender unit provides consistent flow and pressure to support engine performance in models such as the Chevrolet C1500 and GMC K2500.

• Average current draw: 5 amps for efficient power use
• Average flow rating: 29 gallons per hour (GPH)
• Includes fuel sending unit and NBR gasket for secure sealing
• Female rectangular connector with one outlet (threaded M16 x 10.5)
• External strainer inlet type with 0.433 inch inlet size
• Designed for in-tank installation with no mounting hardware included
• Maximum pump pressure of 20 PSI and minimum of 10 PSI
• Compatible with Chevrolet and GMC truck models including C1500, C2500, C3500, K1500, K2500, K3500, R30, R2500, R3500, V30, and V3500

About the Autobest Fuel Pump and Sender Assembly Product Line

The Autobest Fuel Pump and Sender Assembly product line focuses on delivering integrated fuel pump and sending unit solutions for performance and reliability. This assembly combines the fuel pump and sending unit into a single in-tank component, simplifying installation and ensuring accurate fuel level readings. The F2732A model maintains consistent fuel flow and pressure, meeting the demands of medium and heavy-duty Chevrolet and GMC trucks.

Detailed Product Description

The F2732A fuel pump and sender assembly operates with an average current draw of 5 amps and delivers a flow rate of 29 GPH, suitable for maintaining optimal fuel supply under various driving conditions. It features a female rectangular connector with one outlet, designed for secure and reliable electrical connections. The external strainer inlet helps protect the pump from debris, while the included NBR gasket ensures a tight seal within the fuel tank. This assembly is engineered for in-tank installation and supports fuel pressures ranging from 10 to 20 PSI, aligning with the requirements of Chevrolet and GMC truck fuel systems.

Common Applications and Problem Resolution

• Replacement for failing or noisy fuel pumps in Chevrolet C1500 and GMC K2500 trucks
• Restores accurate fuel level readings with the included sending unit
• Addresses fuel delivery issues causing engine hesitation or stalling
• Prevents fuel leaks with the included NBR gasket seal
• Supports performance upgrades requiring consistent fuel flow and pressure

Installation Notes and Tips

The F2732A assembly is designed for in-tank installation and does not include mounting hardware, so ensure compatibility with your vehicle’s existing setup. The connector is female and rectangular with a single outlet, so verify wiring harness compatibility before installation. No special installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

Manufactured in China, the Autobest Fuel Pump and Sender Assembly F2732A is available to order and meets performance grade standards. It includes a fuel sending unit and NBR gasket for reliable operation. Warranty details should be confirmed with the distributor or retailer, as they may vary.
