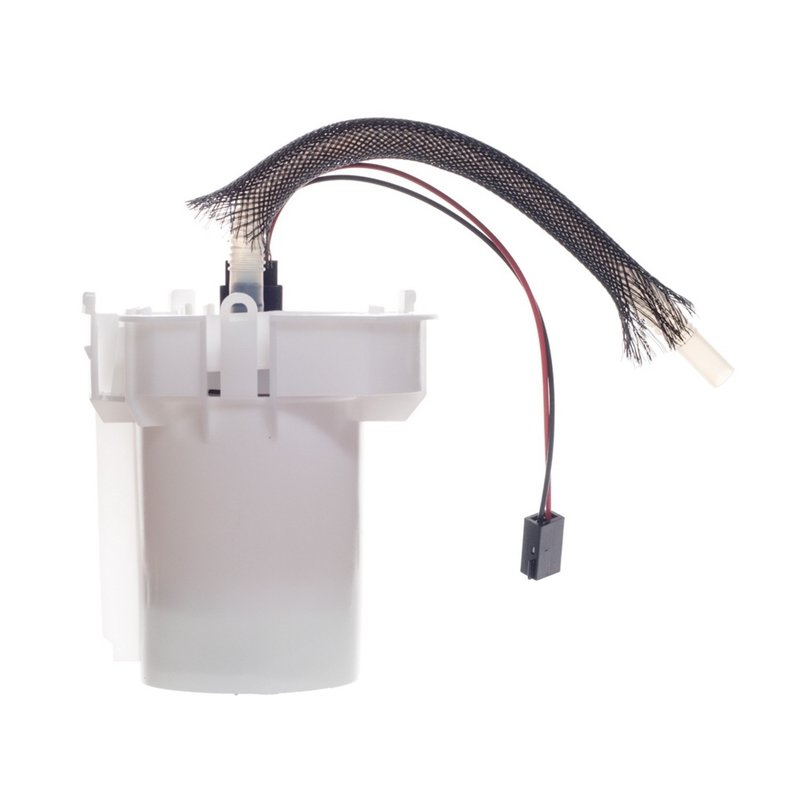

Autobest F2748A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2748A

The Autobest Fuel Pump Module Assembly F2748A is designed specifically for Saturn LS, LS1, LS2, LW1, and LW2 models. This in-tank fuel pump module provides reliable fuel delivery with a consistent flow rate and pressure, ensuring optimal engine performance for your Saturn vehicle.

• Average current draw: 7 amps for efficient power consumption
• Average flow rating: 34.4 gallons per hour (GPH)
• Maximum pump pressure: 108.8 PSI, minimum pressure: 79.8 PSI
• Single male rectangular connector for secure electrical connection
• Internal strainer inlet type with 0.433-inch inlet size
• Hose connection outlet with 0.315-inch outlet size
• In-tank installation design for direct fuel delivery
• Includes pump and module; no fuel filter, sending unit, or gasket included

Technical Details and Specifications

The Autobest F2748A fuel pump module assembly operates with an average current draw of 7 amps, delivering a steady fuel flow of 34.4 GPH. It maintains fuel pressure between 79.8 and 108.8 PSI, suitable for the fuel system requirements of Saturn LS series vehicles. The module features a single male rectangular connector and an internal strainer inlet, which helps protect the pump from debris. The outlet is designed for hose connection with a 0.315-inch diameter, facilitating straightforward integration with the vehicle’s fuel lines. This assembly is intended for in-tank installation, ensuring efficient fuel delivery and system compatibility.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Saturn models:

• Saturn LS
• Saturn LS1
• Saturn LS2
• Saturn LW1
• Saturn LW2

It is engineered to replace the original fuel pump module in these vehicles, addressing issues related to fuel delivery and pressure regulation.

Common Issues Addressed by the Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Low fuel pressure causing engine performance problems
• Fuel pump noise or irregular operation
• Engine stalling or hesitation during acceleration
• Check engine light related to fuel system faults

Installation Notes and Tips

The Autobest F2748A is designed for in-tank installation and requires removal of the fuel tank for replacement. Ensure the electrical connector matches the single male rectangular type specified. No mounting hardware, fuel filter, sending unit, or gasket is included, so retain or replace these components as needed. Follow all safety precautions when working with fuel systems, including depressurizing the fuel system before removal.

Quality Assurance and Warranty

Manufactured by Autobest, this fuel pump module assembly meets regular grade standards and is available to order with consistent quality. While no specific warranty details are provided, Autobest products typically adhere to industry standards for durability and performance. Verify warranty terms with the supplier or manufacturer upon purchase.
