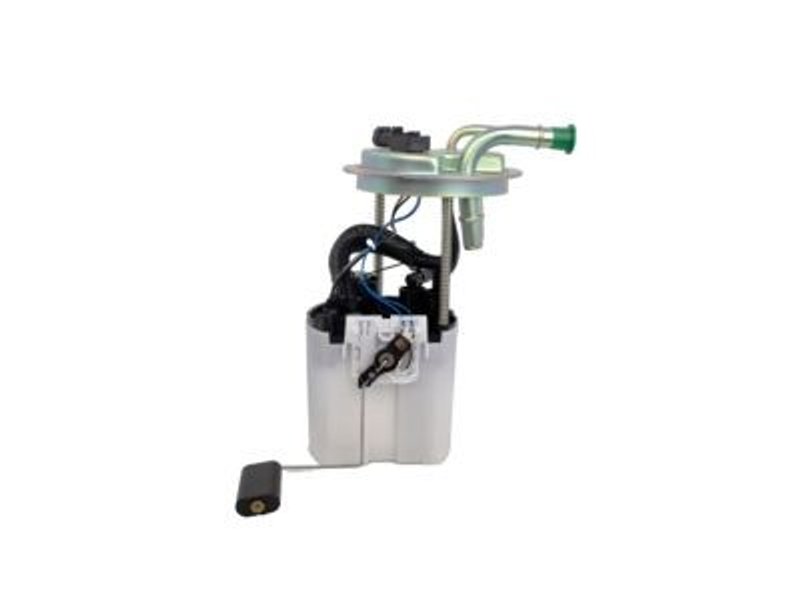

Autobest F2764A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2764A

The Autobest Fuel Pump Module Assembly F2764A is designed for reliable fuel delivery in select GM vehicles. Engineered to meet performance standards, this in-tank fuel pump module is compatible with Cadillac, Chevrolet, and GMC models including the Avalanche, Escalade ESV, Escalade EXT, Suburban 1500, and Yukon XL 1500.

• Average current draw of 12.75 amps for efficient operation
• Fuel flow rating of 30.4 gallons per hour (GPH)
• Includes fuel filter, fuel sending unit, and fuel tank pressure sensor
• Equipped with a male racetrack connector for secure electrical connection
• Inlet and outlet quick connect fittings (5/16" inlet, 3/8" outlet)
• Constructed with durable POM housing and NBR gasket/seal
• Designed for negative ground electrical systems
• Internal strainer included to protect fuel system components
• Performance grade type suitable for demanding applications
• Maximum pump pressure of 130 PSI and minimum of 80 PSI

Detailed Product Description

The Autobest F2764A fuel pump module assembly integrates multiple components into a single unit, including the fuel pump, fuel filter, sending unit, and fuel tank pressure sensor. This design simplifies replacement and ensures compatibility with the fuel system of your Cadillac Escalade ESV, Chevrolet Suburban 1500, or GMC Yukon XL 1500. The pump operates at an average current draw of 12.75 amps and delivers a consistent fuel flow rate of 30.4 GPH, supporting optimal engine performance under various driving conditions.

Featuring a durable POM housing and NBR gasket material, the module is built to withstand the rigors of in-tank installation. The male racetrack connector and quick connect inlet/outlet fittings facilitate straightforward electrical and fuel line connections. The internal strainer helps prevent contaminants from entering the fuel system, protecting injectors and other components. This fuel pump module assembly is designed for negative ground systems and meets performance-grade specifications, making it suitable for vehicles requiring reliable fuel delivery at pressures between 80 and 130 PSI.

Compatible Vehicles and Applications

• Cadillac Escalade ESV and Escalade EXT
• Chevrolet Avalanche and Suburban 1500
• GMC Yukon XL 1500

This fuel pump module assembly is ideal for addressing common fuel delivery issues such as:

• Intermittent or weak fuel pump operation
• Fuel pressure inconsistencies causing engine hesitation
• Faulty fuel level sending unit readings
• Fuel tank pressure sensor malfunctions affecting emissions
• Clogged fuel filters reducing flow and performance

Installation Notes and Tips

The Autobest F2764A is designed for in-tank installation with no special warnings or additional mounting hardware required. Ensure the vehicle’s electrical system is negative ground before installation. Use proper safety precautions when working with fuel systems, including depressurizing the fuel tank and disconnecting the battery. Verify connector compatibility and secure all quick connect fittings to prevent leaks.

Quality Assurance and Warranty

Autobest fuel pump modules are manufactured to meet or exceed OEM specifications. The F2764A is currently available to order and includes a fuel filter, sending unit, pressure sensor, and gasket for a complete replacement solution. While specific warranty details are not provided here, Autobest products typically come with a limited warranty covering defects in materials and workmanship. Consult the product packaging or manufacturer documentation for exact warranty terms.
