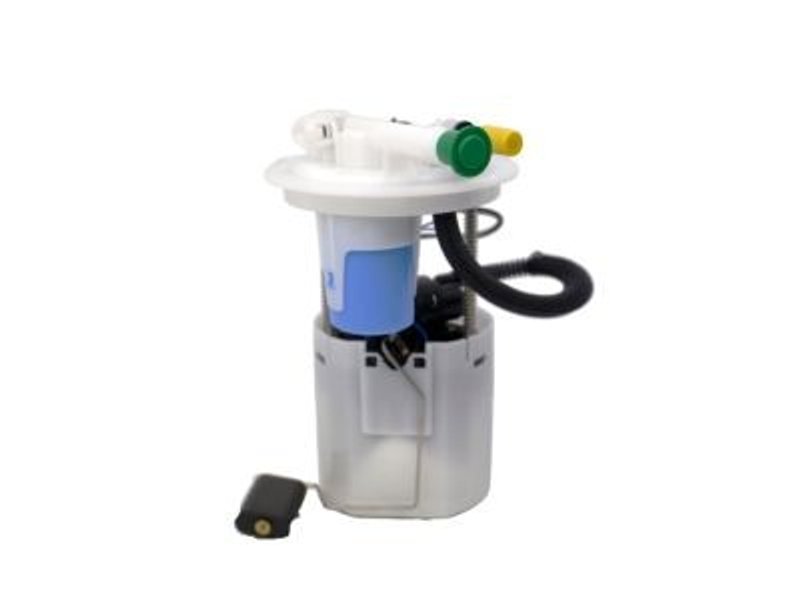

Autobest F2811A Fuel Pump Module Assembly
| Brand | Autobest F2811A |
|---|---|
| Average Current Draw(A) | 10.9 |
| Average Flow Rating(GPH) | 36.7 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Racetrack |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| Housing Material | Pom |
| In Tank or External | In tank |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 65 |
| Minimum Pump Pressure (PSI) | 55 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 |
| Outlet Type | Quick connect |
| Package Contents | Pump & kit |
| Package Height (in) | 7.28 |
| Package Length (in) | 14.17 |
| Package Width (in) | 11.02 |
| Product Height (in) | 7.01 |
| Product line | Fuel Pump Module Assembly |
| Fits | Chevrolet and Pontiac · 3 vehicles |
Complete installation kit. Includes the pump, filter, sending unit, pressure sensor, gasket, and seal.
Ethanol-tolerant design. Built for today’s fuel systems with materials chosen for fuel compatibility.
Turbine pump. Delivers steady fuel flow with a quick-connect outlet and internal strainer.
Cross-references Delphi FG2104, 19167799 and 19208971 for the same application. See all 8.
Fuel Pump Module Assembly for Chevrolet and Pontiac
Autobest F2811A is a fuel pump module assembly built for direct replacement service in select Chevrolet Uplander and Pontiac Montana applications. It combines the pump, sender, filter, regulator, and sealing components needed for a complete in-tank fuel delivery repair.
With a turbine-style pump, 12V operation, and ethanol-tolerant materials, this Autobest fuel pump module assembly is suited for restoring consistent fuel pressure and fuel level signal performance in 2008-2009 Chevrolet Uplander and 2008 Pontiac Montana models.
Key Features
- Complete fuel pump module assembly for in-tank installation
- Autobest part number F2811A
- Average flow rating: 36.7 GPH
- Operating pressure range: 55-65 PSI
- Turbine pump design with 12V electrical system
- Includes fuel filter, fuel sending unit, fuel tank pressure sensor, regulator, strainer, and gasket/seal
- Male connector with racetrack shape and 4-pin terminal layout
- 3/8 in. quick-connect outlet
- Built with top-grade components and tested during manufacturing
- Superior ethanol tolerance for modern fuel systems
Product Details
Autobest Fuel Pump Module Assembly F2811A is engineered as a complete in-tank fuel delivery unit for select GM minivan applications. It is designed to replace the pump module, fuel level sender, pressure sensor, and related sealing parts in one service event, helping simplify diagnosis and replacement on the fuel system. The module uses a turbine pump, internal strainer, and performance-grade housing materials to support stable fuel delivery and reliable operation.
This part cross-references Delphi FG2104 for the same application. It is a direct-fit option for 2008-2009 Chevrolet Uplander and 2008 Pontiac Montana models, making it a practical choice when servicing fuel pressure, fuel level, or pump-related drivability concerns. Part number F2811A may also be referenced during catalog lookup for these vehicles.
Common Repair Uses
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Incorrect or erratic fuel gauge readings
- Fuel pump noise or pump failure
- Fuel system fault codes related to pressure or sender performance
Installation Notes
Fits 2008-2009 Chevrolet Uplander, N/A. Fits 2008 Pontiac Montana, N/A. Verify connector style, outlet type, and tank configuration before installation. This in-tank module uses a male racetrack connector, 3/8 in. quick-connect outlet, and does not include mounting hardware or a wire harness. Part number F2811A should be matched to the vehicle’s fuel system specifications before service begins.
Quality Assurance
Autobest states that only top-quality materials are used and that each fuel pump is tested throughout manufacturing. This fuel pump module assembly is backed by a limited lifetime warranty and is supplied with a 12-month unlimited mileage warranty from the manufacturer.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Chevrolet | Uplander | 3.9L | V6 | FLEX | 121.1" | N/A | Fuel Pump Module Assembly |
| 2008 | Chevrolet | Uplander | 3.9L | V6 | FLEX | 121.1" | N/A | Fuel Pump Module Assembly |
| 2008 | Pontiac | Montana | 3.9L | V6 | FLEX | 121.1" | N/A | Fuel Pump Module Assembly |
