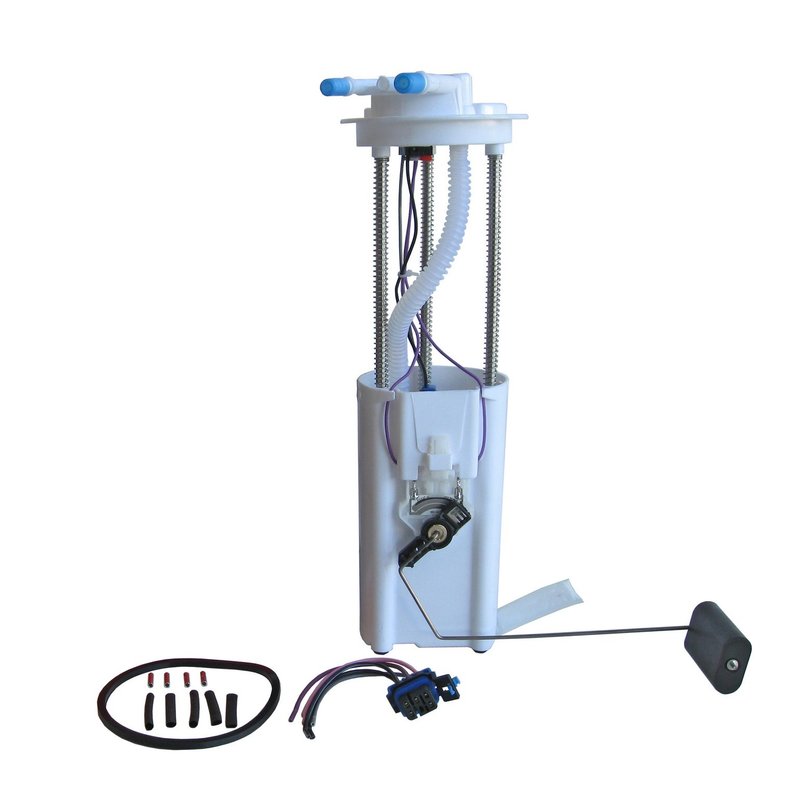

Autobest F2906A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2906A

The Autobest Fuel Pump Module Assembly F2906A is designed specifically for Chevrolet Express 3500 and GMC Savana 3500 models. This in-tank fuel pump module ensures reliable fuel delivery with a consistent flow rate and pressure, supporting optimal engine performance.

• Average current draw: 8.5 Amps
• Average flow rating: 41 gallons per hour (GPH)
• Maximum pump pressure: 145 PSI; Minimum pump pressure: 87 PSI
• Includes fuel sending unit for accurate fuel level readings
• Connector: 1 male rectangular quick connect
• Inlet size: 5/16 inch; Outlet size: 3/8 inch, both quick connect type
• Housing material: POM (Polyoxymethylene) for durability
• Grade type: Regular; Designed for in-tank installation

Technical Details and Specifications

The F2906A fuel pump module assembly operates with an average current draw of 8.5 amps, delivering a steady fuel flow of 41 GPH. It maintains fuel pressure between 87 and 145 PSI, ensuring consistent fuel supply under various driving conditions. The module features a single male rectangular connector designed for quick connect fittings, simplifying installation and maintenance. Constructed with a durable POM housing, this in-tank pump module is engineered to withstand the demands of Chevrolet Express 3500 and GMC Savana 3500 fuel systems. The included fuel sending unit provides accurate fuel level data, although the assembly does not include a fuel filter or tank pressure sensor.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Express 3500
• GMC Savana 3500

It is designed to replace the original equipment fuel pump module in these models, addressing issues related to fuel delivery and fuel level measurement.

Common Issues Addressed by the F2906A Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel gauge readings due to faulty sending unit
• Low fuel pressure causing engine performance problems
• Fuel pump noise or irregular operation
• Fuel pump electrical issues related to connector or current draw

Installation Notes and Tips

The Autobest F2906A is designed for in-tank installation with quick connect inlet and outlet fittings (5/16 inch inlet, 3/8 inch outlet). It includes one male rectangular connector for electrical connection. No mounting hardware, gasket, or seal is included, so ensure existing components are inspected and replaced if necessary. Installation should be performed by a qualified technician familiar with Chevrolet Express 3500 and GMC Savana 3500 fuel systems. No specific installation warnings are provided by the manufacturer.

Quality Assurance and Warranty

The Autobest fuel pump module assembly F2906A is manufactured to meet regular grade standards with durable materials such as POM housing and NBR gasket material (if applicable). It is available to order and backed by Autobest's quality control processes. Warranty details should be confirmed at the time of purchase, as coverage may vary depending on the distributor or retailer.
