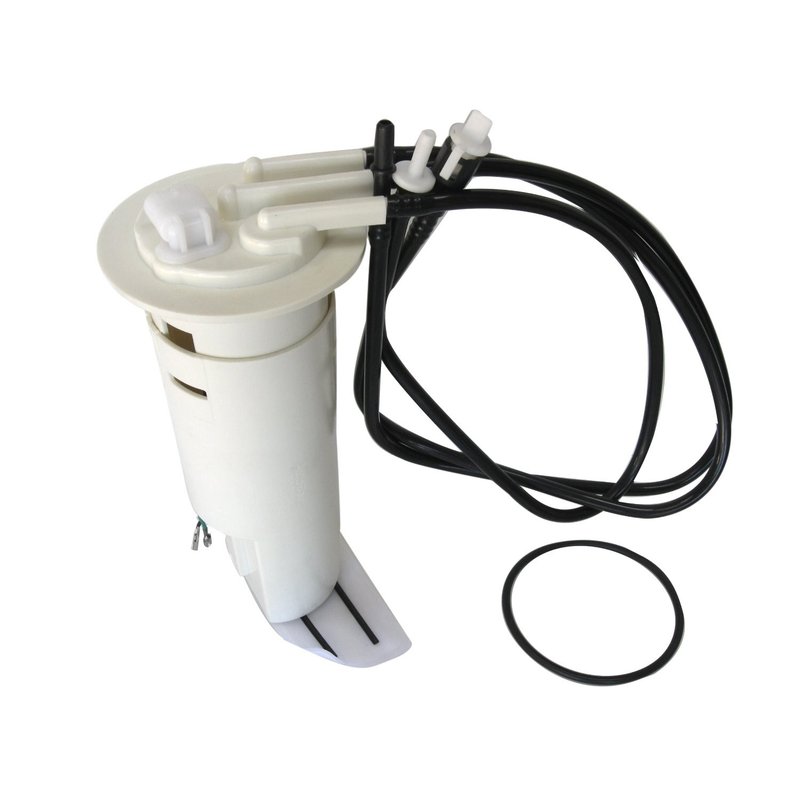

Autobest F2916A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2916A

The Autobest Fuel Pump Module Assembly F2916A is designed for reliable fuel delivery in select Saturn vehicles. Engineered as an in-tank fuel pump, it supports consistent fuel flow and pressure to maintain engine performance in Saturn SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models.

• Average current draw of 5.5 amps for efficient operation
• Fuel flow rating of 25.1 gallons per hour (GPH)
• In-tank design with internal strainer inlet type
• Connector: single male racetrack shape
• Includes FKM gasket/seal for secure installation
• Maximum pump pressure of 98.6 PSI and minimum of 79.8 PSI
• Housing made from durable POM material
• Outlet quick connect fitting sized 5/16 inch

Technical Details and Specifications

The F2916A fuel pump module assembly is manufactured with a POM housing material, providing durability and resistance to fuel corrosion. It features a single male racetrack connector and a quick connect outlet for straightforward electrical and fuel line connections. The internal strainer inlet ensures fuel is filtered before entering the pump, although this module does not include a separate fuel filter, sending unit, or tank pressure sensor. The included FKM gasket or seal helps maintain a tight fit and prevent leaks during installation. Operating within a pressure range of 79.8 to 98.6 PSI, this pump supports steady fuel delivery to the engine.

Compatible Saturn Models and Applications

This fuel pump module assembly is compatible with a range of Saturn vehicles, including the SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models. It is specifically designed for in-tank installation, making it suitable for fuel system repairs or replacements in these vehicles. The part number F2916A ensures correct fitment and performance for these Saturn models.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty or worn-out fuel pump modules in Saturn SC and SL series
• Eliminates fuel leaks with included FKM gasket seal
• Improves fuel system reliability in Saturn SW1 and SW2 models

Installation Notes and Tips

Installation of the Autobest F2916A fuel pump module assembly requires removal of the fuel tank for in-tank access. No mounting hardware is included, so existing hardware should be inspected and reused if in good condition. The internal strainer eliminates the need for an external fuel filter, but ensure the fuel tank is clean before installation. The male racetrack connector and quick connect outlet simplify electrical and fuel line connections. No special installation warnings are noted, but standard safety precautions for fuel system work should be followed.

Quality Assurance and Warranty Information

Manufactured in China, the Autobest F2916A fuel pump module assembly meets regular grade standards for fuel delivery components. It is available to order and includes a gasket or seal made from FKM material to ensure a secure fit. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to support reliable operation in compatible Saturn vehicles.
