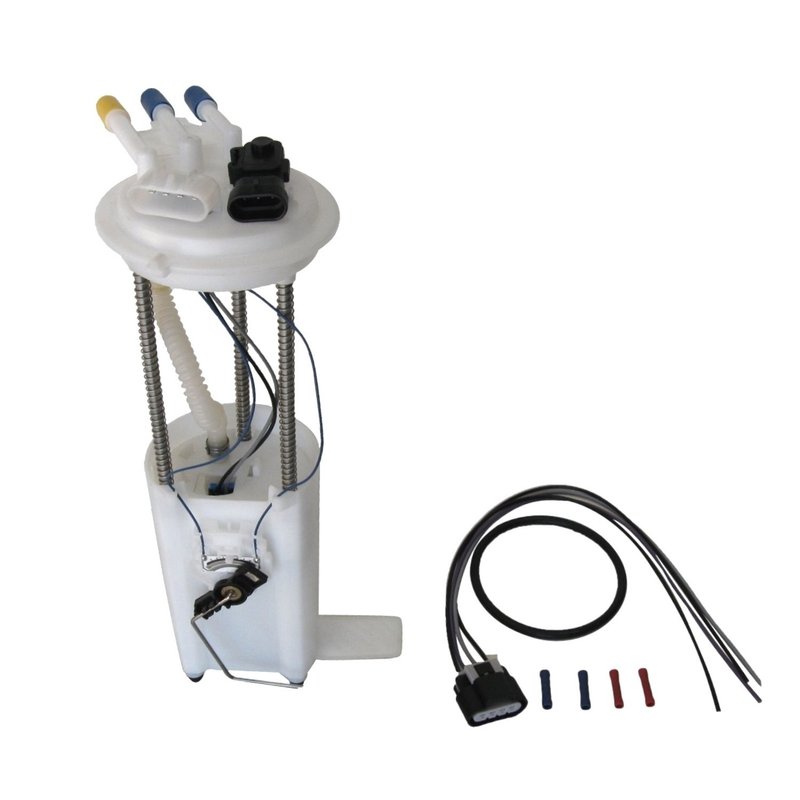

Autobest F2936A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2936A

The Autobest Fuel Pump Module Assembly F2936A is designed for reliable fuel delivery in select Chevrolet, GMC, and Oldsmobile vehicles. This in-tank fuel pump module supports consistent fuel pressure and flow, ensuring optimal engine performance for models like the Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada.

• Average current draw of 8.5 amps for efficient operation
• Fuel flow rating of 41 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Equipped with a male rectangular connector, single connector quantity
• Quick connect inlet (5/16") and outlet (3/8") for easy installation
• Includes NBR gasket/seal for secure fitment
• Constructed with durable POM housing material
• Designed for in-tank installation with pressure range between 87 and 145 PSI

Detailed Product Description

The Autobest F2936A fuel pump module assembly is engineered to meet the fuel delivery requirements of Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada vehicles. This module features an average flow rating of 41 GPH, providing consistent fuel supply to the engine under various operating conditions. The pump operates at an average current draw of 8.5 amps, balancing performance and electrical efficiency.

Included in the assembly are the fuel sending unit and fuel tank pressure sensor, which work together to monitor fuel levels and pressure accurately. The module uses a male rectangular connector with a single connection point, simplifying electrical integration. The quick connect inlet and outlet fittings (5/16" and 3/8" respectively) facilitate straightforward installation without the need for specialized tools.

Constructed with a POM housing and sealed with an NBR gasket, this fuel pump module is designed for durability and leak resistance. It operates within a pressure range of 87 to 145 PSI, suitable for regular grade fuel systems. This assembly is intended for in-tank installation, ensuring proper fuel delivery and system integrity.

Common Applications and Issues Addressed

• Restores proper fuel pressure in Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada
• Resolves fuel delivery interruptions caused by failing pump modules
• Corrects inaccurate fuel level readings due to faulty sending units
• Eliminates fuel tank pressure sensor malfunctions affecting engine performance
• Prevents fuel leaks with included NBR gasket and secure housing

Installation Notes and Tips

The Autobest F2936A fuel pump module assembly is designed for direct replacement in compatible vehicles. No special mounting hardware is included, so retain original components if possible. The quick connect fittings simplify hose connections, but ensure all connections are secure to prevent leaks. Verify electrical connector polarity and fit before final installation. No specific installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet OEM specifications for fit and function. The product is available to order and includes a gasket or seal made from NBR material to ensure a proper seal. While specific warranty details are not provided, Autobest products typically undergo quality control testing to ensure reliability and durability in automotive fuel delivery applications.
