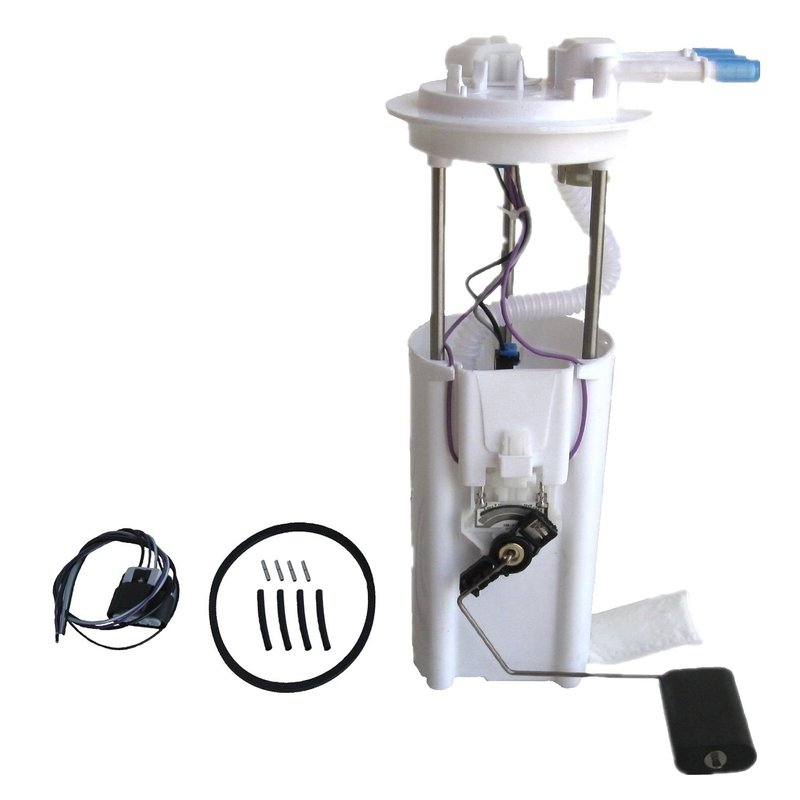

Autobest F2946A Fuel Pump Module Assembly

Fuel Pump Module Assembly for Cadillac

The Autobest F2946A fuel pump module assembly is built for direct replacement service in select 1997 Cadillac DeVille, Eldorado, and Seville applications. It includes the pump and module components needed for a complete in-tank fuel delivery repair, with ethanol-tolerant materials for modern fuel blends.

Key Features

• In-tank fuel pump module assembly with turbine pump design
• Average flow rating of 41 GPH and average current draw of 8.5A
• Operating pressure range of 87 to 145 PSI
• Includes fuel sending unit, strainer, gasket/seal, and wire harness
• Quick-connect inlet and outlet for service-friendly installation
• Male connector with 4-pin terminal layout
• Built with top-grade components and tested throughout manufacturing
• Limited lifetime warranty from Autobest

Detailed Description

Autobest F2946A is a fuel pump module assembly for 1997 Cadillac DeVille, 1997 Cadillac Eldorado, and 1997 Cadillac Seville models. This in-tank unit is engineered with a turbine-style pump, POM housing, NBR seal material, and a 12V electrical setup to support stable fuel delivery. The assembly also includes the fuel sending unit and strainer, helping restore fuel level reporting and fuel system operation in one service part. This part cross-references Bosch 67342 and Delphi FG0096 for the same application.

Common Repair Uses

• Restores fuel pressure when the original pump is weak or failing
• Addresses hard-start or no-start conditions caused by fuel delivery loss
• Corrects inaccurate fuel gauge readings from a worn sending unit
• Replaces a noisy or inconsistent in-tank pump module
• Helps resolve drivability issues tied to restricted fuel flow

Installation Notes and Tips

Verify the connector style, inlet and outlet sizes, and tank configuration before installation. Replace the tank seal during service and inspect the fuel lines, electrical connector, and tank opening for wear or contamination. This module uses a quick-connect inlet and outlet, and the included wire harness supports a cleaner replacement process on the Cadillac DeVille, Eldorado, and Seville.

Quality Assurance

Autobest states that only top-quality materials are used and that each fuel pump is tested at multiple stages during manufacturing. The F2946A is supplied with a limited lifetime warranty for added confidence in long-term service.
