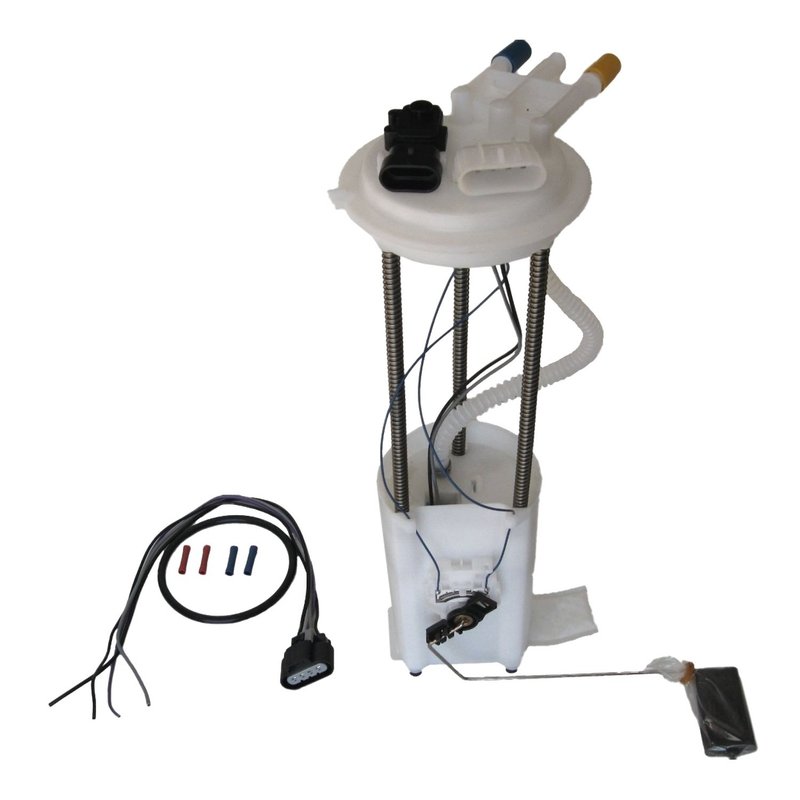

Autobest F2958A Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Autobest F2958A fuel pump module assembly is designed specifically for Chevrolet and GMC trucks including C1500, C2500, C3500, K1500, K2500, and K3500 models. This in-tank fuel pump module ensures consistent fuel delivery with a flow rating of 140 gallons per hour and supports optimal engine performance.

• Average current draw of 9 amps for efficient power consumption
• Fuel sending unit and fuel tank pressure sensor included for accurate fuel level and pressure monitoring
• Constructed with durable POM housing and NBR gasket for reliable sealing
• Quick connect inlet (5/16") and outlet (3/8") fittings with male rectangular connector
• Designed for in-tank installation with a maximum pump pressure of 108 PSI and minimum of 80 PSI
• Compatible with Chevrolet and GMC C1500, C2500, C3500, K1500, K2500, and K3500 trucks

Detailed Product Features and Specifications

The Autobest F2958A fuel pump module assembly is engineered to meet the fuel delivery requirements of select Chevrolet and GMC truck models. It features a single male rectangular connector and quick connect fittings for both inlet and outlet, simplifying installation and ensuring secure connections. The module includes a fuel sending unit and a fuel tank pressure sensor, providing accurate fuel level readings and pressure data to the vehicle’s fuel management system. The housing is made from POM material, known for its strength and chemical resistance, while the included NBR gasket ensures a tight seal to prevent leaks. Operating within a pressure range of 80 to 108 PSI, this fuel pump module supports steady fuel flow at 140 GPH, maintaining engine efficiency under various driving conditions.

Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet and GMC C/K series trucks
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel sending units
• Addresses fuel delivery interruptions from damaged or worn pump modules
• Restores proper fuel tank pressure sensor function to maintain engine performance

Installation Notes and Tips

The Autobest F2958A is designed for in-tank installation and includes the necessary gasket for sealing. It features quick connect fittings for both inlet and outlet lines, which simplifies the connection process. No mounting hardware is included, so ensure existing hardware is in good condition or replaced as needed. The module’s single male rectangular connector should be securely connected to the vehicle’s wiring harness. No special installation warnings are noted, but it is recommended to follow vehicle-specific service manuals for safe and proper installation procedures.

Quality Assurance and Warranty Information

Manufactured in China, the Autobest F2958A fuel pump module assembly is available to order and meets regular grade standards for fuel delivery components. The product includes a fuel sending unit, fuel tank pressure sensor, and gasket, ensuring a complete module replacement. While specific warranty details are not provided, Autobest products typically adhere to industry quality standards. Buyers should verify warranty coverage with the distributor or retailer at the time of purchase.
