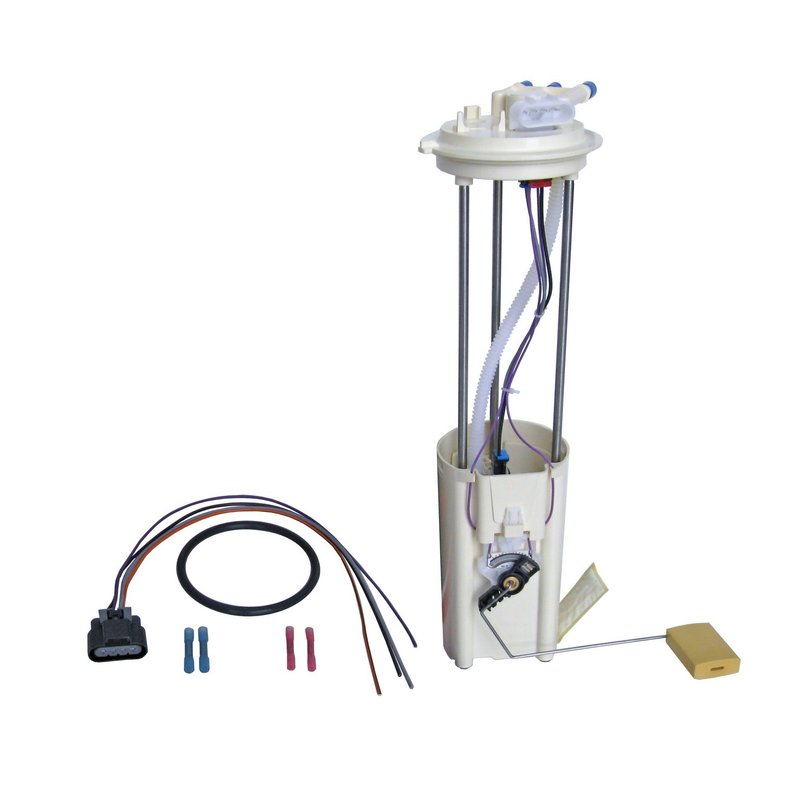

Autobest F2967A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2967A

The Autobest Fuel Pump Module Assembly F2967A is designed specifically for Chevrolet and GMC C3500 and K3500 models. This in-tank fuel pump module ensures reliable fuel delivery with precise pressure control and integrated fuel sending unit functionality.

• Average current draw of 11 amps for efficient operation
• Fuel flow rating of 41 gallons per hour (GPH)
• Includes fuel sending unit and NBR gasket for secure sealing
• Quick connect inlet (5/16") and outlet (3/8") for easy installation
• Rectangular male connector with one connection point
• Constructed with durable POM housing material
• Designed for in-tank installation with pressure range between 87 and 116 PSI

About the Autobest Fuel Pump Module Assembly Product Line

The Autobest Fuel Pump Module Assembly product line focuses on delivering integrated fuel pump solutions that combine the pump, sending unit, and sealing components into a single module. This approach simplifies replacement and maintenance for compatible vehicles, including Chevrolet and GMC trucks. The F2967A model exemplifies this line by providing a complete module designed for direct fitment and reliable fuel delivery performance.

Detailed Product Description

The F2967A fuel pump module assembly is engineered for Chevrolet and GMC C3500 and K3500 trucks, offering a consistent fuel flow rate of 41 GPH and operating within a pressure range of 87 to 116 PSI. Its in-tank design helps maintain optimal fuel pressure and delivery efficiency. The module includes a fuel sending unit for accurate fuel level readings and a NBR gasket to ensure a tight seal within the fuel tank. The POM housing material provides durability and resistance to fuel corrosion. The module features a single rectangular male connector and quick connect fittings for both inlet and outlet lines, facilitating straightforward installation without the need for additional mounting hardware.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet C3500 and GMC K3500 trucks
• Resolving inconsistent fuel pressure or flow problems
• Fixing inaccurate fuel level readings due to faulty sending units
• Addressing fuel leaks caused by worn or damaged gaskets
• Upgrading to a complete fuel pump module for simplified maintenance

Installation Notes and Tips

The F2967A is designed for in-tank installation with quick connect inlet and outlet fittings, allowing for efficient replacement without specialized tools. Ensure the fuel tank is properly depressurized before removal. The included NBR gasket should be inspected and replaced as needed to prevent leaks. No mounting hardware is included, so retain original components or source compatible hardware. Verify connector orientation and secure the rectangular male connector firmly to avoid electrical issues.

Quality Assurance and Warranty

The Autobest Fuel Pump Module Assembly F2967A is manufactured to meet regular grade standards and is available to order with consistent quality control. While specific warranty details are not provided, Autobest products typically adhere to industry standards for durability and performance. Confirm warranty terms with the supplier or manufacturer prior to installation.
