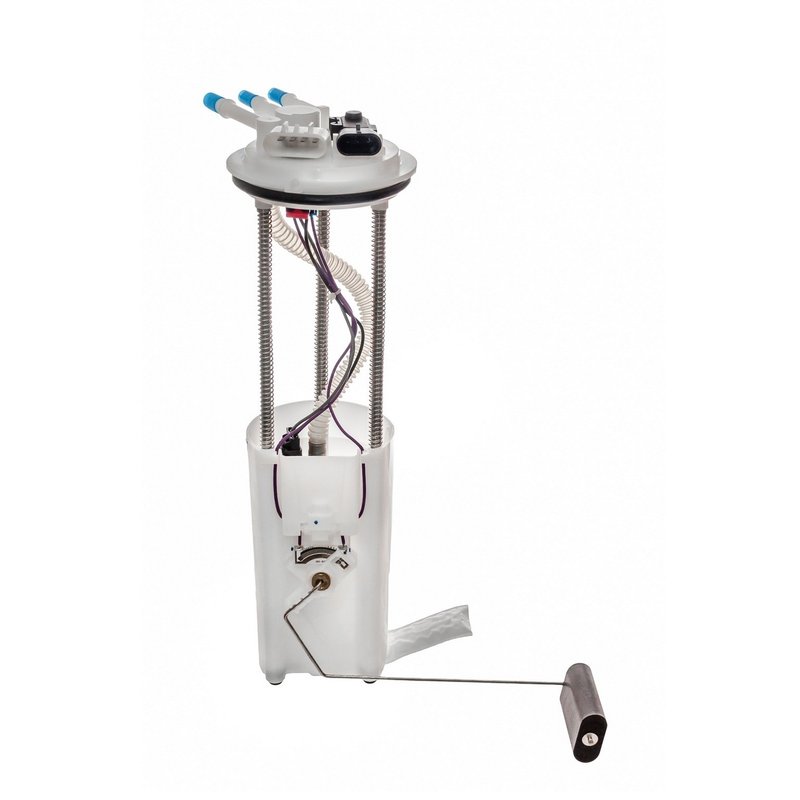

Autobest F2976A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F2976A

The Autobest Fuel Pump Module Assembly F2976A is designed specifically for Chevrolet and GMC P30 and P3500 models. This in-tank fuel pump module ensures reliable fuel delivery with integrated components to maintain optimal engine performance.

• Average current draw of 8.5 amps for efficient operation
• Fuel flow rating of 41 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Equipped with a NBR gasket/seal for secure installation
• Quick connect inlet (5/16") and outlet (3/8") fittings
• Rectangular male connector with one connection point
• Constructed with durable POM housing material
• Designed for in-tank installation with no mounting hardware included
• Maximum pump pressure of 145 PSI and minimum of 87 PSI

Detailed Product Description

The Autobest F2976A fuel pump module assembly is engineered to meet the fuel delivery requirements of Chevrolet and GMC P30 and P3500 vehicles. Featuring an average flow rating of 41 GPH, this module supports consistent fuel supply under varying engine loads. The integrated fuel sending unit and fuel tank pressure sensor provide accurate fuel level readings and pressure monitoring, essential for maintaining engine efficiency and emissions control.

Its POM housing material offers chemical resistance and durability within the fuel tank environment. The included NBR gasket ensures a tight seal to prevent leaks. The module’s electrical connector is a single rectangular male type, simplifying wiring connections. Quick connect fittings on both inlet and outlet facilitate straightforward hose attachment during installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet P30
• GMC P30
• Chevrolet P3500
• GMC P3500

It is designed to replace original equipment fuel pump modules in these models, addressing issues related to fuel delivery and sensor functionality.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sending unit
• Fuel tank pressure sensor malfunctions affecting engine performance
• Leaks caused by worn or damaged gaskets and seals
• Reduced fuel pump efficiency leading to poor engine power

Installation Notes and Tips

The Autobest F2976A is designed for in-tank installation and includes the pump and module assembly with gasket. No mounting hardware is included, so reusing existing hardware or sourcing separately may be necessary. The quick connect inlet and outlet fittings simplify hose connections, but ensure proper seating to avoid leaks. The rectangular male connector requires matching female wiring harness connectors for proper electrical connection. No special installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

Manufactured in China, the Autobest F2976A fuel pump module assembly meets regular grade standards for fuel delivery components. It is available to order and backed by Autobest’s quality control processes. The product includes a NBR gasket for sealing and is constructed with durable materials to withstand typical operating conditions. Warranty details should be confirmed at the point of purchase.
