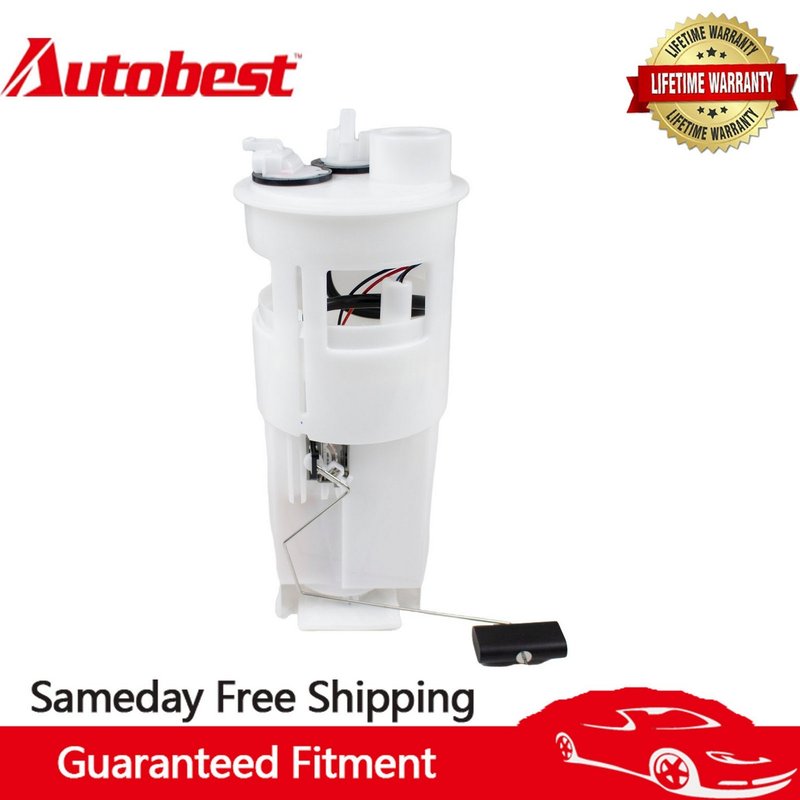

Autobest F3058A Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Trucks

The Autobest F3058A fuel pump module assembly is designed specifically for Dodge D150, D250, D350, Ramcharger, W150, W250, and W350 models. This in-tank fuel pump module ensures consistent fuel delivery with a flow rating of 46.3 gallons per hour, supporting optimal engine performance.

• Average current draw of 8 amps for efficient operation
• Includes fuel sending unit and FKM gasket for secure sealing
• In-tank design with internal strainer and 0.504 inch inlet size
• Single female rectangular connector and quick connect outlet (3/8 inch)
• Maximum pump pressure of 116 PSI and minimum pressure of 87 PSI
• Durable POM housing material for long-lasting use

Technical Details and Specifications

The Autobest F3058A fuel pump module assembly features a robust POM housing and an internal strainer inlet type to protect the fuel system from contaminants. It operates within a pressure range of 87 to 116 PSI, delivering a steady fuel flow of 46.3 GPH. The module includes a fuel sending unit for accurate fuel level readings and an FKM gasket to ensure a reliable seal within the fuel tank. The electrical connector is a single female rectangular type, designed for secure and straightforward installation. This module is intended for in-tank mounting and does not include a fuel filter or tank pressure sensor.

Compatible Dodge Models and Applications

This fuel pump module assembly is compatible with a range of Dodge trucks, including the D150, D250, D350, Ramcharger, W150, W250, and W350. It is engineered to meet the fuel delivery requirements of these vehicles, making it a suitable replacement part for maintaining proper fuel system function and engine performance.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses inaccurate fuel level readings by replacing the sending unit
• Eliminates fuel pump noise caused by worn or failing modules
• Prevents low fuel pressure problems that affect engine power
• Helps avoid fuel system leaks with included FKM gasket seal

Installation Notes and Tips

The F3058A fuel pump module assembly is designed for in-tank installation with no special mounting hardware included. Ensure the fuel tank is properly drained and depressurized before removal. The single female rectangular connector and quick connect outlet simplify electrical and fuel line connections. Verify the gasket is seated correctly to prevent leaks. No specific installation warnings are noted, but following manufacturer guidelines and safety precautions is recommended.

Quality Assurance and Warranty

Manufactured by Autobest, this fuel pump module assembly meets regular grade standards and is available to order. The product is made in China with quality materials including a POM housing and FKM gasket. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable performance in compatible Dodge trucks.
