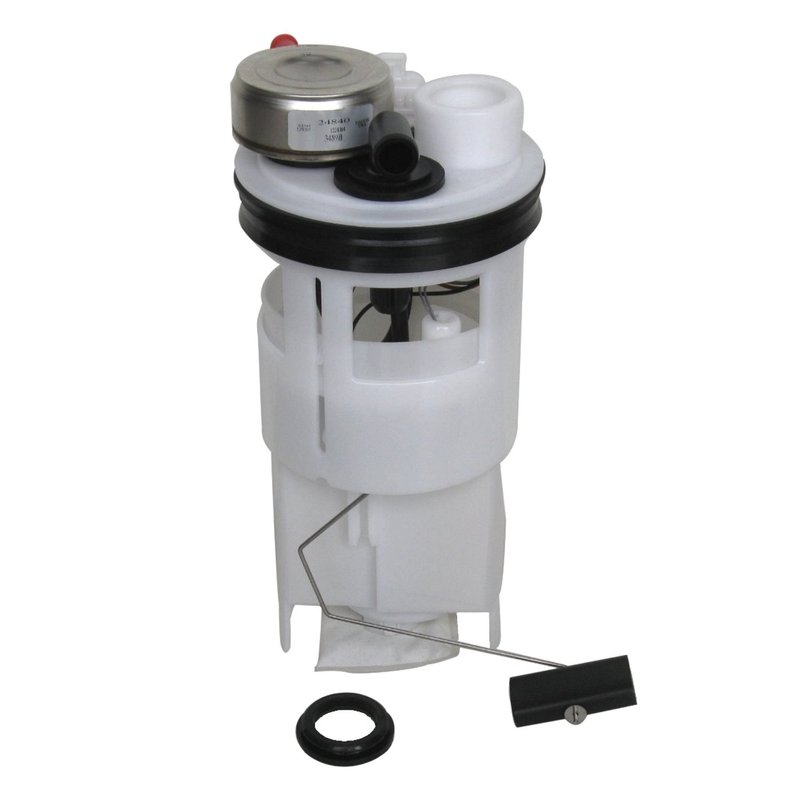

Autobest F3074A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3074A

The Autobest Fuel Pump Module Assembly F3074A is designed for reliable fuel delivery in Dodge B150, B250, B350, B1500, B2500, and B3500 models. This in-tank fuel pump module ensures consistent fuel flow and pressure to maintain engine performance.

• Average current draw: 9.5 Amps
• Average flow rating: 46.3 gallons per hour (GPH)
• Connector: 1 female rectangular connector
• Includes fuel sending unit and FKM gasket/seal
• Housing material: POM (Polyoxymethylene)
• Inlet size: 0.433 inches with internal strainer
• Outlet: single 3/8 inch quick connect
• Maximum pump pressure: 44.1 PSI; minimum pump pressure: 40 PSI
• Designed for in-tank installation

Technical Details and Features

The F3074A fuel pump module assembly from Autobest is engineered with a durable POM housing and includes an internal strainer to protect the fuel system from contaminants. The module comes with a fuel sending unit for accurate fuel level readings and an FKM gasket to ensure a secure seal within the fuel tank. Its single female rectangular connector simplifies electrical connections, while the quick connect outlet facilitates efficient fuel line attachment. Operating within a pressure range of 40 to 44.1 PSI, this pump maintains steady fuel delivery at an average flow rate of 46.3 GPH, drawing 9.5 amps during operation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Dodge B150, B250, B350, B1500, B2500, and B3500 trucks. It is specifically designed for in-tank installation, making it suitable for fuel system repairs or replacements in these models.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses inaccurate fuel level readings due to faulty sending units
• Replaces worn or damaged fuel pump modules to restore proper pressure
• Eliminates fuel leaks with included FKM gasket seal
• Improves overall fuel system reliability and performance

Installation Notes and Tips

The Autobest F3074A fuel pump module assembly is designed for straightforward in-tank installation without special mounting hardware included. Ensure the fuel tank is properly drained and cleaned before installation. Verify connector orientation and secure the female rectangular connector firmly. Use caution when handling the FKM gasket to maintain its sealing integrity. No specific installation warnings are noted, but following manufacturer guidelines is recommended for safety and optimal performance.

Quality Assurance and Warranty

Manufactured in China, the Autobest F3074A fuel pump module assembly meets regular grade standards for fuel delivery components. It includes a fuel sending unit and gasket to provide a complete module solution. The product is available to order and backed by Autobest's quality control processes. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
