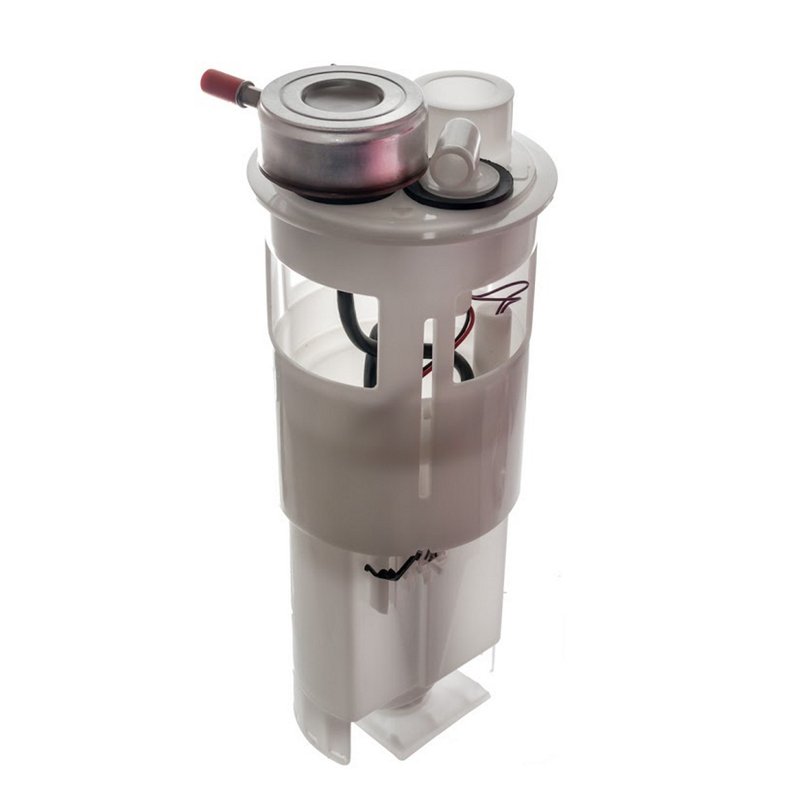

Autobest F3096A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3096A

The Autobest Fuel Pump Module Assembly F3096A is designed specifically for Dodge Dakota models, providing reliable in-tank fuel delivery. Engineered to meet regular grade specifications, this fuel pump module ensures consistent fuel flow and pressure for optimal engine performance.

• Average current draw: 8 Amps for efficient power consumption
• Fuel flow rating: 33.1 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket for secure sealing
• In-tank design with internal strainer for clean fuel intake
• Connector: single female rectangular type for straightforward installation
• Maximum pump pressure: 108.75 PSI; minimum pump pressure: 79.75 PSI
• Housing made from durable POM material
• Outlet size: 3/8 inch quick connect for compatibility with fuel lines

Detailed Product Description

The Autobest F3096A fuel pump module assembly is an in-tank unit designed to deliver consistent fuel pressure and flow to the engine of Dodge Dakota vehicles. With an average flow rating of 33.1 GPH and a pressure range between 79.75 and 108.75 PSI, this module supports stable fuel delivery under various operating conditions. The assembly includes a fuel sending unit for accurate fuel level readings and an FKM gasket to ensure a reliable seal within the fuel tank. The internal strainer prevents contaminants from entering the fuel system, helping maintain engine performance and longevity. The pump’s housing is constructed from POM, a material known for its strength and chemical resistance, suitable for long-term use in fuel environments.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Dodge Dakota models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Addresses inaccurate fuel level readings due to faulty sending units
• Prevents fuel delivery interruptions caused by clogged or damaged strainers
• Eliminates fuel leaks by providing a secure FKM gasket seal

Installation Notes and Tips

The Autobest F3096A fuel pump module assembly is designed for direct replacement in Dodge Dakota fuel tanks. It features a single female rectangular connector and a quick connect outlet for ease of installation. No mounting hardware is included, so reusing existing components or sourcing compatible hardware may be necessary. The internal strainer and fuel sending unit are pre-installed, reducing assembly time. No special installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet regular grade standards and is available to order with consistent quality control. The product includes an FKM gasket for reliable sealing and is built with durable materials such as POM housing. Warranty details should be confirmed with the point of purchase, but Autobest products typically come with coverage against manufacturing defects to ensure dependable operation in Dodge Dakota vehicles.
