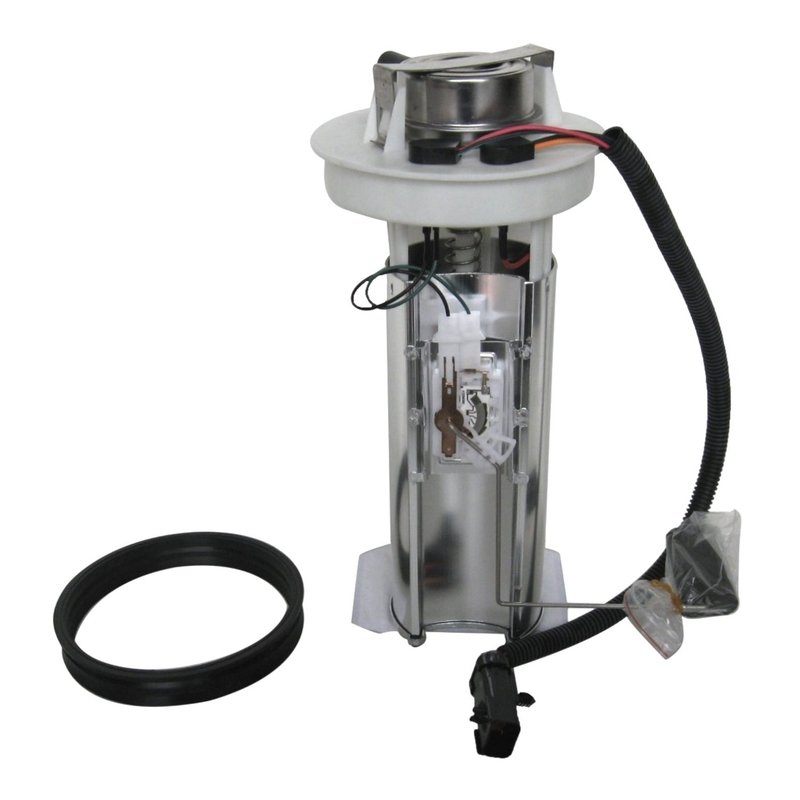

Autobest F3114A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3114A

The Autobest Fuel Pump Module Assembly F3114A is designed specifically for Jeep Grand Cherokee models, providing reliable in-tank fuel delivery. Engineered with performance-grade materials, this fuel pump module ensures consistent fuel flow and pressure for optimal engine operation.

• Average current draw of 6 amps for efficient power consumption
• Fuel flow rating of 29 gallons per hour (GPH) to meet engine demands
• Includes fuel sending unit and NBR gasket for accurate fuel level readings and secure sealing
• Constructed with an aluminum housing for durability and heat resistance
• Equipped with both internal and external strainers to protect the fuel system
• Compatible with Jeep Grand Cherokee fuel systems requiring a male rectangular connector
• Maximum pump pressure of 100 PSI and minimum of 80 PSI for stable fuel delivery
• Inlet size of 0.433 inches with strainer type inlet and quick connect 3/8 inch outlet

Technical Details and Features

The F3114A fuel pump module assembly from Autobest is an in-tank unit designed to replace the original equipment in Jeep Grand Cherokee vehicles. It features a single male rectangular connector and a single quick connect outlet, simplifying installation and ensuring proper fitment. The module includes a fuel sending unit, which provides accurate fuel level data to the vehicle’s gauge, and a NBR gasket to maintain a secure seal within the fuel tank. The aluminum housing offers resistance to corrosion and heat, supporting long-term durability under demanding conditions. Both internal and external strainers are integrated to filter contaminants and protect the fuel system components.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Jeep Grand Cherokee models requiring a performance-grade in-tank fuel pump. It is designed to maintain proper fuel pressure and flow, supporting engine performance and drivability.

• Resolves fuel delivery issues such as engine hesitation or stalling
• Replaces faulty fuel sending units causing inaccurate fuel gauge readings
• Addresses fuel pump failures resulting in no-start conditions
• Eliminates fuel leaks by providing a secure gasket seal
• Improves fuel system filtration with dual strainers to prevent clogging

Installation Notes and Tips

The Autobest F3114A fuel pump module assembly is designed for direct replacement with no special installation warnings. Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical hazards. Verify connector compatibility and secure all fittings to avoid fuel leaks. Since mounting hardware is not included, reuse existing hardware or source appropriate fasteners. Properly seat the NBR gasket to maintain a tight seal within the fuel tank.

Quality Assurance and Warranty

Manufactured in China, the Autobest F3114A fuel pump module assembly meets performance-grade standards for fuel delivery components. The product is available to order and includes a fuel sending unit and gasket for comprehensive replacement. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable operation in compatible Jeep Grand Cherokee vehicles.
