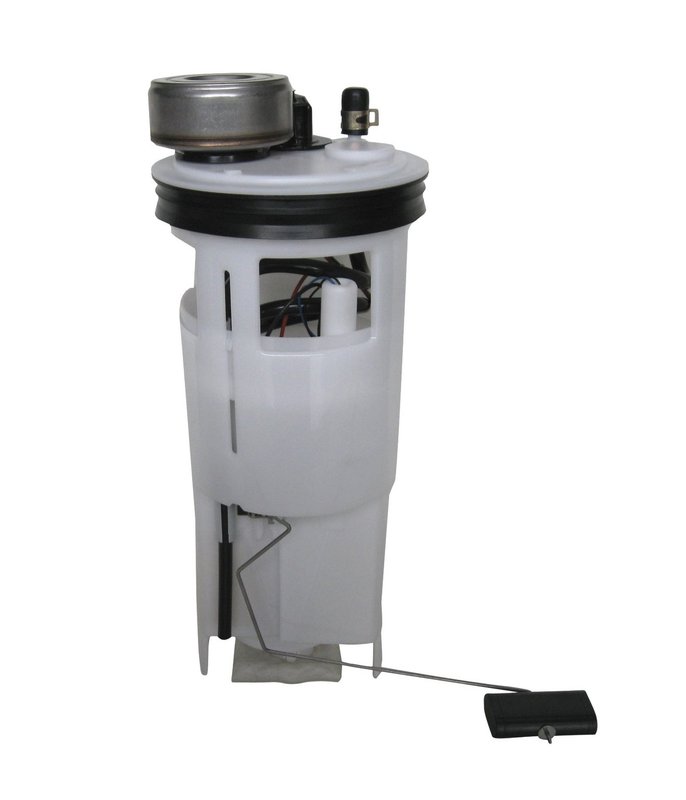

Autobest F3122A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3122A

The Autobest Fuel Pump Module Assembly F3122A is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This in-tank fuel pump module ensures reliable fuel delivery with precise pressure control and integrated fuel sending unit for accurate fuel level readings.

• Average current draw of 9.5 amps for efficient power consumption
• Fuel flow rating of 45 gallons per hour (GPH) to meet engine demands
• Includes fuel sending unit and FKM gasket for secure sealing
• In-tank design with internal strainer and 0.433 inch inlet size
• Quick connect 3/8 inch outlet for easy installation
• Housing made from durable POM material
• Compatible with Dodge Ram 1500, 2500, and 3500

Technical Details and Specifications

The Autobest F3122A fuel pump module assembly operates within a pump pressure range of 48.7 to 52.8 PSI, ensuring consistent fuel delivery under various driving conditions. The module features a female rectangular connector with one connection point, designed for secure electrical integration. The internal strainer inlet type helps prevent debris from entering the fuel system, enhancing longevity. The included FKM gasket provides a reliable seal to prevent leaks, while the POM housing material offers resistance to fuel and environmental factors. This module does not include a fuel filter or tank pressure sensor but comes with the necessary fuel sending unit for accurate fuel level monitoring.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Dodge models:

• Dodge Ram 1500
• Dodge Ram 2500
• Dodge Ram 3500

It is designed for use in the fuel delivery system to maintain proper fuel pressure and flow, critical for engine performance and efficiency.

Common Issues Addressed by the F3122A Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sending unit
• Low fuel pressure causing engine hesitation or stalling
• Fuel pump noise or overheating from inefficient operation
• Leaks caused by worn or damaged gaskets

Installation Notes and Tips

The Autobest F3122A is an in-tank fuel pump module assembly designed for direct replacement. It includes the fuel pump and sending unit but does not come with mounting hardware, so retain original components if possible. The quick connect 3/8 inch outlet and female rectangular connector simplify electrical and fuel line connections. No special installation warnings are noted, but ensure the fuel system is depressurized before removal. Proper gasket installation is critical to prevent leaks; the included FKM gasket should be seated carefully.

Quality Assurance and Warranty

Autobest fuel pump modules are manufactured to meet OEM specifications, ensuring compatibility and performance. The F3122A is currently available to order and includes a gasket for sealing integrity. While specific warranty details are not provided here, Autobest products typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the supplier at the time of purchase.
