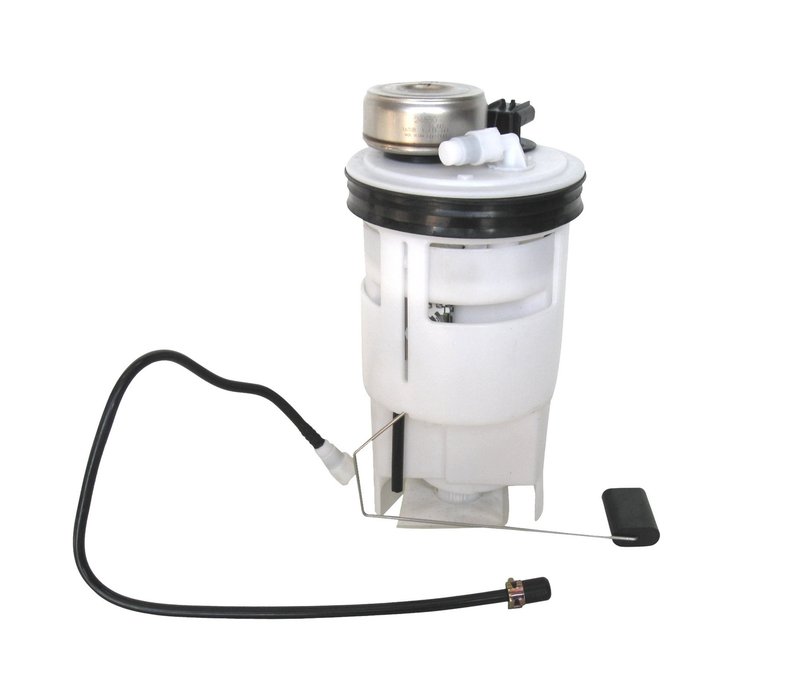

Autobest F3134A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3134A

The Autobest Fuel Pump Module Assembly F3134A is designed for reliable fuel delivery in select Dodge vehicles. Engineered to meet the demands of Dodge B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van models, this in-tank fuel pump module ensures consistent performance and compatibility.

• Average current draw of 8.5 amps for efficient operation
• Fuel flow rating of 39.7 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket for secure sealing
• Female rectangular connector with one connection point
• In-tank design with internal strainer inlet type
• Maximum pump pressure of 52.8 PSI and minimum pressure of 48.7 PSI
• Constructed with durable POM housing material
• Quick connect outlet with 3/8 inch size for easy installation

Technical Details and Specifications

The Autobest F3134A fuel pump module assembly features a POM housing that provides durability and resistance to fuel corrosion. Its internal strainer inlet type with a 0.433 inch inlet size helps prevent debris from entering the fuel system. The module includes a fuel sending unit for accurate fuel level readings and an FKM gasket to ensure a tight seal within the fuel tank. The female rectangular connector with a single connection point simplifies wiring compatibility. Designed for in-tank installation, this module operates with an average current draw of 8.5 amps and delivers a fuel flow rate of 39.7 GPH, maintaining fuel pressure between 48.7 and 52.8 PSI to support engine performance.

Compatible Dodge Models and Applications

This fuel pump module assembly is compatible with the following Dodge vehicles:

• Dodge B1500
• Dodge B2500
• Dodge B3500
• Dodge Ram 1500 Van
• Dodge Ram 2500 Van
• Dodge Ram 3500 Van

Use the Autobest F3134A to replace worn or failing fuel pump modules in these models to restore proper fuel delivery and maintain engine efficiency.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sending unit
• Fuel pressure fluctuations affecting engine performance
• Fuel pump noise or failure from worn internal components
• Leaks or poor sealing within the fuel tank assembly

Installation Notes and Tips

The Autobest F3134A is designed for in-tank installation with no special mounting hardware included. Ensure the fuel tank is properly drained and depressurized before removal. The included FKM gasket should be inspected and replaced as needed to prevent leaks. The female rectangular connector allows for straightforward electrical connection. No installation warnings are specified, but following manufacturer guidelines and safety precautions is recommended.

Quality Assurance and Warranty

Manufactured in China, the Autobest F3134A fuel pump module assembly meets regular grade standards for automotive fuel delivery components. It includes a fuel sending unit and gasket to provide a complete replacement solution. Availability status is current, and the product is ready to order. Warranty details should be confirmed with the distributor or retailer, as they may vary.
