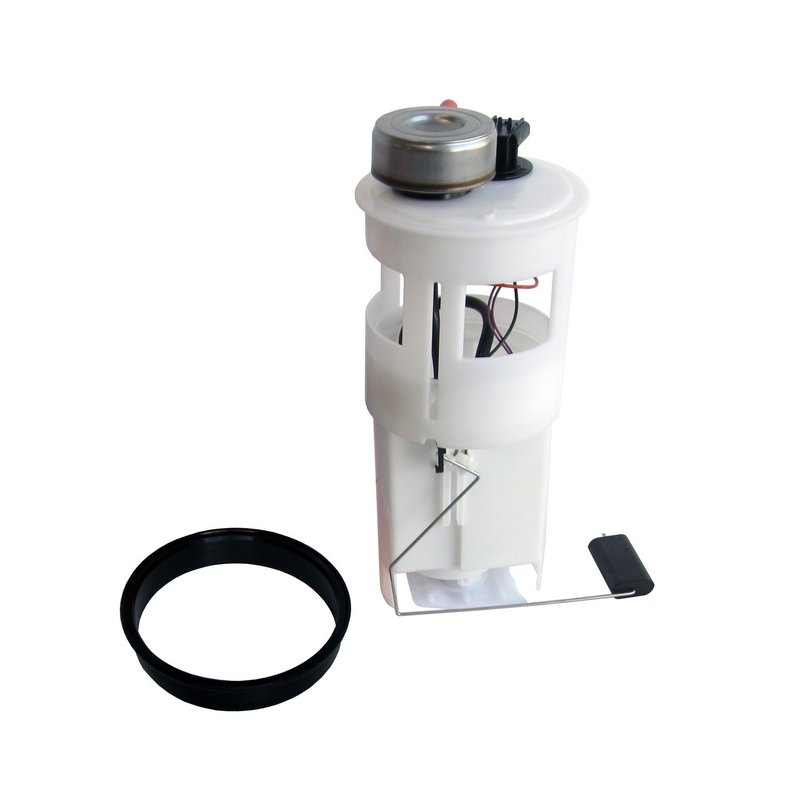

Autobest F3135A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3135A

The Autobest Fuel Pump Module Assembly F3135A is designed for reliable fuel delivery in select Dodge vehicles. Engineered as an in-tank fuel pump, it supports consistent fuel flow and pressure to maintain engine performance in Dodge B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van models.

• Average current draw of 8 amps for efficient operation
• Fuel flow rating of 35.7 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket for secure sealing
• In-tank design with internal strainer inlet type
• Compatible female rectangular connector with one outlet quick connect fitting
• Maximum pump pressure of 52.8 PSI and minimum pressure of 48.7 PSI
• Durable POM housing material

Technical Details and Specifications

The Autobest F3135A fuel pump module assembly features a robust POM housing and an internal strainer inlet sized at 0.433 inches to ensure clean fuel delivery. It operates with an average current draw of 8 amps and delivers a steady flow rate of 35.7 GPH, suitable for maintaining optimal fuel pressure between 48.7 and 52.8 PSI. The module includes a fuel sending unit for accurate fuel level readings and an FKM gasket to prevent leaks. The connector is female with a rectangular shape, designed for a single connection point, and the outlet uses a 3/8 inch quick connect fitting for secure fuel line attachment. This assembly is manufactured in China and is intended for in-tank installation without the need for additional mounting hardware.

Compatible Dodge Models and Applications

This fuel pump module assembly is compatible with the following Dodge vehicles:

• Dodge B1500
• Dodge B2500
• Dodge B3500
• Dodge Ram 1500 Van
• Dodge Ram 2500 Van
• Dodge Ram 3500 Van

It is designed to replace the original fuel pump module in these models, ensuring proper fuel delivery and accurate fuel level monitoring.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel gauge readings due to faulty sending unit
• Low fuel pressure causing engine performance issues
• Fuel pump noise or overheating from inefficient operation
• Leaks caused by worn or damaged gaskets

Installation Notes and Tips

The Autobest F3135A is designed for in-tank installation and includes the necessary gasket for sealing. No mounting hardware is included, so reuse existing hardware or source compatible parts as needed. The connector is female and rectangular, with a single connection point, so ensure compatibility with your vehicle’s wiring harness. No special installation warnings are noted, but standard safety precautions when working with fuel systems should be followed.

Quality Assurance and Warranty

This fuel pump module assembly is classified as a regular grade replacement part. It is available to order and meets OEM specifications for fit and function. The product includes a fuel sending unit and FKM gasket to maintain sealing integrity. Warranty details should be confirmed with the distributor or retailer, as they may vary.
