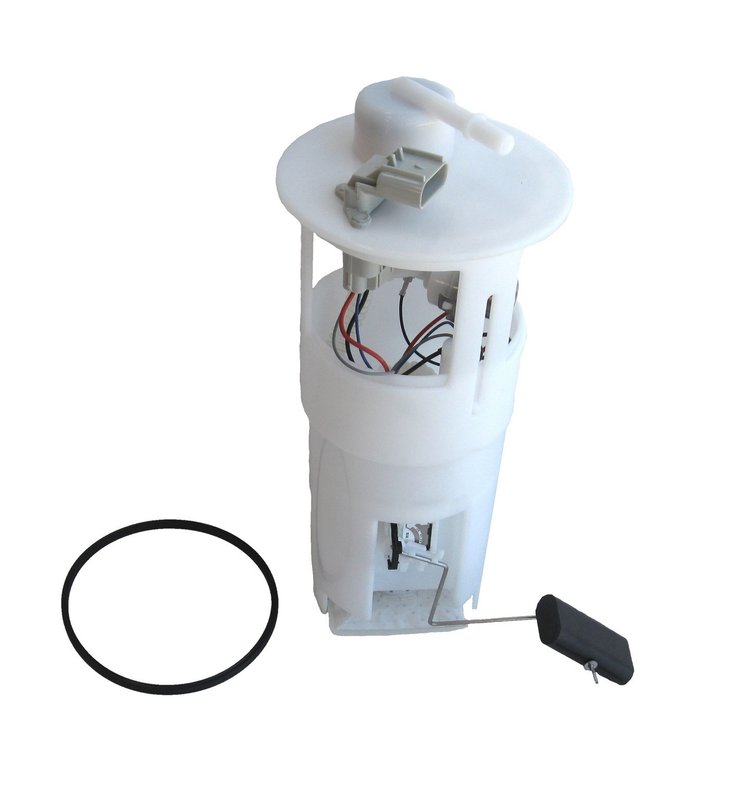

Autobest F3163A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3163A

The Autobest Fuel Pump Module Assembly F3163A is designed specifically for Chrysler and Dodge vehicles, including models like the 300M, Concorde, Intrepid, and LHS. This in-tank fuel pump module ensures reliable fuel delivery with precise flow and pressure ratings tailored to your vehicle's requirements.

• Average current draw: 5.5 Amps for efficient power consumption
• Average flow rating: 17.2 gallons per hour (GPH)
• Includes fuel sending unit and FKM gasket for secure sealing
• Connector: single female rectangular type for straightforward installation
• Inlet size: 0.504 inches with internal strainer for fuel filtration
• Outlet: one quick connect fitting sized at 3/8 inch
• Housing made from durable POM material
• Designed for in-tank installation with no mounting hardware included
• Maximum pump pressure: 58 PSI; minimum pump pressure: 55.1 PSI

About the Autobest Fuel Pump Module Assembly Line

The Autobest Fuel Pump Module Assembly line focuses on delivering integrated fuel pump solutions that combine the pump, sending unit, and sealing components into a single module. This approach simplifies replacement and ensures compatibility with specific vehicle fuel systems. The F3163A model exemplifies this line by including a fuel sending unit and FKM gasket, providing a complete assembly for Chrysler and Dodge applications.

Detailed Product Description

The F3163A fuel pump module assembly is engineered for in-tank installation, featuring a POM housing that offers durability and resistance to fuel exposure. Its internal strainer inlet helps protect the pump from contaminants, while the included fuel sending unit provides accurate fuel level readings. The module operates within a pressure range of 55.1 to 58 PSI, maintaining consistent fuel delivery to the engine. The single female rectangular connector and quick connect outlet simplify electrical and fuel line connections, reducing installation complexity.

Common Applications and Problem Resolution

• Replacement for failing or noisy fuel pumps in Chrysler 300M, Dodge Intrepid, Concorde, and LHS
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Addresses inaccurate fuel level readings due to faulty sending units
• Eliminates fuel leaks by providing a new FKM gasket seal
• Improves fuel delivery efficiency and engine performance

Installation Notes and Tips

This fuel pump module assembly is designed for direct replacement in compatible Chrysler and Dodge models. No mounting hardware is included, so retain original components if possible. The module features a female rectangular connector and a quick connect outlet for ease of installation. Ensure the fuel tank is properly drained and depressurized before removal. No specific installation warnings are noted, but following manufacturer service procedures is recommended.

Quality Assurance and Warranty

The Autobest Fuel Pump Module Assembly F3163A is manufactured to meet OEM specifications and is available to order with consistent quality standards. It includes a fuel sending unit and FKM gasket to ensure proper sealing and functionality. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to support reliable operation in Chrysler and Dodge vehicles.
