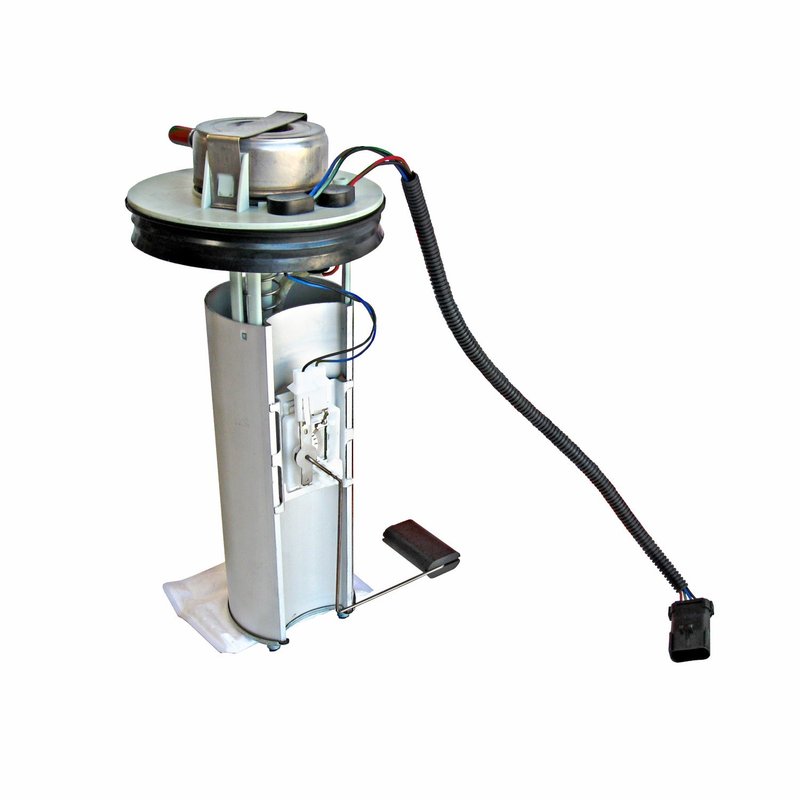

Autobest F3167A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3167A

The Autobest Fuel Pump Module Assembly F3167A is designed specifically for Jeep TJ and Wrangler models, providing reliable in-tank fuel delivery. Engineered with performance-grade materials, this fuel pump module ensures consistent fuel flow and pressure for optimal engine operation.

• Average current draw of 6.8 amps for efficient power consumption
• Fuel flow rating of 38 gallons per hour (GPH) to meet engine demands
• Includes fuel sending unit and NBR gasket for accurate fuel level readings and secure sealing
• Constructed with an aluminum housing for durability and heat resistance
• Compatible with Jeep TJ and Wrangler models
• Inlet size of 0.433 inches with both internal and external strainers for fuel filtration
• Quick connect outlet type with 3/8 inch outlet size for easy installation
• Performance grade type designed for consistent fuel pressure between 80 and 100 PSI

Detailed Product Description

The Autobest F3167A fuel pump module assembly is an in-tank unit engineered to deliver steady fuel flow and pressure to Jeep TJ and Wrangler engines. Featuring a male rectangular connector and a single connector quantity, this module integrates seamlessly with the vehicle's existing fuel system. The inclusion of a fuel sending unit allows for precise fuel level monitoring, while the NBR gasket ensures a tight seal to prevent leaks. The aluminum housing provides strength and resistance to corrosion, extending the life of the pump. Both internal and external strainers help protect the fuel system from contaminants, maintaining engine performance and reliability.

Common Applications and Problem Resolution

• Restores proper fuel delivery in Jeep TJ and Wrangler models experiencing fuel starvation
• Replaces faulty or worn fuel sending units for accurate fuel gauge readings
• Addresses inconsistent fuel pressure issues between 80 and 100 PSI
• Eliminates fuel leaks with included NBR gasket and secure sealing
• Improves engine performance by maintaining steady fuel flow at 38 GPH

Installation Notes and Tips

This fuel pump module assembly is designed for in-tank installation with no special warnings. The quick connect outlet and male rectangular connector simplify the connection process. Ensure the fuel tank is empty and depressurized before installation. The package includes the pump and module but does not include mounting hardware, so retain original hardware or source compatible fasteners. Proper sealing with the included NBR gasket is essential to prevent leaks.

Quality Assurance and Warranty

Manufactured in China, the Autobest F3167A fuel pump module assembly meets performance-grade standards for durability and reliability. It is available to order and backed by Autobest's quality control processes. Please refer to the manufacturer's warranty documentation for specific coverage details.
