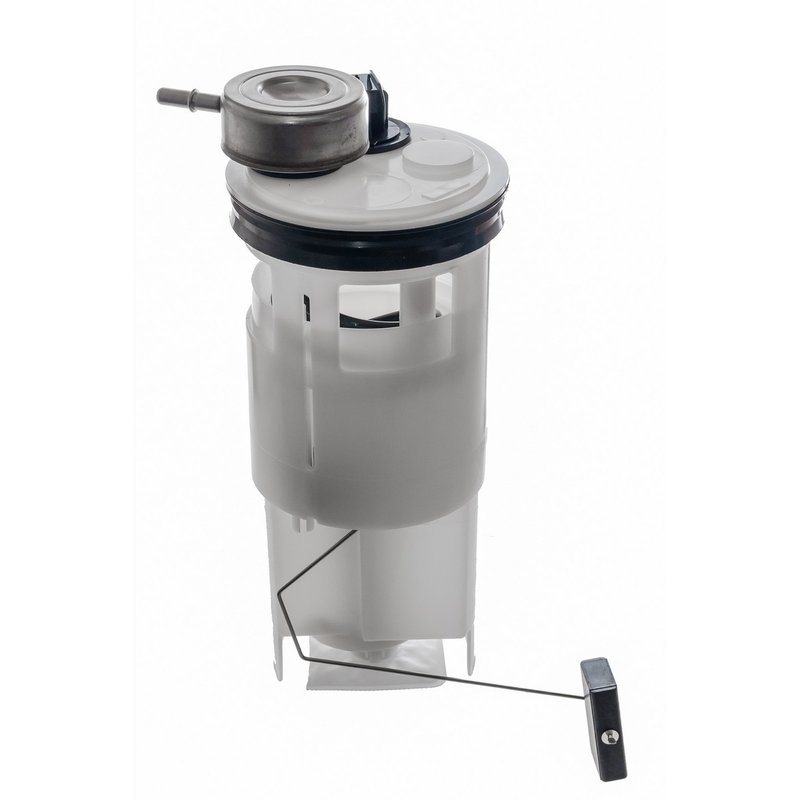

Autobest F3169A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3169A

The Autobest Fuel Pump Module Assembly F3169A is designed specifically for Dodge Ram 2500 and Ram 3500 models. This in-tank fuel pump module ensures consistent fuel delivery with reliable performance tailored to meet the demands of these heavy-duty trucks.

• Average current draw of 9.5 amps for efficient power consumption
• Fuel flow rating of 47.6 gallons per hour (GPH) to support engine requirements
• Includes fuel sending unit and FKM gasket for accurate fuel level readings and secure sealing
• Female rectangular connector with one connector for straightforward electrical connection
• Internal strainer inlet type with 0.433-inch inlet size for effective fuel filtration
• Maximum pump pressure of 52.8 PSI and minimum pressure of 48.7 PSI for stable fuel delivery
• Constructed with POM housing material for durability in the fuel tank environment
• Quick connect outlet type with 3/8-inch outlet size for easy fuel line attachment
• Compatible with Dodge Ram 2500 and Ram 3500 models

Detailed Product Description

The Autobest F3169A fuel pump module assembly is engineered as an in-tank solution, integrating the fuel pump and sending unit into a single module. This design simplifies installation and ensures accurate fuel level monitoring. The module features a female rectangular connector with one connection point, facilitating a secure and reliable electrical interface. Its internal strainer inlet type helps prevent debris from entering the fuel system, protecting the engine and fuel injectors.

With a fuel flow rating of 47.6 GPH and operating pressure between 48.7 and 52.8 PSI, this fuel pump module maintains consistent fuel delivery under various driving conditions. The POM housing material offers resistance to fuel corrosion and mechanical stress, extending the service life of the component. The included FKM gasket provides a durable seal to prevent leaks and maintain system integrity.

Compatible Vehicles and Applications

• Dodge Ram 2500 fuel pump replacement
• Dodge Ram 3500 fuel pump module upgrade
• Fuel delivery system repair for Dodge Ram 2500 and 3500
• Resolving fuel pressure inconsistencies in Dodge Ram trucks
• Replacing faulty fuel sending units in Dodge Ram 2500 and 3500

Installation Notes and Tips

This fuel pump module assembly is designed for in-tank installation and does not include mounting hardware. Ensure the fuel tank is properly drained and cleaned before installation. Handle the FKM gasket carefully to maintain its sealing properties. Verify the connector orientation and secure the quick connect outlet to prevent fuel leaks. No specific installation warnings are noted, but following manufacturer guidelines is recommended for safety and optimal performance.

Quality Assurance and Warranty

The Autobest F3169A fuel pump module assembly is manufactured to meet regular grade standards, ensuring reliable operation for Dodge Ram 2500 and Ram 3500 vehicles. The product is available to order and includes a fuel sending unit and gasket for comprehensive fuel system maintenance. Warranty details should be confirmed with the distributor or retailer at the time of purchase.
