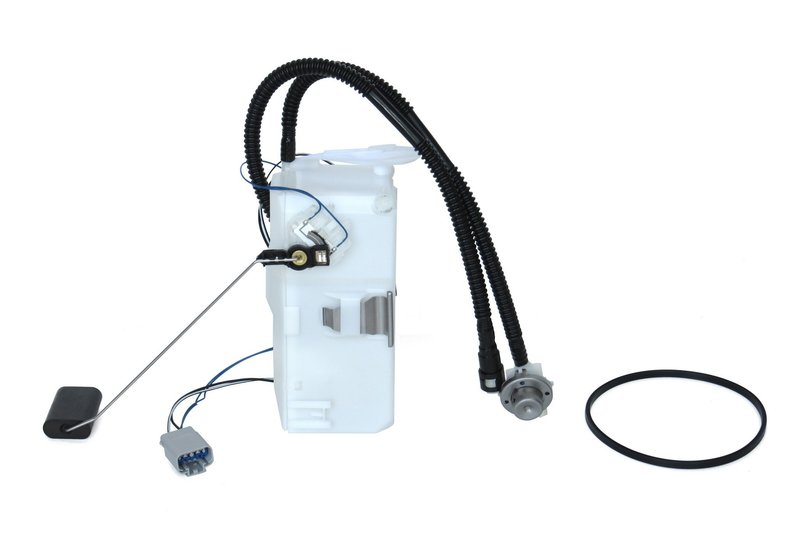

Autobest F3173A Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Jeep Liberty

The Autobest F3173A fuel pump module assembly is designed specifically for Jeep Liberty models, providing consistent fuel delivery and reliable performance. Engineered to meet regular grade specifications, this in-tank fuel pump module ensures your vehicle maintains optimal fuel pressure and flow.

• Average current draw of 7 amps for efficient power consumption
• Fuel flow rating of 35.7 gallons per hour (GPH) to support engine demands
• Includes fuel sending unit and FKM gasket for accurate fuel level readings and secure sealing
• Female rectangular connector with one connection point for straightforward installation
• Constructed with durable POM housing material and internal strainer for fuel filtration
• Designed for in-tank installation with a strainer-type inlet sized at 0.433 inches
• Maintains fuel pressure between 48.7 and 52.8 PSI for consistent engine performance
• Outlet features a 3/8 inch quick connect fitting for secure fuel line attachment

Product Details and Specifications

The Autobest F3173A fuel pump module assembly is manufactured in China and tailored for Jeep Liberty vehicles. This module includes the fuel sending unit, allowing for accurate fuel level monitoring, and comes with an FKM gasket to ensure a tight seal within the fuel tank. The pump operates with an average current draw of 7 amps and delivers a flow rate of 35.7 GPH, suitable for maintaining proper fuel supply under various driving conditions. Its POM housing material offers durability and resistance to fuel corrosion, while the internal strainer prevents contaminants from entering the fuel system. The module’s connector is female with a rectangular shape, simplifying electrical connections during installation.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pump modules in Jeep Liberty models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty sending units
• Addresses fuel delivery interruptions caused by clogged or damaged internal strainers
• Eliminates fuel leaks by providing a secure FKM gasket seal

Installation Notes and Tips

The Autobest F3173A is designed for in-tank installation and does not include mounting hardware, so ensure existing hardware is in good condition or replaced as needed. The module features a single female rectangular connector and a quick connect outlet for fuel lines, facilitating a straightforward installation process. No special installation warnings are noted, but it is recommended to follow vehicle-specific service manuals for safe fuel system handling and proper torque specifications.

Quality Assurance and Warranty Information

Autobest provides this fuel pump module assembly with a focus on durability and consistent performance. The product is available to order and meets regular grade standards for fuel delivery components. While specific warranty details are not provided here, Autobest typically offers coverage against manufacturing defects; consult the product documentation or supplier for exact warranty terms.
