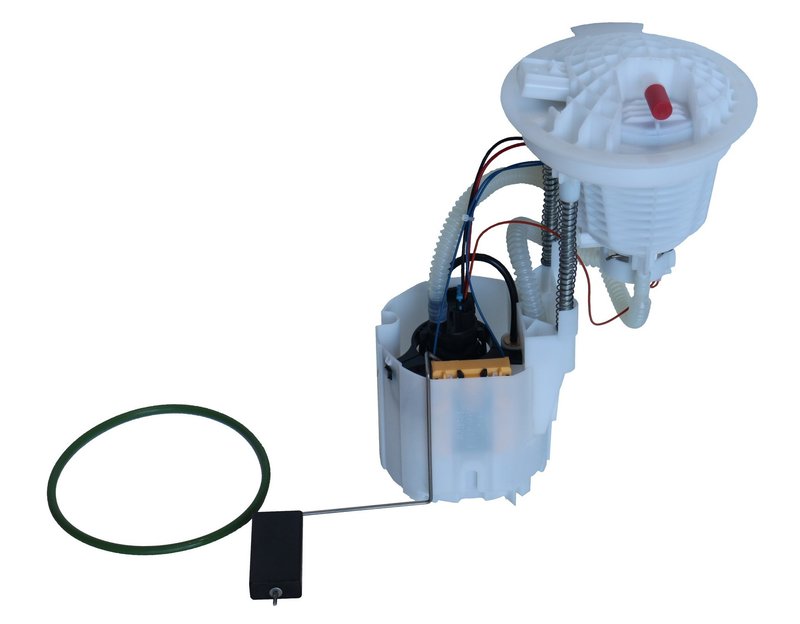

Autobest F3195A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3195A

The Autobest Fuel Pump Module Assembly F3195A is designed for reliable fuel delivery in Chrysler and Dodge vehicles, specifically compatible with Aspen and Durango models. This in-tank fuel pump module offers a performance-grade solution engineered to maintain consistent fuel pressure and flow.

• Average current draw of 10.9 amps for efficient operation
• Fuel flow rating of 39.5 gallons per hour (GPH)
• Includes fuel sending unit and gasket for complete installation
• Constructed with durable POM housing material
• Features both internal and external strainers for fuel filtration
• Maximum pump pressure of 62.35 PSI and minimum pressure of 59.45 PSI
• Single male rectangular connector with quick connect outlet
• Designed as an in-tank assembly for Chrysler Aspen and Dodge Durango

Technical Details and Specifications

The Autobest F3195A fuel pump module assembly operates with an average current draw of 10.9 amps, ensuring efficient power consumption while delivering a steady fuel flow rated at 39.5 GPH. The module is housed in a robust POM material casing, providing durability and resistance to fuel exposure. It includes a fuel sending unit and gasket, but does not come with a fuel filter or tank pressure sensor. The pump features both internal and external strainers to protect the fuel system from contaminants.

Designed for in-tank installation, this module has a 0.314-inch inlet size with a strainer type inlet and a 0.374-inch quick connect outlet. The connector is a single male rectangular type, simplifying electrical connections. The pump maintains fuel pressure between 59.45 and 62.35 PSI, suitable for maintaining optimal engine performance in compatible Chrysler Aspen and Dodge Durango vehicles.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chrysler Aspen
• Dodge Durango

It is designed to replace the original fuel pump module assembly in these models, ensuring proper fuel delivery and accurate fuel level readings thanks to the included fuel sending unit.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty sending unit
• Low fuel pressure leading to poor engine performance or hesitation
• Fuel pump noise or failure from worn internal components
• Fuel contamination issues mitigated by internal and external strainers

Installation Notes and Tips

The Autobest F3195A is designed for straightforward in-tank installation with no special warnings. Ensure the vehicle’s negative ground system is properly connected as this pump requires negative ground. The included gasket should be replaced during installation to maintain a proper seal. Verify connector compatibility with the male rectangular connector and quick connect outlet to ensure proper electrical and fuel line connections.

Quality Assurance and Warranty

Autobest provides this fuel pump module assembly with a performance-grade classification, manufactured to meet or exceed OEM specifications. The product is available to order and includes a warranty that covers defects in materials and workmanship. This ensures reliable operation and peace of mind when replacing the fuel pump module in Chrysler Aspen and Dodge Durango vehicles.
