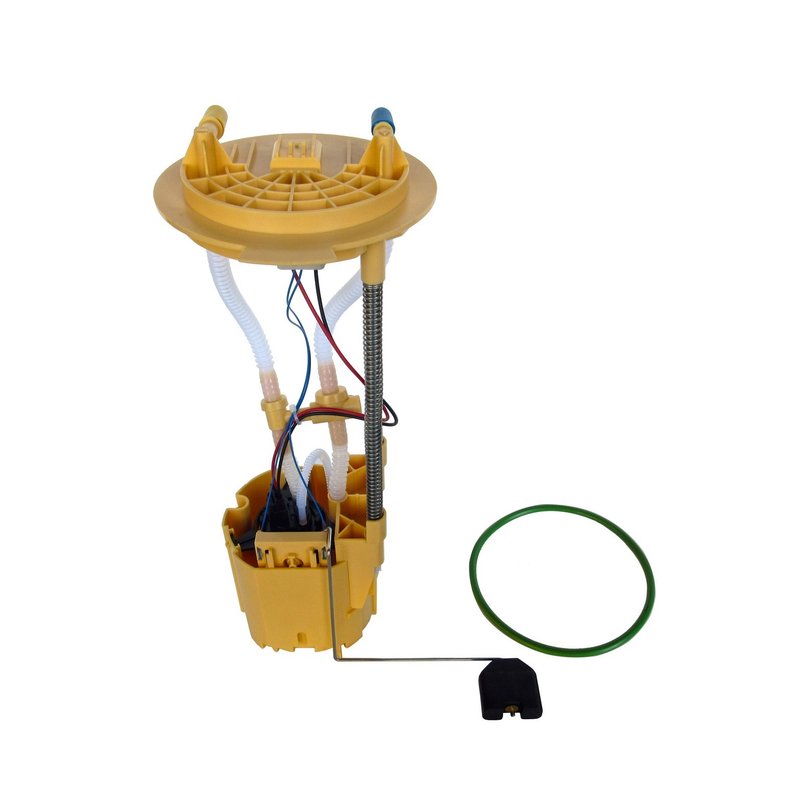

Autobest F3224A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3224A

The Autobest Fuel Pump Module Assembly F3224A is designed specifically for Dodge Ram 2500 and Ram 3500 models. This in-tank fuel pump module ensures reliable fuel delivery with precise flow and pressure ratings tailored to meet the demands of these heavy-duty trucks.

• Average current draw of 7.5 amps for efficient power consumption
• Fuel flow rating of 46.2 gallons per hour (GPH) to support engine performance
• Includes fuel sending unit and FKM gasket for accurate fuel level readings and secure sealing
• Constructed with durable POM housing material and internal strainer inlet type
• Compatible with Dodge Ram 2500 and Ram 3500 models
• Connector: single male rectangular type for straightforward installation
• Maximum pump pressure of 29 PSI and minimum pressure of 14.5 PSI for consistent fuel delivery

Technical Details and Specifications

The F3224A fuel pump module assembly features an internal strainer inlet sized at 0.433 inches, designed to filter fuel before it enters the pump. The outlet uses a 3/8 inch quick connect fitting, facilitating secure and efficient fuel line connections. The module is an in-tank design, which helps reduce noise and improves fuel system reliability. The included fuel sending unit provides accurate fuel level data to the vehicle’s gauge, while the FKM gasket ensures a tight seal to prevent leaks. The housing is made from POM, a robust plastic material that withstands fuel exposure and heat. This assembly does not include a fuel filter or tank pressure sensor but comes ready to install without mounting hardware.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Dodge Ram 2500
• Dodge Ram 3500

It is designed to replace the original fuel pump module in these models, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure causing engine stalling or no-start conditions
• Inaccurate fuel gauge readings due to faulty fuel sending unit
• Low fuel pressure leading to poor engine performance or hesitation
• Fuel leaks caused by worn or damaged gaskets
• Excessive electrical current draw affecting vehicle electrical systems

Installation Notes and Tips

The Autobest F3224A is designed for direct replacement and requires no special installation warnings. Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical hazards. Verify the connector type matches the vehicle’s wiring harness (male rectangular connector). The included FKM gasket should be properly seated to avoid fuel leaks. Since mounting hardware is not included, reuse the original hardware or source compatible fasteners. Confirm the fuel tank is empty or at a low level before removal to reduce spillage risk.

Quality Assurance and Warranty

Autobest fuel pump modules are manufactured to meet OEM specifications and undergo quality control testing to ensure durability and performance. The F3224A part is available to order and backed by a limited warranty covering defects in materials and workmanship. Refer to the warranty documentation for specific terms and conditions.
