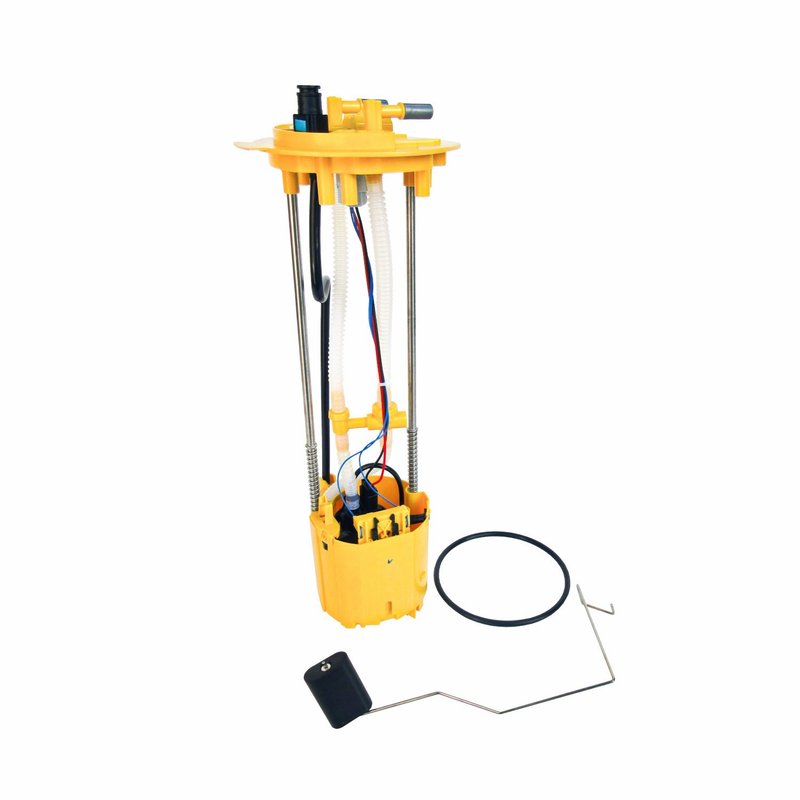

Autobest F3225A Fuel Pump Module Assembly - Rear
| Brand | Autobest F3225A |
|---|---|
| Position | Rear |
| Average Current Draw(A) | 10 |
| Average Flow Rating(GPH) | 68.7 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Fkm |
| Grade Type | Regular |
| Housing Material | Pom |
| In Tank or External | In tank |
| Inlet Size | 0.433 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 20 |
| Minimum Pump Pressure (PSI) | 10 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 |
| Outlet Type | Quick connect |
| Package Contents | Pump & module |
| Package Height (in) | 8.46 |
| Package Length (in) | 22.05 |
| Package Width (in) | 9.06 |
| Product line | Fuel Pump Module Assembly |
| Fits | Dodge · 11 vehicles |
Complete module. Includes the pump, sending unit, regulator, strainer, and seal for a full fuel system service.
Ethanol-tolerant materials. Built with FKM sealing material and a POM housing for modern fuel blends.
Turbine pump design. Uses an in-tank turbine pump with a quick-connect outlet and male electrical connector.
Cross-references Carter P76869M, Delphi FG1331 and Spectra Premium SP7094M for the same application. See all 5.
Fuel Pump Module Assembly Overview
This Autobest fuel pump module assembly is built for fuel delivery service where a complete in-tank replacement is needed. It is engineered with ethanol-tolerant materials and includes the pump module components needed for a full installation. Part number F3225A is listed for select Dodge Ram heavy-duty applications.
Key Features
- In-tank fuel pump module assembly with turbine pump design.
- Includes fuel sending unit, regulator, strainer, and seal.
- Quick-connect outlet and male electrical connector for straightforward integration.
- FKM seal material and POM housing for fuel system durability.
- Rated for 10 to 20 PSI operating pressure with 68.7 GPH average flow.
Detailed Description
Autobest F3225A is a fuel pump module assembly designed around the needs of modern fuel systems that use ethanol-blended fuel. The module uses a turbine-style pump, internal strainer, and a 3/8-inch quick-connect outlet, along with a fuel sending unit and regulator. The assembly is built with top-grade components and tested during manufacturing to verify performance. Part number F3225A is a direct fit for 2007-2010 Dodge Ram 3500, after axle fuel tank, and 2008-2010 Dodge Ram 4500 and Ram 5500 rear applications.
What It Is Used For
- Restoring fuel delivery when the original module no longer maintains pressure.
- Replacing a worn sending unit that causes inaccurate fuel level readings.
- Addressing fuel starvation from a weak or failing in-tank pump.
- Correcting leaks at the tank seal or module interface.
- Replacing a restricted strainer that limits fuel flow.
Installation Notes and Tips
Fits 2007-2010 Dodge Ram 3500, after axle fuel tank. Fits 2008-2010 Dodge Ram 4500, rear. Fits 2008-2010 Dodge Ram 5500, rear. Verify connector style, outlet type, and tank configuration before installation. The module is supplied with a seal, and the product listing does not state that mounting hardware is included.
Quality Assurance
Autobest states that this module uses top-quality materials and is tested throughout manufacturing. It is supplied with a limited lifetime warranty and is backed by a 12-month unlimited mileage warranty.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Dodge | Ram 3500 | — | 6.7L | L6 | N/A | After Axle Fuel Tank; Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2010 | Dodge | Ram 4500 | — | 6.7L | L6 | Rear | Fuel Pump Module Assembly |
| 2010 | Dodge | Ram 5500 | — | 6.7L | L6 | Rear | Fuel Pump Module Assembly |
| 2009 | Dodge | Ram 3500 | — | 6.7L | L6 | N/A | After Axle Fuel Tank; Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2009 | Dodge | Ram 4500 | — | 6.7L | L6 | Rear | Fuel Pump Module Assembly |
| 2009 | Dodge | Ram 5500 | — | 6.7L | L6 | Rear | Fuel Pump Module Assembly |
| 2008 | Dodge | Ram 3500 | — | 6.7L | L6 | N/A | After Axle Fuel Tank; Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2008 | Dodge | Ram 4500 | — | 6.7L | L6 | Rear | Fuel Pump Module Assembly |
| 2008 | Dodge | Ram 5500 | — | 6.7L | L6 | Rear | Fuel Pump Module Assembly |
| 2007 | Dodge | Ram 3500 | — | 6.7L | L6 | N/A | After Axle Fuel Tank; Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2007 | Dodge | Ram 3500 | Cab & Chassis | 5.9L | L6 | N/A | After Axle Fuel Tank; Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
