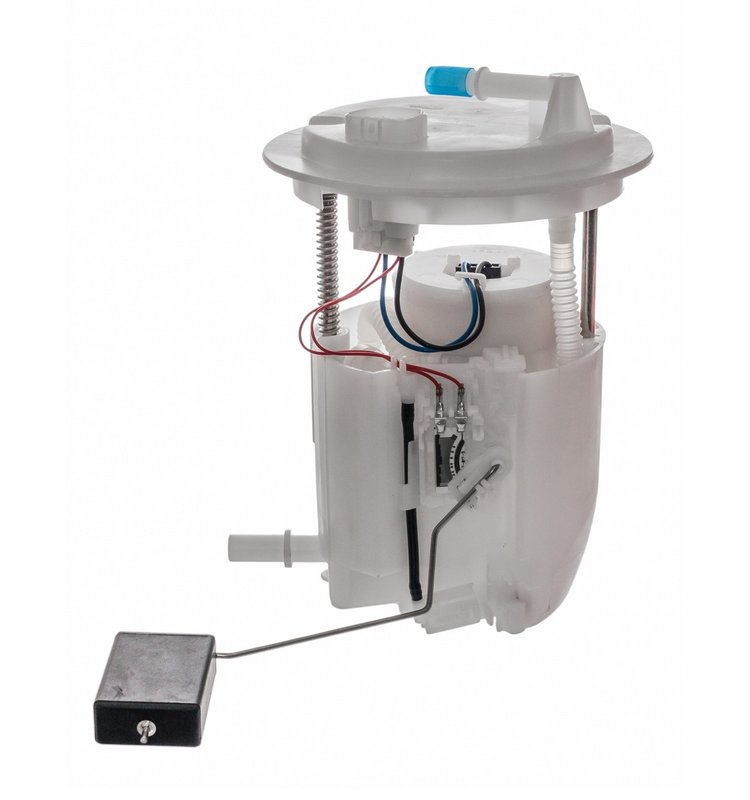

Autobest F3229A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3229A

The Autobest Fuel Pump Module Assembly F3229A is designed for reliable fuel delivery in select Dodge and Jeep vehicles. Engineered to meet the specific requirements of models like the Dodge Caliber, Jeep Compass, and Jeep Patriot, this in-tank fuel pump module ensures consistent performance and compatibility.

• Average current draw: 10 Amps
• Average flow rating: 46.2 gallons per hour (GPH)
• Includes fuel filter and fuel sending unit
• Connector: 1 male trapezoid-shaped connector
• Inlet type: Internal strainer with 0.433 inch size
• Outlet: Single quick connect, 3/8 inch size
• Housing material: POM (Polyoxymethylene)
• Gasket included, made of FKM material
• Maximum pump pressure: 62.4 PSI; Minimum pump pressure: 59.5 PSI
• Designed for in-tank installation

About the Autobest Fuel Pump Module Assembly Line

The Fuel Pump Module Assembly line by Autobest focuses on delivering integrated fuel pump solutions that combine the pump, fuel filter, and sending unit into a single module. This design simplifies installation and maintenance while ensuring precise fuel flow and pressure control. The F3229A model exemplifies this approach, providing a complete assembly compatible with specific Dodge and Jeep models.

Detailed Product Description

The Autobest F3229A fuel pump module assembly is an in-tank unit constructed with durable POM housing and equipped with an internal strainer to protect the fuel system from contaminants. It operates with an average current draw of 10 amps and delivers a steady flow rate of 46.2 GPH, maintaining fuel pressure between 59.5 and 62.4 PSI. The module includes a fuel filter and sending unit, ensuring accurate fuel level readings and clean fuel delivery. The trapezoid-shaped male connector and quick connect outlet facilitate straightforward electrical and fuel line connections. The included FKM gasket provides a reliable seal to prevent leaks during operation.

Compatible Vehicles and Common Applications

• Replacement for fuel pump issues in Dodge Caliber models
• Fuel delivery restoration for Jeep Compass vehicles
• Addressing fuel system failures in Jeep Patriot
• Solves problems related to low fuel pressure or inconsistent fuel flow
• Resolves inaccurate fuel level readings due to faulty sending units

Installation Notes and Tips

This fuel pump module assembly is designed for in-tank installation and does not require additional mounting hardware. The trapezoid male connector and quick connect outlet simplify the connection process. No special installation warnings are noted, but it is recommended to follow vehicle-specific service manuals for safe removal and installation procedures. Ensure the FKM gasket is properly seated to maintain a secure seal.

Quality Assurance and Warranty

The Autobest Fuel Pump Module Assembly F3229A is manufactured to meet regular grade standards and is available to order with quality assurance from the brand. It includes all necessary components such as the fuel filter, sending unit, and gasket to ensure a complete replacement. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
