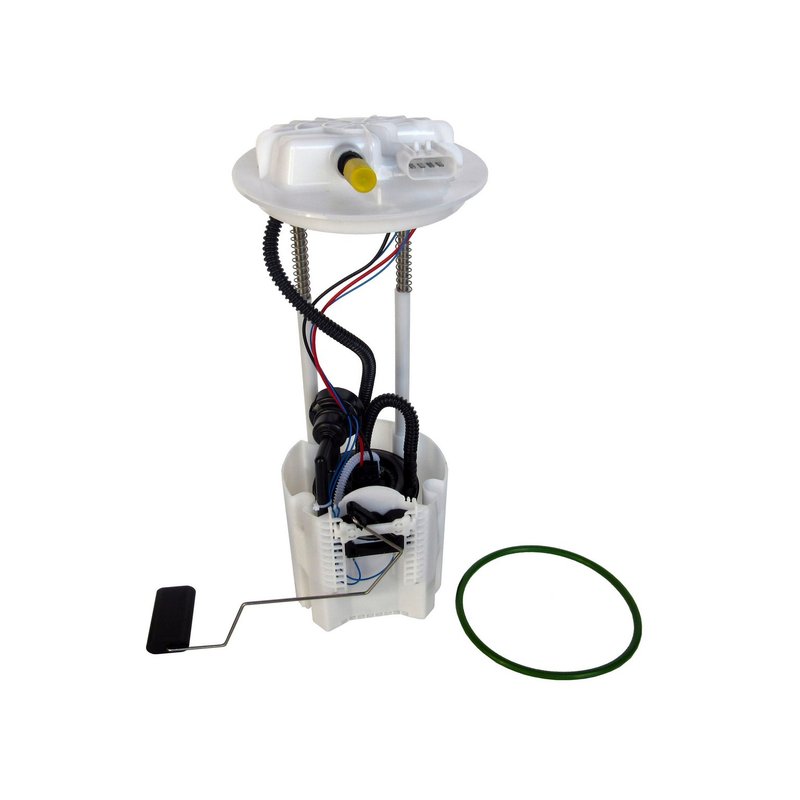

Autobest F3286A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F3286A

The Autobest Fuel Pump Module Assembly F3286A is designed for reliable fuel delivery in Ram 1500, 2500, and 3500 models. This in-tank fuel pump module ensures consistent fuel flow and integrates essential components for efficient operation.

• Average current draw of 11 amps for stable electrical performance
• Fuel flow rating of 50.2 gallons per hour (GPH)
• Includes fuel filter and fuel sending unit for comprehensive fuel system support
• Equipped with a female rectangular connector, single connector quantity
• Inlet size of 0.433 inches with internal strainer for fuel filtration
• Outlet size of 3/8 inch with quick connect type for easy installation
• Gasket included made from FKM material for durable sealing
• Housing constructed from POM material for strength and chemical resistance
• Designed for in-tank installation, compatible with Ram 1500, 2500, and 3500

About the Fuel Pump Module Assembly Product Line

The Autobest Fuel Pump Module Assembly line focuses on integrating multiple fuel delivery components into a single module. This design simplifies installation and maintenance by combining the fuel pump, fuel filter, and fuel sending unit into one assembly. The F3286A model exemplifies this approach, providing a ready-to-install solution that meets the specifications required for Ram trucks.

Detailed Product Description

The F3286A fuel pump module assembly operates within a pressure range of 58 to 63.8 PSI, ensuring consistent fuel delivery under varying engine demands. Its average flow rating of 50.2 GPH supports efficient engine performance. The module features a female rectangular connector with one outlet and one inlet, designed for secure and reliable connections. The internal strainer protects the pump from debris, while the included FKM gasket ensures a tight seal to prevent leaks. Constructed with a POM housing, this module offers durability and resistance to fuel and environmental factors. This assembly is specifically engineered for in-tank installation in Ram 1500, 2500, and 3500 models, providing a direct replacement that meets OEM standards.

Common Applications and Problem Resolution

• Replacement for failing or noisy fuel pumps in Ram 1500, 2500, and 3500 trucks
• Solves issues related to inconsistent fuel pressure or flow
• Addresses fuel delivery interruptions caused by clogged filters or faulty sending units
• Prevents fuel leaks with included FKM gasket for proper sealing
• Restores accurate fuel level readings with integrated fuel sending unit

Installation Notes and Tips

The Autobest F3286A fuel pump module assembly is designed for straightforward in-tank installation with no special warnings. Ensure the fuel tank is properly drained and depressurized before removal. Verify connector orientation and secure the female rectangular connector firmly. Replace the gasket during installation to maintain a proper seal. No mounting hardware is included, so reuse existing hardware or source appropriate fasteners as needed.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet regular grade standards and is available to order with consistent quality. The product includes a fuel filter and sending unit to ensure comprehensive fuel system functionality. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls and reliability standards.
