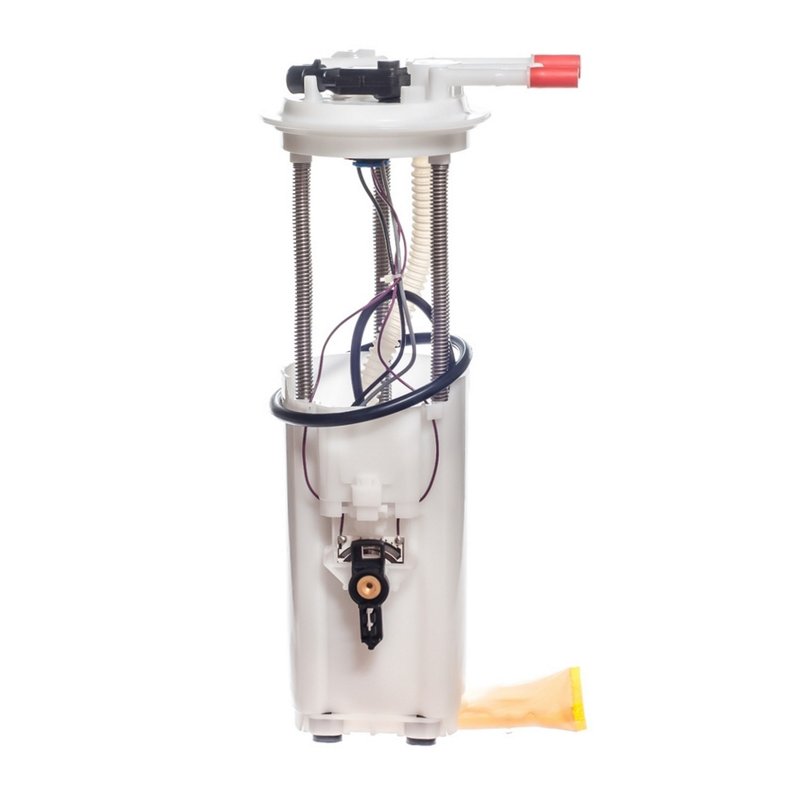

Autobest F4308A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F4308A

The Autobest Fuel Pump Module Assembly F4308A is designed for reliable fuel delivery in select Honda Passport and Isuzu Rodeo models. This in-tank fuel pump module integrates essential components to maintain consistent fuel pressure and flow for optimal engine performance.

• Average current draw: 9 Amps
• Average flow rating: 33 gallons per hour (GPH)
• Includes fuel sending unit and fuel tank pressure sensor
• Connector: 1 male rectangular connector
• Maximum pump pressure: 116 PSI; Minimum pump pressure: 87 PSI
• Inlet type: Strainer with 0.37 inch inlet size
• Outlet: Single quick connect, 3/8 inch size
• Gasket included, made of NBR material
• Housing constructed from durable POM material
• Designed for in-tank installation

About the Autobest Fuel Pump Module Assembly Line

The Autobest Fuel Pump Module Assembly product line focuses on delivering integrated fuel pump solutions that combine the pump, sending unit, and pressure sensor into a single module. This design simplifies installation and ensures compatibility with specific vehicle fuel systems. The F4308A model exemplifies this approach by including all necessary components except mounting hardware and fuel filter, providing a streamlined replacement for the fuel delivery system in compatible vehicles.

Detailed Product Description

The F4308A fuel pump module assembly is engineered to provide consistent fuel flow and pressure within the specified range of 87 to 116 PSI, supporting efficient engine operation. Its average flow rating of 33 GPH and current draw of 9 amps align with the fuel demands of the Honda Passport and Isuzu Rodeo. The module features a single male rectangular connector for electrical connection and a quick connect outlet for fuel line attachment, facilitating straightforward integration with the vehicle's fuel system. The inclusion of a fuel sending unit and fuel tank pressure sensor allows for accurate fuel level monitoring and pressure regulation. The module's housing is made from POM, a durable polymer that withstands in-tank conditions, while the NBR gasket ensures a secure seal to prevent leaks.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Honda Passport and Isuzu Rodeo
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sending units
• Addresses fuel tank pressure sensor malfunctions affecting engine performance
• Eliminates fuel leaks by providing a new NBR gasket seal

Installation Notes and Tips

The Autobest F4308A is designed for in-tank installation and includes the pump and module but does not come with mounting hardware or a fuel filter. Ensure the vehicle's electrical connector matches the single male rectangular connector on the module. Verify the fuel line connections correspond to the 3/8 inch quick connect outlet. No special installation warnings are noted, but proper safety precautions should be followed when working with fuel system components.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet regular grade standards and is available to order. It includes a gasket made from NBR material for reliable sealing. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure dependable performance in compatible Honda Passport and Isuzu Rodeo vehicles.
