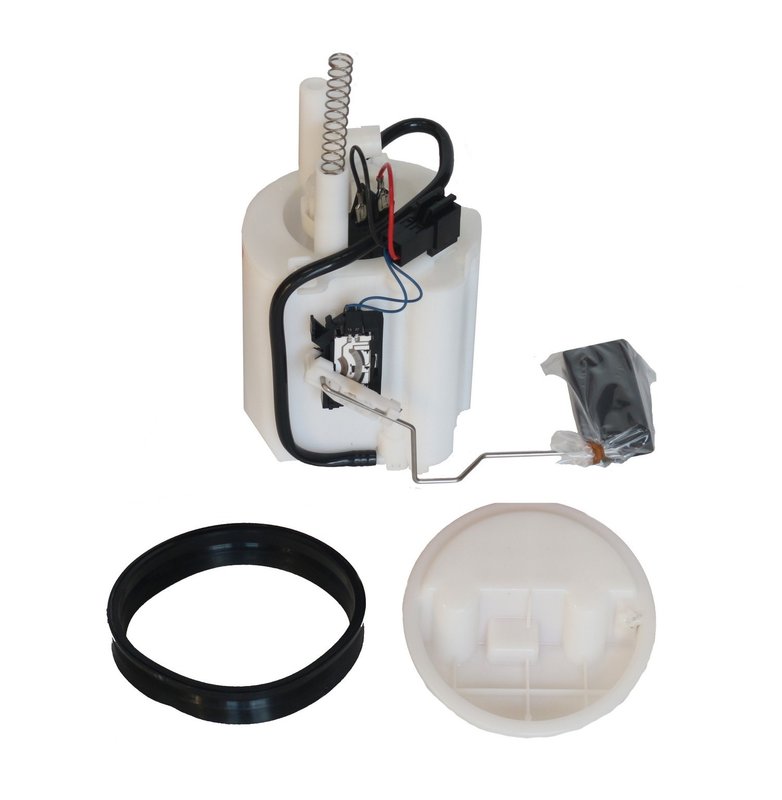

Autobest F4485A Fuel Pump Module Assembly - Right

Reliable Fuel Pump Module Assembly for Mercedes-Benz C-Class

The Autobest F4485A fuel pump module assembly is engineered for precise fuel delivery in Mercedes-Benz C230, C240, and C320 models. Designed as an in-tank unit, this module ensures consistent fuel flow and pressure to maintain optimal engine performance.

• Average flow rating of 34.4 gallons per hour (GPH) for steady fuel supply
• Average current draw of 7 amps for efficient power consumption
• Includes fuel sending unit and FKM gasket for accurate fuel level readings and secure sealing
• Constructed with durable POM housing material for long-lasting operation
• Features a female rectangular connector with one inlet and one outlet nozzle, both sized at 0.433 inches
• Internal strainer inlet type to protect the fuel system from contaminants
• Minimum pump pressure of 87 PSI to meet engine fuel demands
• Compatible with Mercedes-Benz C230, C240, and C320 models

Technical Details and Specifications

The Autobest F4485A fuel pump module assembly is designed as an in-tank component, integrating a fuel sending unit but excluding a fuel filter and tank pressure sensor. The module’s POM housing provides chemical resistance and mechanical strength, while the included FKM gasket ensures a reliable seal to prevent leaks. The internal strainer inlet type helps filter out debris before fuel reaches the pump, protecting the fuel system. With a connector gender of female and a rectangular shape, the module connects via a single connector for streamlined installation. The pump delivers a consistent flow rate of 34.4 GPH and maintains a minimum pressure of 87 PSI, supporting the fuel requirements of Mercedes-Benz C230, C240, and C320 engines.

Applications and Problem Resolution

• Restores proper fuel delivery in Mercedes-Benz C230, C240, and C320 vehicles
• Resolves issues related to fuel pump failure such as engine stalling or hesitation
• Addresses inaccurate fuel level readings by including a fuel sending unit
• Prevents fuel leaks with the included FKM gasket seal
• Eliminates fuel contamination problems with an internal strainer design

Installation Notes and Tips

The Autobest F4485A is designed for direct replacement in compatible Mercedes-Benz models without the need for additional mounting hardware, which is not included. Installation requires careful handling of the fuel sending unit and gasket to ensure proper sealing and accurate fuel level readings. No special installation warnings are noted, but it is recommended to follow manufacturer guidelines for fuel system servicing and to verify connector compatibility before installation.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet regular grade standards and is available to order with assured quality. The product is made in China and undergoes quality control to ensure reliable performance. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
