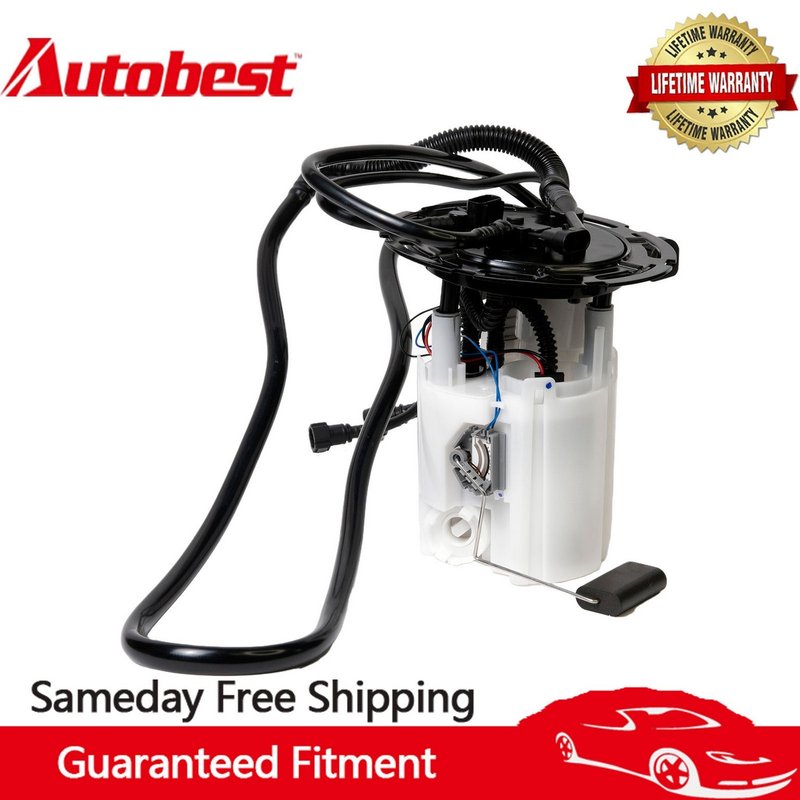

Autobest F4490A Fuel Pump Module Assembly
| Brand | Autobest F4490A |
|---|---|
| Average Current Draw(A) | 11 |
| Average Flow Rating(GPH) | 53 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| Housing Material | Pom |
| In Tank or External | In tank |
| Inlet Size | 0.433 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 100 |
| Minimum Pump Pressure (PSI) | 95 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 |
| Outlet Type | Female quick connect |
| Package Contents | Pump & kit |
| Package Height (in) | 8.46 |
| Package Length (in) | 22.05 |
| Package Width (in) | 9.06 |
| Fits | Saab · 11 vehicles |
Complete module. Includes the pump, sending unit, strainer, regulator, and seal for service replacement.
Ethanol tolerant. Built for modern fuel systems with materials selected for fuel compatibility.
Turbine pump design. Delivers steady in-tank fuel flow with 12V operation and a 53 GPH rating.
Cross-references Airtex Fuel Pumps E8489MN, Bosch 69702 and Carter P76289M for the same application. See all 9.
Fuel Pump Module Assembly Overview
This Autobest fuel pump module assembly is built for direct replacement service on select Saab applications. It combines the pump, sending unit, fuel strainer, regulator, and seal components needed for a complete in-tank fuel system repair.
Part number F4490A is engineered with ethanol-tolerant materials and a turbine-style pump design for consistent fuel delivery. It is a fitment-based solution for Saab 9-3 models that require an in-tank module assembly.
Key Features
- In-tank fuel pump module assembly with integrated fuel delivery and level-sending components
- Turbine pump design with 12V operation and 53 GPH average flow rating
- Female quick-connect outlet, male connector, and 4-pin terminal configuration
- Includes fuel filter, strainer, regulator, gasket or seal, and fuel tank pressure sensor
- Built with POM housing and NBR seal material for fuel system durability
- Part number F4490A for application matching and service reference
Detailed Description
Autobest F4490A is a fuel pump module assembly for Saab 9-3 applications listed below. It is designed as an in-tank unit with a male rectangular connector, female quick-connect outlet, and integrated sending unit to support fuel delivery and fuel level reporting from one assembly. The module uses a turbine pump, negative ground electrical design, and a 100 PSI maximum pump pressure rating.
Autobest states that it uses top-grade components and tests pumps throughout manufacturing. The brand also specifies superior ethanol tolerance for modern fuel systems. Part number F4490A cross-references Bosch 69702 and Delphi FG0514 for the same application.
What It Is Used For
- Restoring fuel delivery when the original module no longer maintains pressure
- Replacing a worn sending unit that causes inaccurate fuel level readings
- Addressing fuel starvation caused by a failing in-tank pump assembly
- Repairing a leaking or deteriorated tank seal at the module interface
- Replacing a clogged or damaged internal strainer or fuel filter
Installation Notes and Quality Assurance
Fits 2003 Saab 9-3, N/A. Fits 2004-2009 Saab 9-3, N/A. Fits 2010-2011 Saab 9-3, N/A.
Verify connector style, outlet type, and tank configuration before installation. This module is listed with no mounting hardware included and no wire harness included. Autobest supplies this part with a limited lifetime warranty, and the manufacturer also notes a 12-month unlimited mileage warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2011 | Saab | 9-3 | FWD | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FWD |
| 2010 | Saab | 9-3 | FWD | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FWD |
| 2009 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2008 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2007 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2006 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2005 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2004 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2003 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Arc,B207R,Turbocharged |
| 2003 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Linear,B207L,Turbocharged |
| 2003 | Saab | 9-3 | — | 2.0L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Vector,B207R,Turbocharged |
