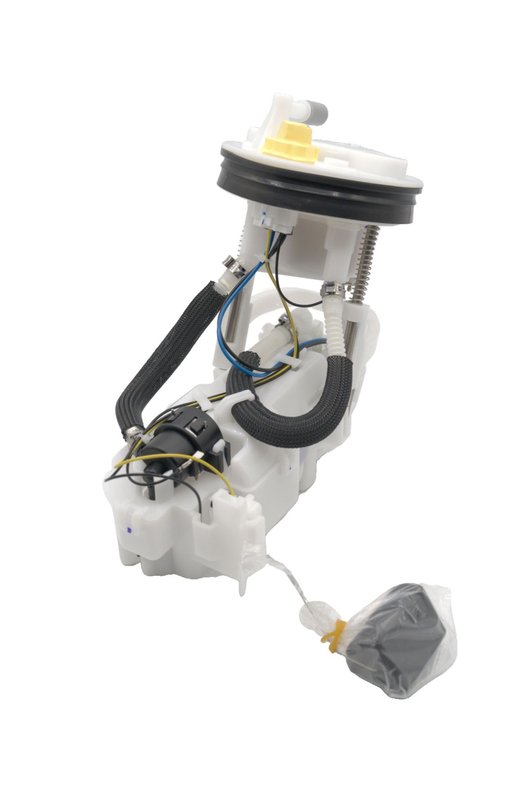

Autobest F4677A Fuel Pump Module Assembly
| Brand | Autobest F4677A |
|---|---|
| Average Current Draw(A) | 8 |
| Average Flow Rating(GPH) | 50 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | No |
| Gasket Or Seal Material | Nitrile rubber |
| Grade Type | Premium |
| Housing Material | Plastic |
| In Tank or External | In tank |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 53.65 |
| Minimum Pump Pressure (PSI) | 50.75 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | 0.374 |
| Outlet Type | Hose beed |
| Package Contents | Assembly & kit |
| Package Height (in) | 7.48 |
| Package Length (in) | 11.97 |
| Package Width (in) | 9.21 |
| Product Height (in) | 7.52 |
| Product Length (in) | 11.42 |
| Product Width (in) | 8.7 |
| Product line | Fuel Pump Module Assembly |
| Fits | Acura · 2 vehicles |
OE-style module. Integrated fuel pump assembly for in-tank fuel system service.
Complete fuel management. Includes the filter, sending unit, regulator, and internal strainer.
Ethanol-tolerant design. Built with materials suited for modern fuel system demands.
Cross-references Delphi FG1259, US Motor Works USEP8666M and 17045-S6M-A01 for the same application. See all 9.
Fuel Pump Module Assembly Overview
Autobest F4677A is a fuel pump module assembly built for direct fuel delivery service in the tank. It combines the pump, regulator, filter, sending unit, and internal strainer in one assembly to support consistent fuel system operation. Fits 2005-2006 Acura RSX, N/A.
- In-tank fuel pump module assembly for fuel delivery service
- Includes fuel filter, fuel sending unit, regulator, and internal strainer
- Female trapezoid connector with 4 blade terminals
- 12V operation with 50 GPH average flow rating
- Nitrile rubber seal material and plastic housing
Detailed Product Information
This Autobest fuel pump module assembly is engineered for vehicles that use an in-tank module with integrated fuel management components. The F4677A features a 12-volt pump, a single outlet, and a hose-bead outlet design, along with a female connector and blade-style terminals for the electrical connection. Its premium-grade construction and ethanol-tolerant materials address modern fuel system demands. This part cross-references Delphi FG1259 for the same application.
Fits 2005 Acura RSX, N/A. Fits 2006 Acura RSX, N/A. The F4677A is a direct replacement option for Acura RSX fuel system service where the original module uses the same configuration.
Common Replacement Reasons
- Hard starting caused by weak fuel delivery
- Engine hesitation from inconsistent fuel pressure
- Fuel gauge issues related to the sending unit
- Fuel starvation from a worn in-tank pump module
Installation Notes and Tips
Confirm connector shape, terminal count, outlet style, and in-tank configuration before installation. Verify seal condition and replace any damaged tank sealing components during service, since no gasket or seal is included. Check electrical polarity and fuel pressure specifications after installation to confirm proper operation.
Quality Assurance
Autobest tests this module at multiple points during manufacturing for durability and reliability. The F4677A is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2006 | Acura | RSX | 2.0L | L4 | Fuel Pump Module Assembly |
| 2005 | Acura | RSX | 2.0L | L4 | Fuel Pump Module Assembly |
