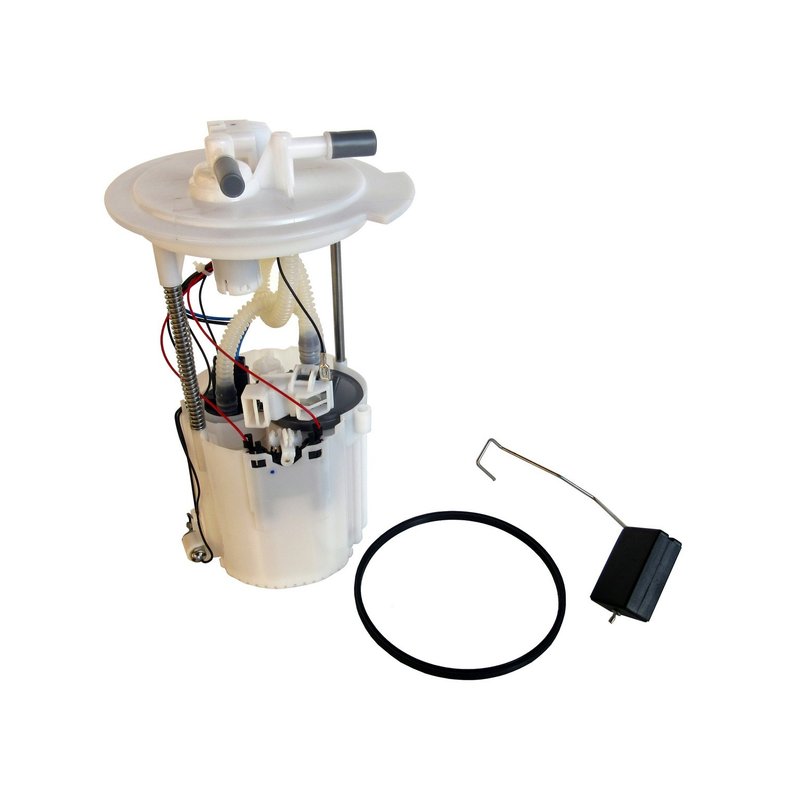

Autobest F4766A Fuel Pump Module Assembly

Overview of Autobest Fuel Pump Module Assembly F4766A

The Autobest Fuel Pump Module Assembly F4766A is designed specifically for Nissan Altima and Maxima models. This in-tank fuel pump module ensures reliable fuel delivery with integrated components to maintain optimal engine performance.

• Average current draw: 10 Amps
• Average flow rating: 39.6 gallons per hour (GPH)
• Includes fuel filter and fuel sending unit
• Connector: 1 male rectangular connector
• Maximum pump pressure: 59.5 PSI; Minimum pump pressure: 53.7 PSI
• Inlet type: strainer with 0.433 inch size
• Outlet: single quick connect, 3/8 inch size
• Gasket included, made of NBR material
• Housing material: POM (polyoxymethylene)
• Designed for in-tank installation

About the Autobest Fuel Pump Module Assembly Line

The Autobest Fuel Pump Module Assembly product line focuses on delivering complete fuel pump solutions that integrate the pump, fuel filter, and sending unit into a single module. This design simplifies installation and replacement while ensuring compatibility and performance for specific vehicle applications. The F4766A model is part of this line, engineered to meet the fuel delivery requirements of Nissan Altima and Maxima vehicles.

Detailed Product Description

The F4766A fuel pump module assembly operates with an average current draw of 10 amps and provides a consistent fuel flow rate of 39.6 GPH, suitable for maintaining proper engine fuel supply. It features a male rectangular connector with one connection point, facilitating straightforward electrical integration. The module includes a fuel filter and sending unit, eliminating the need for separate components and reducing installation complexity. The pump housing is constructed from durable POM material, and the included NBR gasket ensures a secure seal within the fuel tank. This in-tank pump module is designed to operate within a pressure range of 53.7 to 59.5 PSI, supporting stable fuel system pressure for Nissan Altima and Maxima models.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Nissan Altima and Maxima
• Restores proper fuel pressure and flow to prevent engine hesitation or stalling
• Resolves inaccurate fuel level readings by replacing the fuel sending unit
• Eliminates fuel contamination issues with the integrated fuel filter
• Addresses fuel delivery interruptions caused by worn or damaged pump modules

Installation Notes and Tips

The Autobest F4766A fuel pump module assembly is designed for in-tank installation with no special mounting hardware included. It features a quick connect outlet and a single male rectangular connector for ease of connection. The included NBR gasket should be properly seated to ensure a leak-free seal. No specific installation warnings are noted, but it is recommended to follow vehicle manufacturer guidelines and safety precautions when servicing the fuel system.

Quality Assurance and Warranty

This fuel pump module assembly is manufactured to meet regular grade standards and is available to order. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable performance. The module is made in China and undergoes quality checks to maintain consistent operation within specified parameters.
