Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

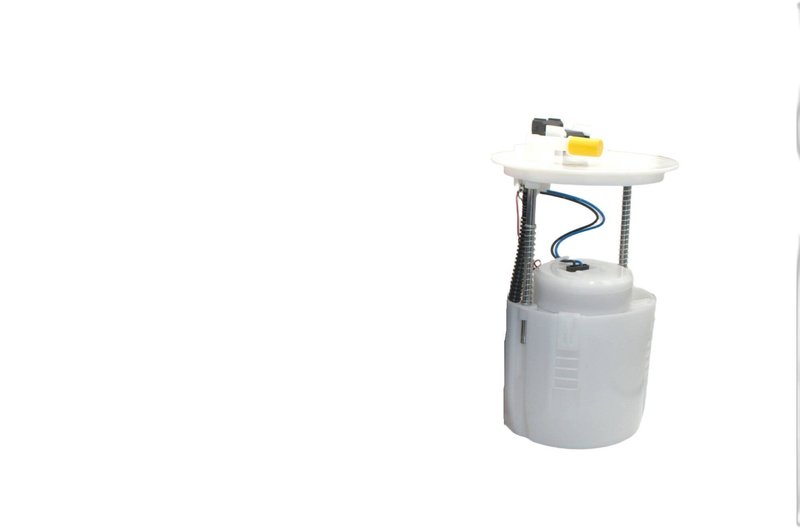

Autobest F4864A Fuel Pump Module Assembly
| Brand | Autobest F4864A |
|---|---|
| Average Current Draw(A) | 6 |
| Average Flow Rating(GPH) | 21.13 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| Housing Material | Pom |
| In Tank or External | In tank |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Package Contents | Fuel pump module assembly |
| Product Height (in) | 9.33 |
| Product Length (in) | 9.25 |
| Product Width (in) | 12.09 |
| Pump Type | Turbine |
| Resistance Ohms Empty | 120 |
| Resistance Ohms Full | 14 |
| Short Description | Fuel pump module assembly |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Product line | Fuel Pump Module Assembly |
| Fits | Mitsubishi · 10 vehicles |
OE-style replacement. Fuel pump module assembly for direct fuel system service.
Integrated module design. Includes the sending unit, fuel filter, and tank pressure sensor.
In-tank turbine pump. Built for 12V operation with a 21.13 GPH flow rating.
Cross-references Delphi FG1632, US Motor Works USEP8853M and E8853M for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel delivery replacement
The Autobest Fuel Pump Module Assembly, part number F4864A, is built for direct fuel system service on select Mitsubishi applications. It combines the pump module, fuel sending unit, fuel filter, strainer, and tank pressure sensor in one in-tank assembly for a complete replacement path.
- Fits 2008-2017 Mitsubishi Lancer, N/A.
- In-tank turbine pump design with 12V operation and 6A average current draw.
- Includes a male connector with trapezoid shape and 5-pin terminal layout.
- Fuel sending unit and tank pressure sensor are included for integrated fuel system function.
- NBR seal material and POM housing support fuel system durability.
Product details
Autobest F4864A is a fuel pump module assembly for the Mitsubishi Lancer platform from 2008 through 2017. The module is designed as an in-tank unit with an internal strainer and a turbine-style pump, and it delivers an average flow rating of 21.13 GPH. The assembly also includes the fuel filter, fuel sending unit, and fuel tank pressure sensor, which makes it a practical choice when replacing a worn or inconsistent fuel delivery module. Part number F4864A is also cross-referenced to Delphi FG1632 for the same application.
Common replacement issues
- Hard starting caused by weak fuel delivery.
- Fuel level reading errors from a failing sending unit.
- Loss of fuel pressure from a worn pump module.
- Fuel system warning concerns related to the tank pressure sensor.
- Restricted flow from a clogged internal filter or strainer.
Installation notes
Install this module inside the fuel tank and verify connector style, terminal count, and electrical requirements before replacement. The assembly uses a male connector with five pin terminals and does not include mounting hardware or a wire harness. Confirm the vehicle’s fuel system configuration matches the listed fitment before installation.
Quality assurance
Autobest lists this fuel pump module assembly with a limited lifetime warranty. The brand’s fuel systems program emphasizes fit, form, and function across its module and hanger assembly offerings. Part number F4864A is built for the 2008-2017 Mitsubishi Lancer application and is available to order.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2017 | Mitsubishi | Lancer | 2.4L | L4 | Fuel Pump Module Assembly |
| 2016 | Mitsubishi | Lancer | 2.4L | L4 | Fuel Pump Module Assembly |
| 2015 | Mitsubishi | Lancer | 2.4L | L4 | Fuel Pump Module Assembly |
| 2014 | Mitsubishi | Lancer | 2.4L | L4 | Fuel Pump Module Assembly |
| 2013 | Mitsubishi | Lancer | 2.4L | L4 | Fuel Pump Module Assembly |
| 2012 | Mitsubishi | Lancer | 2.4L | L4 | Fuel Pump Module Assembly |
| 2011 | Mitsubishi | Lancer | 2.0L | L4 | Fuel Pump Module Assembly |
| 2010 | Mitsubishi | Lancer | 2.0L | L4 | Fuel Pump Module Assembly |
| 2009 | Mitsubishi | Lancer | 2.4L | L4 | Fuel Pump Module Assembly |
| 2008 | Mitsubishi | Lancer | 2.0L | L4 | Fuel Pump Module Assembly |
| No rows match your filter. | |||||
