OE Quality
60-Day Returns

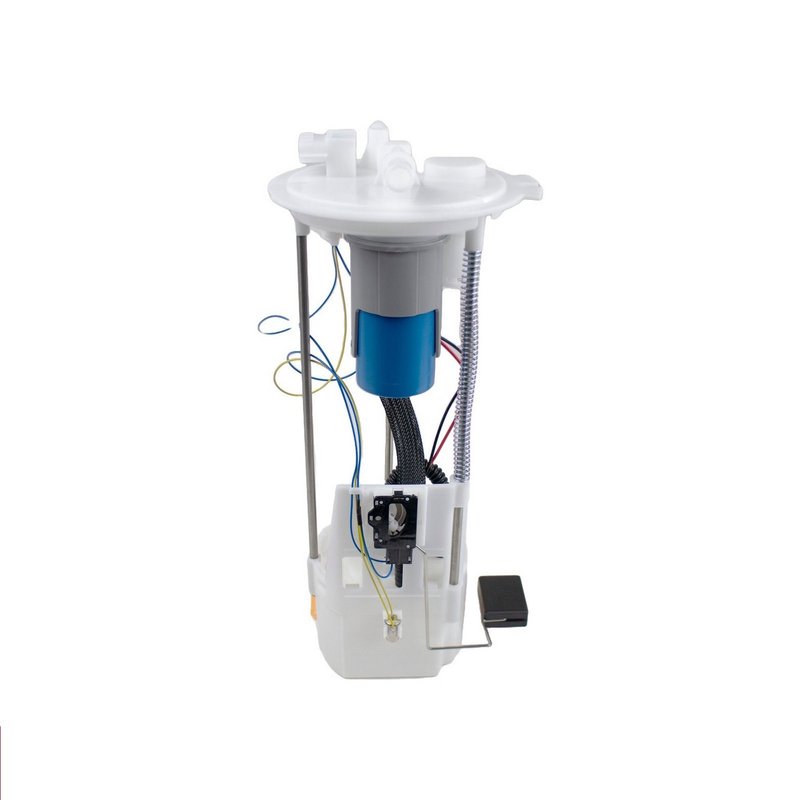

Autobest F4873A Fuel Pump Module Assembly
| Brand | Autobest F4873A |
|---|---|
| Average Current Draw(A) | 8.5 |
| Average Flow Rating(GPH) | 38.3 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Regular |
| Housing Material | Pom |
| In Tank or External | In tank |
| Inlet Size | 0.433 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 55 |
| Minimum Pump Pressure (PSI) | 55 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 |
| Outlet Type | Quick connect |
| Package Contents | Pump & kit |
| Package Height (in) | 7.28 |
| Package Length (in) | 18.11 |
| Package Width (in) | 7.28 |
| Fits | Nissan · 53 vehicles |
Complete installation kit. Includes the pump, filter, sending unit, gasket, seal, and regulator.
Ethanol-tolerant design. Built for today’s fuel systems with materials chosen for fuel compatibility.
Turbine pump. Delivers steady fuel flow with a 55 PSI operating pressure.
Cross-references Airtex Fuel Pumps E8862M, Delphi FG1277 and Spectra Premium SP4023M for the same application. See all 13.
$168.36Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options
Fuel Pump Module Assembly for Nissan NV and Titan
Autobest F4873A is a fuel pump module assembly built for direct replacement in select Nissan NV and Titan applications. It includes the fuel pump, sending unit, fuel filter, strainer, gasket/seal, and regulator for a complete in-tank fuel delivery service.
Compatible With 2005-2018 Nissan Armada, Titan, NV1500, NV2500, and NV3500 applications listed below, this module is built with ethanol-tolerant materials and tested through the manufacturing process for consistent fuel system performance. Part number F4873A is a practical choice when replacing a worn fuel pump module on Nissan trucks and vans.
Key Features
- In-tank fuel pump module assembly with turbine pump design
- Average flow rating: 38.3 GPH
- Operating pressure: 55 PSI
- 12V electrical system with 8.5A average current draw
- Male connector, 1 connector, 5-pin terminal layout
- Fuel sending unit, fuel filter, strainer, regulator, and gasket/seal included
- Quick-connect 3/8 in. outlet
- Ethanol-tolerant construction for modern fuel blends
- Housing material: POM; seal material: NBR
- Limited lifetime warranty
Product Details
Autobest F4873A is a fuel pump module assembly for Nissan Armada, Nissan Titan, and Nissan NV series vehicles that use an in-tank fuel delivery setup. The module is engineered with top-grade components and a turbine-style pump to support steady fuel delivery at 55 PSI. It also includes the sending unit and internal strainer, helping restore fuel level reporting and fuel pickup performance in one service part. This part number, F4873A, cross-references Airtex E8862M and Delphi FG1277 for the same application.
Common Problems This Part Can Address
- Hard starting caused by weak fuel pressure
- Engine hesitation or stalling from inconsistent fuel delivery
- Inaccurate fuel gauge readings from a failing sending unit
- Fuel starvation from a clogged internal strainer or filter
- Poor drivability related to a worn in-tank pump module
Installation Notes and Tips
- Install in the fuel tank location specified for the vehicle application.
- Verify connector style, outlet size, and terminal count before installation.
- Replace the tank seal during service to help maintain a proper seal.
- Confirm the vehicle’s build date for 2012-2017 Nissan NV2500 and NV3500 applications, which are listed through 01/2017.
- Review the fitment notes for FLEX and engine-specific Titan applications before ordering.
Quality Assurance
Autobest states that each fuel pump is built from top-grade components and tested throughout manufacturing to support consistent quality. Part number F4873A is backed by a limited lifetime warranty and is supplied for available-to-order service replacement use.
Vehicle Fitment
- Fits 2012-2018 Nissan NV1500, N/A
- Fits 2012-2018 Nissan NV2500, N/A
- Fits 2012-2018 Nissan NV3500, N/A
- Fits 2012-2017 Nissan NV2500, N/A; to 01/2017
- Fits 2012-2017 Nissan NV3500, N/A; to 01/2017
- Fits 2007-2015 Nissan Armada, N/A; FLEX
- Fits 2010-2015 Nissan Titan, N/A; FLEX
- Fits 2008-2009 Nissan Titan, N/A; VK56DE, 139.8, FLEX
- Fits 2005-2007 Nissan Titan, N/A; VK56DE, FLEX
This part fits 53 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Wheel Base | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Nissan | NV1500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2018 | Nissan | NV2500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2018 | Nissan | NV3500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2017 | Nissan | NV1500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2017 | Nissan | NV2500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2017 | Nissan | NV2500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2017 | Nissan | NV3500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2017 | Nissan | NV3500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2016 | Nissan | NV1500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2016 | Nissan | NV2500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2016 | Nissan | NV2500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2016 | Nissan | NV3500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2016 | Nissan | NV3500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2015 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2015 | Nissan | NV1500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2015 | Nissan | NV2500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2015 | Nissan | NV2500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2015 | Nissan | NV3500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2015 | Nissan | NV3500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2015 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2014 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2014 | Nissan | NV1500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2014 | Nissan | NV2500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2014 | Nissan | NV2500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2014 | Nissan | NV3500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2014 | Nissan | NV3500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2014 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2013 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2013 | Nissan | NV1500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2013 | Nissan | NV2500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2013 | Nissan | NV2500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2013 | Nissan | NV3500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2013 | Nissan | NV3500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2013 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2012 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2012 | Nissan | NV1500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2012 | Nissan | NV2500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2012 | Nissan | NV2500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2012 | Nissan | NV3500 | 5.6L | V8 | — | — | To 01/2017; Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2012 | Nissan | NV3500 | 4.0L | V6 | — | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2012 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2011 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2011 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2010 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2010 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2009 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2009 | Nissan | TITAN | 5.6L | V8 | FLEX | 139.8" | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,VK56DE,139.8,FLEX |
| 2008 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2008 | Nissan | TITAN | 5.6L | V8 | FLEX | 139.8" | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,VK56DE,139.8,FLEX |
| 2007 | Nissan | Armada | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX |
| 2007 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,VK56DE,FLEX |
| 2006 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,VK56DE,FLEX |
| 2005 | Nissan | TITAN | 5.6L | V8 | FLEX | — | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,VK56DE,FLEX |
| No rows match your filter. | |||||||
Directly replaces or cross-references 13 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E8862MDelphi — FG1277Spectra Premium — SP4023MUS Motor Works — USEP8862M17040-1PA0A17040-ZH00A17040-ZH00017040-ZQ60B17040-ZV60B69908150315P76570MSP4170M
