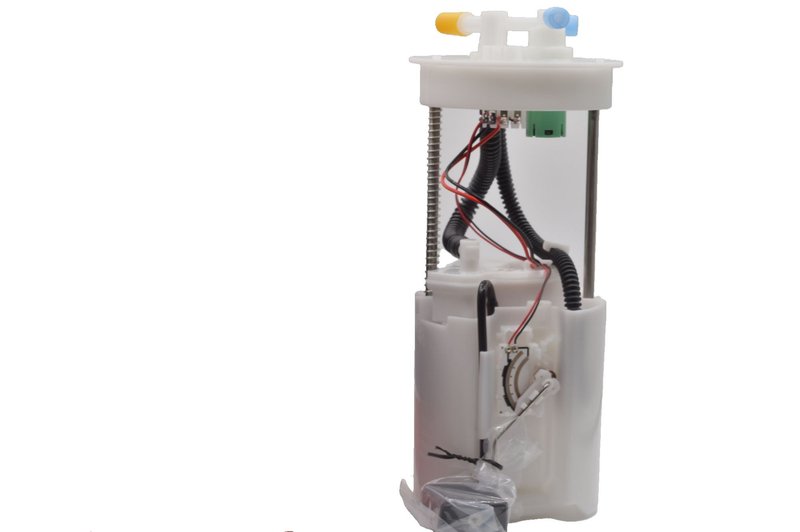

Autobest F4954A Fuel Pump Module Assembly
| Brand | Autobest F4954A |
|---|---|
| Average Current Draw(A) | 7 |
| Average Flow Rating(GPH) | 26.4 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Material | Fkm |
| Grade Type | Regular |
| Housing Material | Pom |
| In Tank or External | In tank |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Package Contents | Fuel pump module assembly |
| Product Height (in) | 4.8 |
| Product Length (in) | 11.34 |
| Product Width (in) | 6.6 |
| Pump Type | Turbine |
| Resistance Ohms Empty | 780 |
| Resistance Ohms Full | 21 |
| Short Description | Fuel pump module assembly |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Product line | Fuel Pump Module Assembly |
| Fits | Honda · 5 vehicles |
Direct replacement. Fuel pump module assembly for straightforward fuel system service.
Integrated components. Includes the fuel sending unit, filter, and internal strainer.
Fuel system design. In-tank turbine pump with FKM sealing and POM housing.
Cross-references Airtex Fuel Pumps E8943M, Carter P76773M and Delphi FG1280 for the same application. See all 6.
Fuel pump module overview
Autobest F4954A is an in-tank fuel pump module assembly built for direct replacement service on select Honda Fit applications. It combines the pump, fuel sending unit, filter, and strainer in one assembly to restore fuel delivery and tank level reporting.
Key features
- In-tank turbine pump design with 12V operation and 7A average current draw.
- Includes a fuel filter, fuel sending unit, and internal strainer.
- Male rectangular connector with 4-pin terminal layout.
- FKM seal material and POM housing for fuel system service.
- Average flow rating of 26.4 GPH for consistent fuel delivery.
Detailed description
This Autobest fuel pump module assembly is engineered for the Honda Fit from 2009-2013 and is identified by part number F4954A. It is an in-tank unit with one outlet, internal strainer, and integrated sending unit, making it a practical replacement when the original module has worn pump components or inaccurate fuel level output. The F4954A also cross-references Airtex E8943M for the same application.
Autobest’s Fuel Systems program focuses on fit, form, and function with broad vehicle coverage and problem-solving module designs. For Honda Fit fuel system repair, this module supports a complete service approach by combining the pump and level-sensing components in one assembly.
What it is used for
- Restoring fuel pressure when the original pump is weak or failing.
- Correcting erratic or inaccurate fuel gauge readings.
- Replacing a noisy or inconsistent in-tank fuel module.
- Addressing fuel delivery issues caused by worn internal pump components.
Installation notes and tips
Fits 2009-2013 Honda Fit, N/A. Verify connector style, terminal count, and tank configuration before installation. The module uses a male rectangular connector and 4-pin pin terminals. Mounting hardware is not included.
Quality assurance
Autobest F4954A is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2013 | Honda | Fit | 1.5L | L4 | Fuel Pump Module Assembly |
| 2012 | Honda | Fit | 1.5L | L4 | Fuel Pump Module Assembly |
| 2011 | Honda | Fit | 1.5L | L4 | Fuel Pump Module Assembly |
| 2010 | Honda | Fit | 1.5L | L4 | Fuel Pump Module Assembly |
| 2009 | Honda | Fit | 1.5L | L4 | Fuel Pump Module Assembly |
