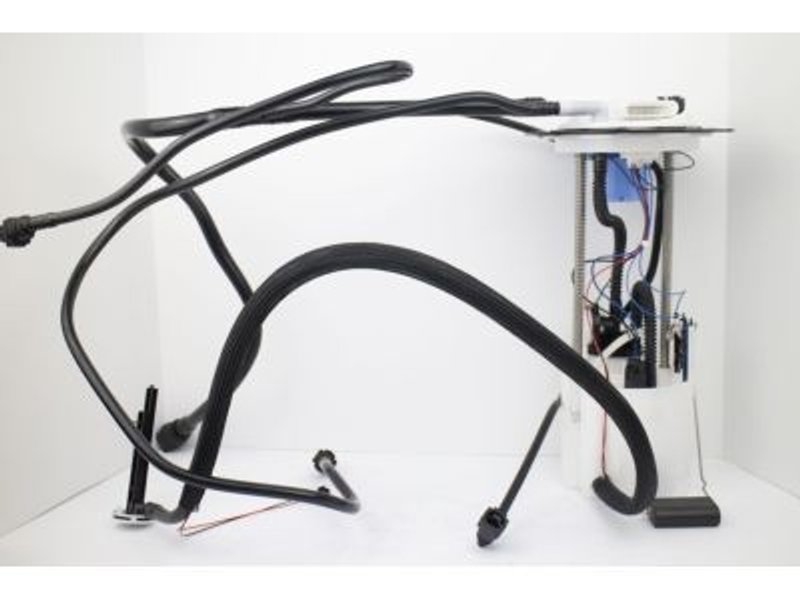

Autobest F5081A Fuel Pump Module Assembly - Right
| Brand | Autobest F5081A |
|---|---|
| Position | Right |
| Average Current Draw(A) | 11 |
| Average Flow Rating(GPH) | 33.02 |
| Connector Gender | Female |
| Connector Quantity | 2 |
| Connector Shape | Racetrack |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| Housing Material | Pom |
| In Tank or External | In tank |
| Inlet Size | 5/16 |
| Inlet Type | Quick connect |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 65 |
| Minimum Pump Pressure (PSI) | 55 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 |
| Outlet Type | Quick connect |
| Package Contents | Pump & kit |
| Package Height (in) | 9.06 |
| Package Length (in) | 22.05 |
| Package Width (in) | 16.93 |
| Product line | Fuel Pump Module Assembly |
| Fits | Chevrolet and Pontiac · 4 vehicles |
Complete installation kit. Includes the components needed for a full fuel pump module replacement.
Ethanol-tolerant materials. Built for modern fuel systems with improved resistance to ethanol blends.
Turbine pump design. Delivers steady fuel flow with efficient, performance-focused operation.
Cross-references Carter P76301M, Delphi FG1846 and Spectra Premium SP6047M for the same application. See all 7.
Fuel Pump Module Assembly for Equinox and Torrent
Autobest F5081A is a fuel pump module assembly built for 2008-2009 Chevrolet Equinox and 2008-2009 Pontiac Torrent models with the right-side tank position. It includes the components needed for a complete fuel delivery service, with ethanol-tolerant materials for modern fuel systems.
Key Features
- Fuel pump module assembly for in-tank installation
- Fits 2008-2009 Chevrolet Equinox, right
- Fits 2008-2009 Pontiac Torrent, right
- 12V turbine pump with 55-65 PSI operating range
- Average flow rating of 33.02 GPH
- Includes fuel filter, fuel sending unit, fuel tank pressure sensor, regulator, and gasket/seal
- Female 2-pin racetrack connector with 6-pin female PIN terminal layout
- Quick-connect 5/16 inlet and 3/8 outlet
- Performance-grade construction with POM housing and NBR seal material
- Limited Lifetime Warranty
Product Details
This Autobest fuel pump module assembly is engineered for direct replacement service on the Chevrolet Equinox and Pontiac Torrent applications listed above. The F5081A uses a turbine-style pump, negative ground electrical design, and internal strainer arrangement to support consistent fuel delivery in the tank. Autobest builds each pump with top-grade components and tests units throughout manufacturing to help maintain quality control. This part cross-references Carter P76301M and Delphi FG1846 for the same application.
Common Problems This Part Can Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge inaccuracies related to a failing sending unit
- Fuel pressure sensor faults within the module assembly
- Poor drivability from a worn in-tank pump module
Installation Notes and Tips
Verify the vehicle’s right-side tank application before ordering. Confirm connector style, inlet and outlet quick-connect sizes, and electrical terminal layout against the original module. Because this is an in-tank assembly, clean the tank and inspect the fuel lines and sealing surfaces before installation. The module is supplied without mounting hardware and without a wire harness.
Quality Assurance
Autobest uses quality materials and manufacturing checks across the production process, with ethanol tolerance suited to today’s fuel blends. Part number F5081A is backed by a Limited Lifetime Warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Chevrolet | Equinox | 3.6L | V6 | Right | Fuel Pump Module Assembly |
| 2009 | Pontiac | Torrent | 3.6L | V6 | Right | Fuel Pump Module Assembly |
| 2008 | Chevrolet | Equinox | 3.6L | V6 | Right | Fuel Pump Module Assembly |
| 2008 | Pontiac | Torrent | 3.6L | V6 | Right | Fuel Pump Module Assembly |
