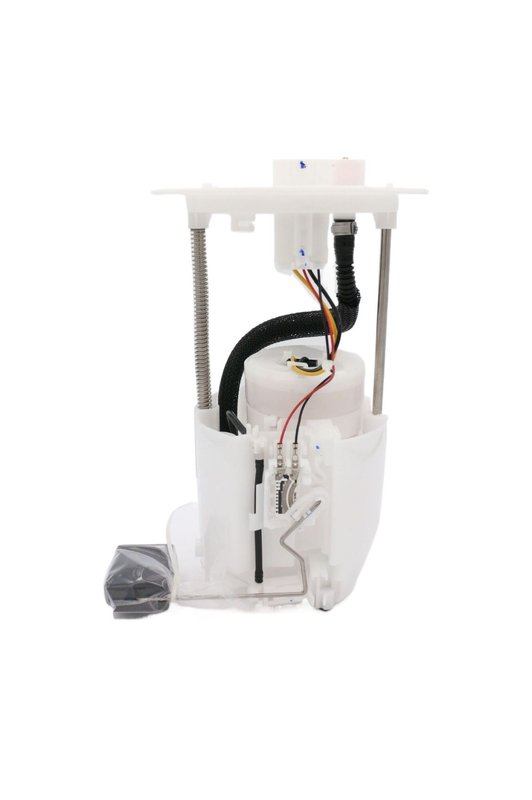

Autobest F6026A Fuel Pump Module Assembly
| Brand | Autobest F6026A |
|---|---|
| Average Current Draw(A) | 11.5 |
| Average Flow Rating(GPH) | 45 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Regular |
| Housing Material | Pom |
| In Tank or External | In tank |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 62.35 |
| Minimum Pump Pressure (PSI) | 59.45 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | 0.311 |
| Outlet Type | Hose beed |
| Package Contents | Assembly & kit |
| Package Height (in) | 7.09 |
| Package Length (in) | 16.93 |
| Package Width (in) | 7.09 |
| Product Height (in) | 0.63 |
| Product Length (in) | 9.33 |
| Product line | Fuel Pump Module Assembly |
| Fits | Toyota · 6 vehicles |
OE-style assembly. Complete fuel pump module with integrated sending unit, filter, regulator, and seal.
Ethanol-tolerant design. Built for modern fuel blends with materials selected for fuel-system durability.
Tested during production. Manufacturing checks help support consistent performance and reliability.
Cross-references Carter P76777M, Delphi FG1274 and 77020-08050 for the same application. See all 6.
Fuel Pump Module Assembly for Toyota Sienna
Restore fuel delivery with this Autobest fuel pump module assembly, part number F6026A. It is built as an in-tank turbine-style module with an integrated regulator, filter, sending unit, strainer, and seal for a complete fuel system service solution.
Key Features
- Fits 2011-2016 Toyota Sienna, N/A.
- In-tank turbine pump design with 12V operation.
- Includes fuel filter, fuel sending unit, strainer, regulator, and gasket/seal.
- Male connector with 4-pin terminal layout.
- Built with POM housing and NBR seal material.
- Rated for superior ethanol tolerance in modern fuel systems.
Detailed Description
Autobest F6026A is a fuel pump module assembly engineered for direct fuel tank installation on the Toyota Sienna application listed above. The module is designed around a turbine pump that delivers up to 45 GPH with a pressure range of 59.45 to 62.35 PSI, helping maintain consistent fuel supply under normal operating conditions. The integrated sending unit and regulator simplify replacement of multiple fuel system components in one service event.
Autobest uses quality materials and process testing throughout manufacturing to support durability and reliable operation. The module includes an internal strainer and fuel filter, and its ethanol-tolerant construction suits today’s fuel blends. This part cross-references Carter P76777M and Delphi FG1274 for the same application. Part number F6026A is also useful when searching for a Toyota Sienna fuel pump module assembly, F6026A.
What It Is Used For
- Hard starting caused by weak fuel delivery.
- Fuel pressure loss from a worn pump module.
- Inaccurate fuel level readings from a failing sending unit.
- Fuel starvation under load from restricted internal components.
- Service replacement when the tank-mounted module is no longer performing correctly.
Installation Notes and Tips
Fits 2011-2016 Toyota Sienna, N/A. Verify connector style, outlet configuration, and tank application before installation. The module uses a male connector with a trapezoid shape and 4 terminals. Mounting hardware is not listed as included, so confirm reuse or replacement needs during service. Part number F6026A should be matched to the vehicle’s fuel system specifications before installation.
Quality Assurance
Autobest tests this fuel pump module at multiple points during manufacturing to support durability and reliability. It is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2016 | Toyota | Sienna | 3.5L | V6 | Fuel Pump Module Assembly |
| 2015 | Toyota | Sienna | 3.5L | V6 | Fuel Pump Module Assembly |
| 2014 | Toyota | Sienna | 3.5L | V6 | Fuel Pump Module Assembly |
| 2013 | Toyota | Sienna | 3.5L | V6 | Fuel Pump Module Assembly |
| 2012 | Toyota | Sienna | 3.5L | V6 | Fuel Pump Module Assembly |
| 2011 | Toyota | Sienna | 3.5L | V6 | Fuel Pump Module Assembly |
