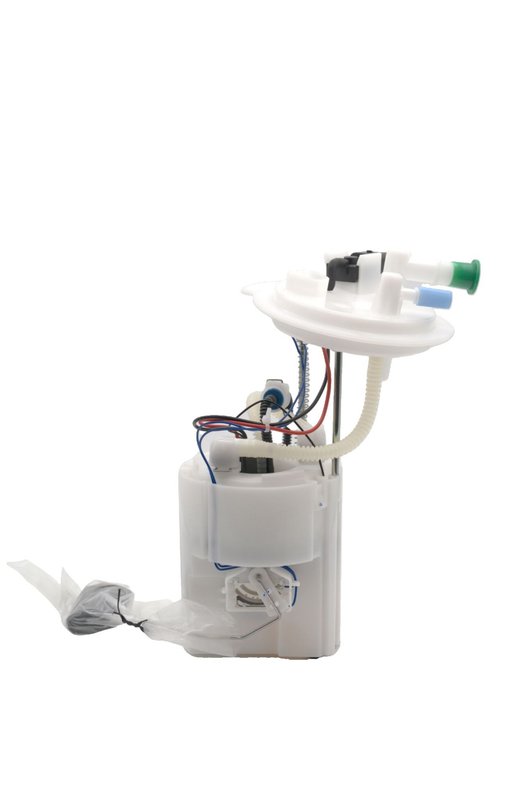

Autobest F6047A Fuel Pump Module Assembly
| Brand | Autobest F6047A |
|---|---|
| Average Current Draw(A) | 10.5 |
| Average Flow Rating(GPH) | 38.3 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Regular |
| Housing Material | Pom |
| In Tank or External | In tank |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 66.7 |
| Minimum Pump Pressure (PSI) | 63.8 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | 0.311 |
| Outlet Type | Hose beed |
| Package Contents | Assembly & kit |
| Package Height (in) | 7.09 |
| Package Length (in) | 13.78 |
| Package Width (in) | 7.09 |
| Product Height (in) | 0.71 |
| Product Length (in) | 9.8 |
| Product line | Fuel Pump Module Assembly |
| Fits | Hyundai · 1 vehicle |
OE-style module. Direct replacement fuel pump assembly for serviceable fuel system repair.
Integrated components. Includes the pump, sender, regulator, filter, strainer, and seal in one assembly.
Ethanol-tolerant materials. Built with modern fuel system compatibility in mind.
Cross-references Carter P77124M, Delphi FG1285 and US Motor Works USEP9036M for the same application. See all 6.
Fuel Pump Module Assembly
This Autobest fuel pump module assembly is built for fuel delivery service on the 2011 Hyundai Sonata. It combines the pump, sending unit, filter, regulator, and seal components in one in-tank assembly for a direct replacement application.
- Fits 2011 Hyundai Sonata, N/A.
- In-tank turbine pump design with a 12V electrical system.
- Includes a fuel filter, fuel sending unit, regulator, strainer, and gasket or seal.
- Male connector with a trapezoid shape and 4-pin terminal layout.
- Uses ethanol-tolerant materials for modern fuel systems.
Detailed Product Overview
Autobest F6047A is a fuel pump module assembly engineered for consistent fuel delivery and tank-level signal output. The unit uses a turbine-style pump, internal strainer, and integrated regulator, with a POM housing and NBR seal material for service in today’s fuel environments. The assembly is rated at 38.3 GPH average flow and operates within a 63.8 to 66.7 PSI pressure range. This part cross-references Carter P77124M and Delphi FG1285 for the same application. F6047A is a practical replacement choice for a Hyundai Sonata fuel system repair where the original module has lost pressure, flow, or sender accuracy.
Common Repair Uses
- Restores fuel pressure after pump wear or internal failure.
- Addresses inaccurate fuel level readings from a worn sending unit.
- Helps correct hard starting caused by weak fuel delivery.
- Replaces a leaking or degraded in-tank module seal.
Installation Notes
Install as an in-tank fuel pump module assembly and verify connector style, outlet type, and electrical terminal layout before installation. The unit is supplied without mounting hardware and without a wire harness. Confirm tank access, seal condition, and system pressure specifications during service.
Quality Assurance
Autobest states that this module uses quality materials and is tested at multiple points during manufacturing for durability and reliability. It is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2011 | Hyundai | Sonata | 2.4L | L4 | GAS | Fuel Pump Module Assembly |
