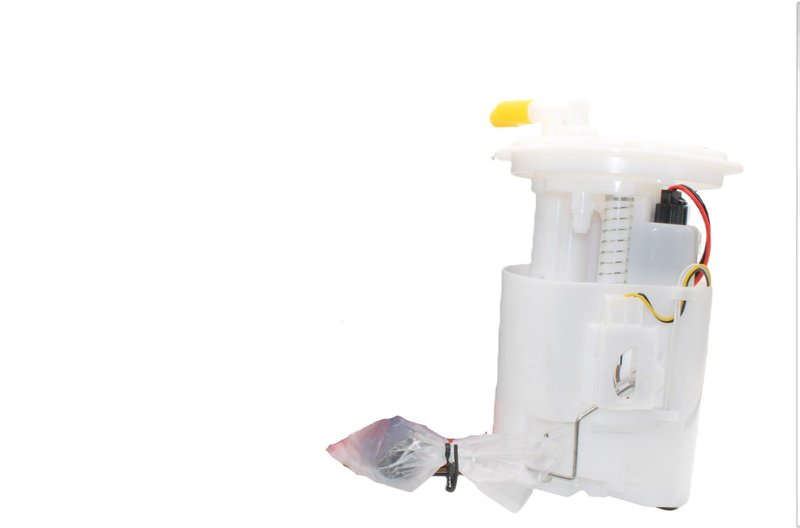

Autobest F6048A Fuel Pump Module Assembly
| Brand | Autobest F6048A |
|---|---|
| Average Current Draw(A) | 6.8 |
| Average Flow Rating(GPH) | 38 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| Housing Material | Pom |
| In Tank or External | In tank |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Package Contents | Fuel pump module assembly |
| Product Height (in) | 8.4 |
| Product Length (in) | 7.7 |
| Product Width (in) | 5.1 |
| Pump Type | Turbine |
| Resistance Ohms Empty | 32 |
| Resistance Ohms Full | 3 |
| Short Description | Fuel pump module assembly |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Product line | Fuel Pump Module Assembly |
| Fits | Subaru · 5 vehicles |
OE-style replacement. Fuel pump module assembly with premium fit, form, and function.
Integrated components. Includes the fuel sending unit, fuel filter, and internal strainer.
Performance-grade design. Turbine pump construction with a POM housing and NBR seal material.
Cross-references Delphi FG1865, Spectra Premium SP4084M and 42021-AJ090 for the same application. See all 6.
Fuel Pump Module Assembly Overview
The Autobest Fuel Pump Module Assembly, part number F6048A, is built for direct fuel delivery service with premium fit, form, and function. It is an in-tank module with an integrated fuel sending unit, filter, and strainer for a complete replacement approach.
Key Features
- In-tank fuel pump module assembly with turbine pump design
- Includes fuel sending unit, fuel filter, and strainer
- Male connector with 6-pin terminal layout
- 12V operation with 38 GPH average flow rating
- Performance-grade construction with POM housing and NBR seal material
Detailed Description
Autobest F6048A is a fuel pump module assembly engineered for Subaru Legacy and Subaru Outback applications that require an in-tank replacement. The module uses a turbine-style pump and a single rectangular male connector, with integrated fuel level sending capability and internal strainer support. Its compact housing measures 8.4 inches high, 7.7 inches long, and 5.1 inches wide, and the assembly is designed around 12V electrical operation with a 6.8A average current draw.
This part cross-references Delphi FG1865 and Spectra Premium SP4084M for the same application. Autobest’s Fuel Pump Module Assembly line focuses on premium fit, form, and function across fuel system replacement needs, and F6048A follows that approach with application-specific coverage and integrated components. Use F6048A when replacing a worn fuel delivery module on Subaru Legacy or Subaru Outback models listed below.
What It Helps Fix
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Fuel gauge errors related to a failing sending unit
- Low fuel pressure from a worn in-tank module
- Fuel starvation symptoms under load
Installation Notes and Tips
Fits 2010-2012 Subaru Legacy, N/A. Fits 2010-2011 Subaru Outback, N/A. Confirm connector style, terminal count, and tank configuration before installation. This module does not include mounting hardware or a wire harness.
Quality Assurance
Autobest F6048A is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2012 | Subaru | Legacy | 2.5i Touring | 2.5L | H4 | Fuel Pump Module Assembly |
| 2011 | Subaru | Legacy | — | 2.5L | H4 | Fuel Pump Module Assembly |
| 2011 | Subaru | Outback | — | 2.5L | H4 | Fuel Pump Module Assembly |
| 2010 | Subaru | Legacy | — | 2.5L | H4 | Fuel Pump Module Assembly |
| 2010 | Subaru | Outback | — | 2.5L | H4 | Fuel Pump Module Assembly |
