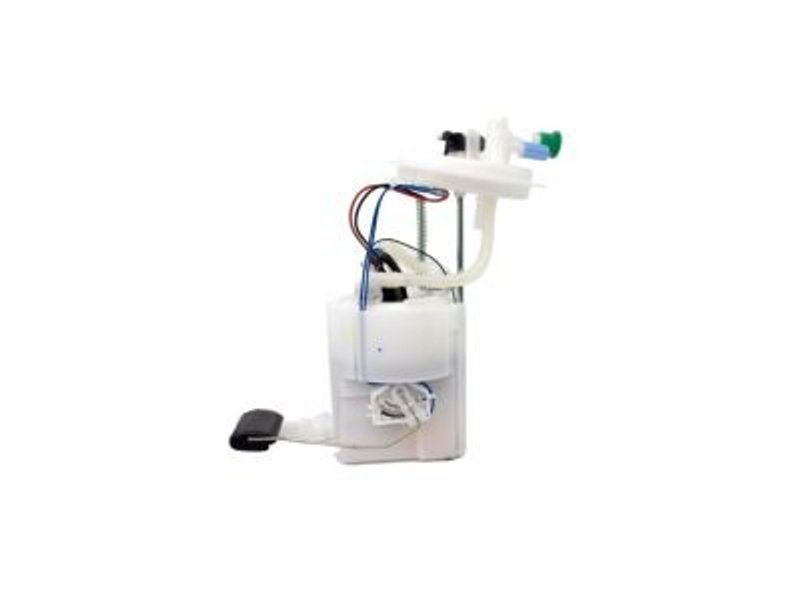

Autobest F6068A Fuel Pump Module Assembly

Fuel Pump Module Assembly for Kia and Hyundai

The Autobest F6068A fuel pump module assembly is built for direct replacement service in select Hyundai Sonata and Kia Optima applications. It combines the pump, fuel sending unit, regulator, filter, strainer, and sealing components needed for a complete in-tank fuel system repair.

Autobest Fuel Pump Module Assembly products focus on OE-style fit and dependable fuel delivery for modern gasoline systems, including vehicles that use ethanol-blended fuel.

Key Features

• In-tank turbine pump design with 12V operation
• Average flow rating of 51.5 GPH and average current draw of 11.5A
• Maximum pump pressure of 75 PSI and minimum pump pressure of 65 PSI
• Includes fuel filter, fuel sending unit, gasket or seal, regulator, and strainer
• Male connector with trapezoid shape, 1 outlet, and 5/16 quick-connect outlet type
• Built with top-grade components and tested throughout manufacturing
• Superior ethanol tolerance for today’s fuel systems

Detailed Description

Autobest F6068A is a fuel pump module assembly for 2011-2014 Hyundai Sonata and 2012-2015 Kia Optima models. It is an in-tank turbine-style unit with a POM housing, NBR seal material, and internal strainer design, made to support stable fuel delivery and accurate fuel level reporting through the included sending unit. The module uses a single male connector with four male PIN terminals and is supplied as a complete pump-and-kit package for service replacement.

This part cross-references Airtex E9057M and Delphi FG1561 for the same application. The F6068A part number is also referenced in OE-style interchange listings for these Hyundai Sonata and Kia Optima fuel pump module applications.

Common Repair Symptoms

• Hard starting or extended crank time
• Engine stalling from inconsistent fuel delivery
• Fuel gauge readings that do not match tank level
• Loss of fuel pressure under load
• Driveability issues related to a weak in-tank pump

Installation Notes and Tips

Confirm vehicle year and model before installation. This module is an in-tank assembly, so access is through the fuel tank service opening or tank removal depending on the vehicle. Verify connector style, outlet type, and fuel line routing before final assembly. Replace the tank seal carefully and inspect the fuel system for contamination before installing the new module.

Quality Assurance

Autobest states that each fuel pump uses top-grade components and is tested at multiple stages during manufacturing. The F6068A is backed by a limited lifetime warranty and is supplied with a 12-month unlimited mileage warranty from the manufacturer.
