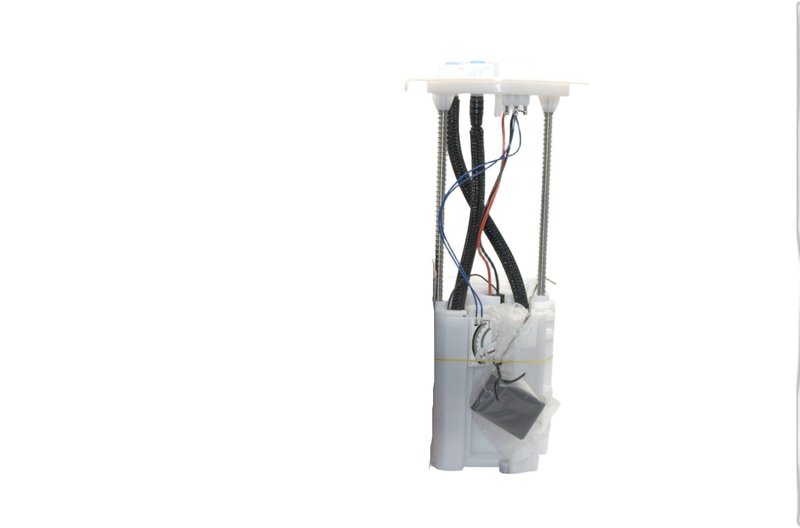

Autobest F6085A Fuel Pump Module Assembly
| Brand | Autobest F6085A |
|---|---|
| Average Current Draw(A) | 7.5 |
| Average Flow Rating(GPH) | 37 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Material | Fkm |
| Grade Type | Regular |
| Housing Material | Pom |
| In Tank or External | In tank |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Package Contents | Fuel pump module assembly |
| Product Height (in) | 13.35 |
| Product Length (in) | 5.91 |
| Product Width (in) | 6.93 |
| Pump Type | Turbine |
| Resistance Ohms Empty | 110 |
| Resistance Ohms Full | 4 |
| Short Description | Fuel pump module assembly |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Product line | Fuel Pump Module Assembly |
| Fits | Toyota · 6 vehicles |
OE-style fit. Direct-fit fuel pump module assembly for straightforward fuel system service.
Integrated components. Includes the fuel filter, strainer, and sending unit in one module.
Turbine pump design. Built for steady in-tank fuel delivery with 12V operation.
Cross-references Carter P77306M, Delphi FG1762 and 77020-35112 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly
The Autobest Fuel Pump Module Assembly F6085A is built for in-tank fuel delivery with a turbine pump, integrated fuel filter, and included sending unit. It is a direct-fit replacement for select Toyota 4Runner applications and is engineered around premium fit, form, and function.
Key Features
- In-tank fuel pump module assembly with a turbine-style pump
- Includes fuel filter, strainer, and fuel sending unit
- Female connector with trapezoid shape and 5-pin terminal layout
- FKM seal material and POM housing construction
- 12V operation with 7.5A average current draw and 37 GPH average flow rating
Detailed Description
Autobest F6085A is a fuel pump module assembly designed for select 2004-2009 Toyota 4Runner applications. It combines the pump, filter, strainer, and sending unit in one in-tank module to restore fuel delivery and fuel level signal performance. The F6085A part number is also referenced by cross numbers such as Carter P77306M and Delphi FG1762 for the same application.
The Autobest Fuel Pump Module Assembly line focuses on fit, form, and function with problem-solving features for fuel system service. This module uses a female trapezoid connector, male pin terminals, and a single outlet configuration. The F6085A is a practical choice when replacing a worn fuel pump module on a Toyota 4Runner.
What It Helps Solve
- Hard starting caused by weak fuel delivery
- Engine hesitation from inconsistent fuel pressure
- Incorrect fuel level readings from a failing sender
- Fuel starvation related to a worn in-tank pump module
Installation Notes and Tips
Fits 2004-2009 Toyota 4Runner, N/A. Verify connector shape, terminal count, and in-tank module configuration before installation. Confirm the fuel tank seal surface is clean and inspect the tank opening for debris before fitting the new module. Part number F6085A should be matched to the vehicle application and connector style before service.
Quality Assurance
Autobest lists this fuel pump module assembly with a limited lifetime warranty. The design includes an integrated fuel sending unit and filter for a complete service replacement, and the F6085A is built for direct-fit fuel system repair on supported Toyota 4Runner applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2009 | Toyota | 4Runner | 4.0L | V6 | Fuel Pump Module Assembly |
| 2008 | Toyota | 4Runner | 4.0L | V6 | Fuel Pump Module Assembly |
| 2007 | Toyota | 4Runner | 4.0L | V6 | Fuel Pump Module Assembly |
| 2006 | Toyota | 4Runner | 4.0L | V6 | Fuel Pump Module Assembly |
| 2005 | Toyota | 4Runner | 4.7L | V8 | Fuel Pump Module Assembly |
| 2004 | Toyota | 4Runner | 4.7L | V8 | Fuel Pump Module Assembly |
