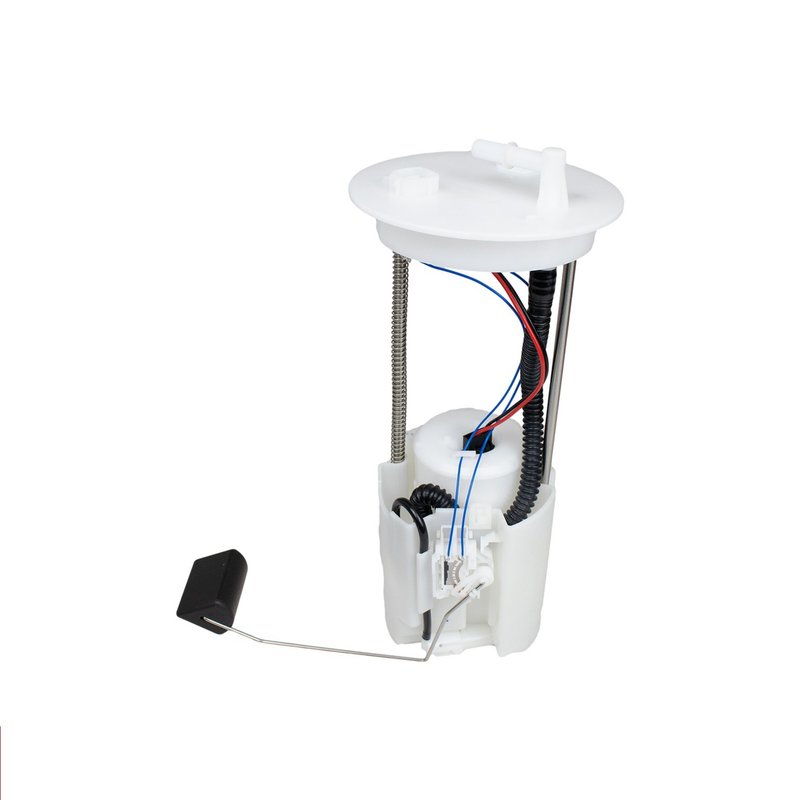

Autobest F6197A Fuel Pump Module Assembly
| Brand | Autobest F6197A |
|---|---|
| Average Current Draw(A) | 7.5 |
| Average Flow Rating(GPH) | 29 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | Nbr |
| Grade Type | Regular |
| Housing Material | Pom |
| In Tank or External | In tank |
| Inlet Size | 0.433 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Maximum Pump Pressure (PSI) | 115 |
| Minimum Pump Pressure (PSI) | 105 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 |
| Outlet Type | Quick connect |
| Package Contents | Pump & kit |
| Package Height (in) | 7.28 |
| Package Length (in) | 14.17 |
| Package Width (in) | 8.46 |
| Fits | Honda · 3 vehicles |
Complete module assembly. Includes the pump, filter, sending unit, gasket, seal, and regulator.
Ethanol-tolerant materials. Built for modern fuel systems with durable components throughout.
Turbine pump design. Delivers steady fuel flow with efficient, quiet operation.
Cross-references Delphi FG1528, 17045-T0A-000 and E9186M for the same application. See all 5.
Fuel Pump Module Assembly for Honda CR-V
Autobest F6197A is a fuel pump module assembly built for 2012-2014 Honda CR-V applications. It includes the fuel pump, sending unit, fuel filter, regulator, strainer, and tank seal for a complete in-tank replacement.
Designed for 12V systems, this module uses a turbine pump with a 29 GPH average flow rating and operating pressure range of 105-115 PSI. The assembly also features ethanol-tolerant materials, a male rectangle connector, and a 3/8 in. quick-connect outlet for direct service on the fuel delivery system.
Key Features
- Fits 2012-2014 Honda CR-V, in-tank fuel pump module application
- Autobest F6197A fuel pump module assembly for fuel delivery service
- Includes fuel pump, sending unit, fuel filter, regulator, strainer, and tank seal
- Turbine pump design with 29 GPH average flow rating
- Operating pressure range of 105-115 PSI
- 12V electrical system with 7.5A average current draw
- Male rectangle connector with 4-pin PIN terminals
- 3/8 in. quick-connect outlet and internal strainer
- Ethanol-tolerant construction for modern fuel systems
Detailed Description
Autobest F6197A is a direct replacement fuel pump module assembly for the Honda CR-V, covering 2012, 2013, and 2014 model years. It is built as an in-tank unit and includes the fuel sending unit, fuel filter, gasket or seal, regulator, and strainer to support a complete fuel system repair. The module uses top-grade components and is tested throughout manufacturing to help maintain consistent performance.
This part cross-references Delphi FG1528 for the same application. The F6197A also aligns with OE-style interchange numbers 17045-T0A-000 and E9186M for Honda CR-V fuel pump module service.
Common Repair Symptoms
- Hard starting or extended cranking
- Engine stalling from inconsistent fuel delivery
- Fuel gauge reading errors from a worn sending unit
- Low fuel pressure or poor acceleration under load
- Fuel pump noise from the tank area
Installation Notes and Tips
Install this module in the fuel tank and verify the connector, outlet style, and electrical terminals match the original unit before installation. Replace the tank seal during service and confirm the fuel lines are fully seated at the 3/8 in. quick-connect outlet. After installation, cycle the ignition and check for leaks, proper fuel pressure, and accurate fuel level readings.
Quality Assurance
Autobest supplies this fuel pump module assembly with a 12 Month Unlimited Mileage Warranty and a Limited Lifetime Warranty. The unit is manufactured with ethanol-tolerant materials and quality-tested during production to support dependable fuel system operation on Honda CR-V applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2014 | Honda | CR-V | 2.4L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2013 | Honda | CR-V | 2.4L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
| 2012 | Honda | CR-V | 2.4L | L4 | Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal |
