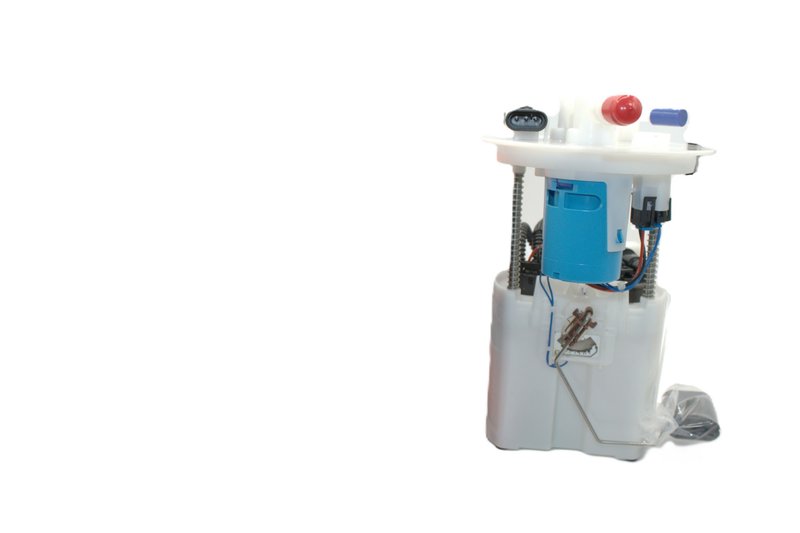

Autobest F6308A Fuel Pump Module Assembly
| Brand | Autobest F6308A |
|---|---|
| Average Current Draw(A) | 11 |
| Average Flow Rating(GPH) | 31 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Material | Nitrile rubber |
| Grade Type | Premium |
| Housing Material | Plastic |
| In Tank or External | In tank |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 2 |
| Package Contents | Fuel pump assembly |
| Product Height (in) | 11.856 |
| Product Length (in) | 9.126 |
| Product Width (in) | 7.41 |
| Resistance Ohms Empty | 200 |
| Resistance Ohms Full | 8 |
| Short Description | Fuel pump module assembly |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| UPC | 00072845163080 |
| Product line | Fuel Pump Module Assembly |
| Fits | Hyundai · 3 vehicles |
OE-style module. Fuel pump assembly for direct fuel system replacement.
Complete service part. Includes the fuel filter, sending unit, and internal strainer.
Premium-grade build. Uses a plastic housing with a nitrile rubber seal.
Cross-references Carter P77081M, Delphi FG2019 and E9397M for the same application. See all 3.
Fuel delivery replacement
Autobest F6308A is an in-tank fuel pump module assembly for the Hyundai Elantra. It combines the pump module, fuel filter, fuel sending unit, and internal strainer in one service part for direct fuel system replacement.
Fits 2014-2016 Hyundai Elantra, N/A. This application-specific fuel pump module assembly is built around a female square connector, 12-volt operation, and a premium-grade plastic housing with a nitrile rubber seal.
Key features
- In-tank fuel pump module assembly for fuel delivery service
- Fuel filter, fuel sending unit, and strainer included
- Female square connector with 4 blade terminals
- 12-volt electrical design with 11 amp average current draw
- Premium-grade housing and nitrile rubber gasket material
- Two outlet ports for system-specific routing
Detailed description
Autobest F6308A is a fuel pump module assembly engineered for the Hyundai Elantra fuel system. The module is designed for in-tank installation and includes the pump assembly, fuel filter, fuel sending unit, and internal strainer, helping restore fuel delivery and tank level reporting in one service part. The unit uses a female square connector, male blade terminals, and a 12-volt electrical setup with an average current draw of 11 amps and an average flow rating of 31 GPH. Autobest F6308A also uses a nitrile rubber seal and a plastic housing for the module body.
This part cross-references Carter P77081M and Delphi FG2019 for the same application. Autobest F6308A is listed for 2014-2016 Hyundai Elantra fitment, making it a direct reference for buyers searching for a Hyundai Elantra fuel pump module assembly F6308A.
What it is used for
- Replacing a worn or failing in-tank fuel pump module
- Restoring fuel delivery when the engine starves for fuel
- Addressing inaccurate fuel level readings from the sending unit
- Correcting fuel flow issues caused by a restricted internal strainer
- Servicing a leaking or degraded module seal
Installation notes and quality
Verify connector shape, terminal style, and outlet configuration before installation. Confirm tank-side fitment against the original module and compare electrical specifications, including voltage and resistance values, to the removed part. Professional installation is recommended for fuel system service. Autobest F6308A carries a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2016 | Hyundai | Elantra | 1.8L | L4 | Fuel Pump Module Assembly |
| 2015 | Hyundai | Elantra | 1.8L | L4 | Fuel Pump Module Assembly |
| 2014 | Hyundai | Elantra | 1.8L | L4 | Fuel Pump Module Assembly |
| No rows match your filter. | |||||
