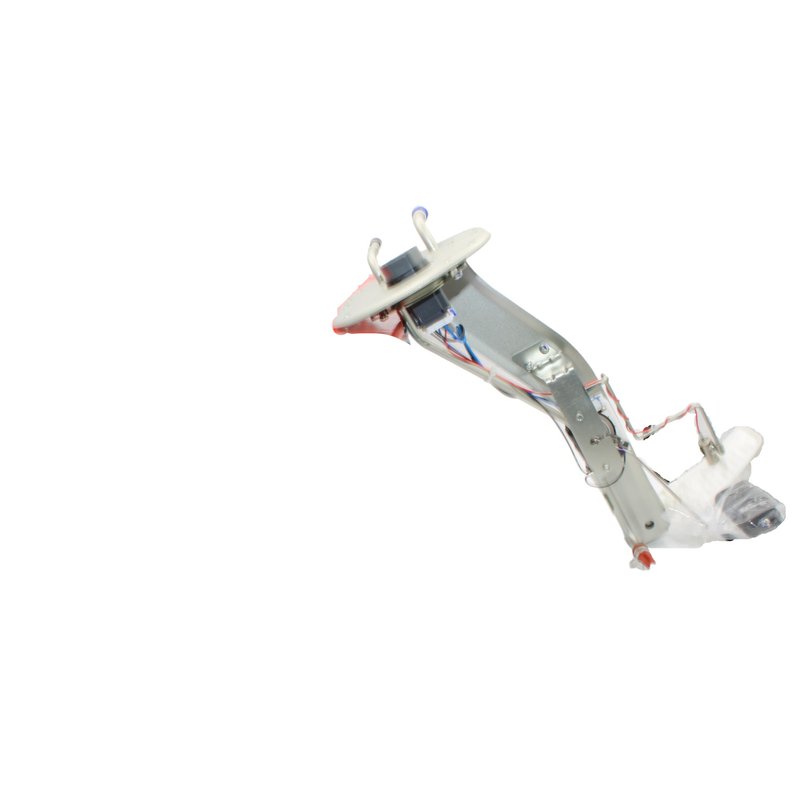

Autobest F8264A Fuel Pump Hanger Assembly
| Brand | Autobest F8264A |
|---|---|
| Average Current Draw(A) | 10 |
| Average Flow Rating(GPH) | 40 |
| Connector Gender | Female |
| Connector Shape | Trapezoid |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Material | Nitrile rubber |
| Grade Type | Premium |
| In Tank or External | In tank |
| Internal Or External Strainer | External |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 2 |
| Package Contents | Fuel pump assembly |
| Product Height (in) | 11.856 |
| Product Length (in) | 9.75 |
| Product Width (in) | 6.786 |
| Resistance Ohms Empty | 110 |
| Resistance Ohms Full | 3 |
| Short Description | Fuel pump hanger assembly |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| UPC | 00072845182647 |
| Voltage | 12 |
| Warranty | Limited lifetime warranty |
| Product line | Fuel Pump Hanger Assembly |
| Fits | Toyota · 3 vehicles |
Complete assembly. Includes the sender, fuel filter, and strainer for streamlined fuel system service.
Premium-grade build. Designed as an in-tank fuel pump hanger assembly with nitrile rubber sealing.
Electrical details. Uses a 12-volt, 5-blade female connector with dual outlets.
Cross-references Delphi HP10253 and USEP21036H for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Hanger Assembly Overview
Autobest F8264A is a fuel pump hanger assembly for fuel delivery service on select Toyota truck applications. It combines the pump hanger, sending unit, filter, and strainer components needed to restore fuel system function in one in-tank assembly.
Key Features
- In-tank fuel pump hanger assembly with a premium-grade construction.
- Includes a fuel sending unit, fuel filter, and strainer.
- Female trapezoid connector with 5 blade terminals.
- 12-volt operation with 10-amp average current draw.
- Dual outlet design for fuel delivery routing.
- Nitrile rubber seal material for fuel system sealing.
Detailed Description
This Autobest fuel pump hanger assembly is built for direct fuel system replacement where the hanger, pump support, and sender are serviced together. The unit is designed for in-tank use and includes an external strainer, a fuel filter, and a fuel sending unit to address common wear points in the fuel delivery circuit. The resistance range is 110 ohms empty and 3 ohms full, which supports accurate fuel level reporting. Autobest F8264A is listed for 2000-2002 Toyota Tundra fuel pump hanger assembly applications, and the part number F8264A is useful when matching the correct assembly for service work. This part cross-references Delphi HP10253 for the same application.
What It Helps Fix
- Hard starting caused by weak fuel delivery.
- Inaccurate fuel gauge readings from a worn sender.
- Fuel starvation from a restricted filter or strainer.
- Intermittent pump operation related to aging in-tank components.
- Fuel system service needs where the hanger assembly is replaced as a unit.
Installation Notes and Tips
Verify connector style, terminal count, and tank-side dimensions before installation. Confirm the vehicle uses an in-tank hanger assembly with the listed sender resistance range and outlet configuration. The product does not include mounting hardware, so reuse or source any required fasteners separately. Match the part number F8264A to the application before removing the tank assembly.
Quality Assurance
Autobest lists this part as a premium-grade fuel pump hanger assembly and backs it with a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2002 | Toyota | Tundra | 4.7L | V8 | Fuel Pump Hanger Assembly |
| 2001 | Toyota | Tundra | 3.4L | V6 | Fuel Pump Hanger Assembly |
| 2000 | Toyota | Tundra | 3.4L | V6 | Fuel Pump Hanger Assembly |
