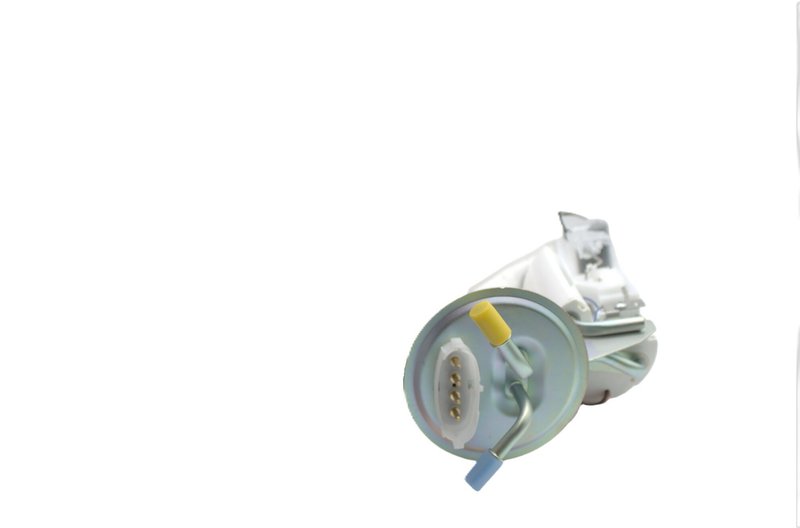

Autobest F8286A Fuel Pump Hanger Assembly
| Brand | Autobest F8286A |
|---|---|
| Average Current Draw(A) | 7.5 |
| Average Flow Rating(GPH) | 36 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Elliptic |
| Country of Orign | China |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Material | Nbr |
| Grade Type | Performance |
| Housing Material | Pom |
| In Tank or External | In tank |
| Installation Warnings | No |
| Internal Or External Strainer | External |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Package Contents | Fuel pump module assembly |
| Product Height (in) | 10.8 |
| Product Length (in) | 6.7 |
| Product Width (in) | 4.4 |
| Pump Type | Turbine |
| Resistance Ohms Empty | 20 |
| Resistance Ohms Full | 162 |
| Short Description | Fuel pump hanger assembly |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Product line | Fuel Pump Hanger Assembly |
| Fits | Ford · 8 vehicles |
Complete fuel module. Includes the pump assembly, sender, and strainer for service replacement.
Performance-grade build. POM housing and NBR seal material support fuel system durability.
12V turbine design. Uses a turbine pump with a 36 GPH average flow rating.
Cross-references Delphi HP10275 and US Motor Works USEP12304M for the same application. See all 2.
Fuel pump hanger assembly overview
Autobest F8286A is a fuel pump hanger assembly for select 1990-1991 Ford trucks. It combines the pump module, sending unit, and strainer into an in-tank fuel delivery solution for direct replacement service.
Fits 1990-1991 Ford F-150, N/A. Fits 1990-1991 Ford F-250, N/A. Fits 1990-1991 Ford F-350, N/A. Fits 1990-1991 Ford F-Super Duty, N/A.
Key features
- In-tank fuel pump hanger assembly with turbine pump design.
- Fuel sending unit included for fuel level signal replacement.
- External strainer included to support fuel pickup protection.
- 12V electrical system with male connector and 4-pin terminal layout.
- Performance-grade construction with POM housing and NBR seal material.
- Average flow rating of 36 GPH and 7.5A average current draw.
Detailed description
This Autobest fuel pump hanger assembly is built for 1990-1991 Ford F-150, Ford F-250, Ford F-350, and Ford F-Super Duty applications that use an in-tank hanger-style fuel delivery setup. The F8286A includes the fuel sending unit and strainer, and it uses a turbine-style pump with a male elliptic connector and pin terminals for the specified electrical connection. The assembly measures 10.8 inches high, 6.7 inches long, and 4.4 inches wide, with a 12V operating specification and a 36 GPH average flow rating. This part cross-references Delphi HP10275 and US Motor Works USEP12304M for the same application.
Autobest’s Fuel Pump Hanger Assembly line focuses on complete fuel delivery service components for vehicles that require an in-tank hanger assembly rather than a standalone pump. F8286A follows that product line approach by combining the pump module and sender in one service part for fuel system repair.
What it is used for
- Replacing a worn fuel pump hanger assembly.
- Restoring fuel delivery when pump output drops.
- Correcting inaccurate fuel level readings from a failed sender.
- Addressing fuel pickup issues related to a damaged strainer.
Installation notes and tips
Verify connector style, terminal count, and tank configuration before installation. Confirm the vehicle uses an in-tank hanger assembly and compare the original unit’s electrical and dimensional details to F8286A. The product listing notes no mounting hardware included.
Quality assurance
Autobest F8286A includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1991 | Ford | F-150 | 5.0L | V8 | Fuel Pump Hanger Assembly |
| 1991 | Ford | F-250 | 5.0L | V8 | Fuel Pump Hanger Assembly |
| 1991 | Ford | F-350 | 5.8L | V8 | Fuel Pump Hanger Assembly |
| 1991 | Ford | F-Super Duty | 7.5L | V8 | Fuel Pump Hanger Assembly |
| 1990 | Ford | F-150 | 5.0L | V8 | Fuel Pump Hanger Assembly |
| 1990 | Ford | F-250 | 7.5L | V8 | Fuel Pump Hanger Assembly |
| 1990 | Ford | F-350 | 5.8L | V8 | Fuel Pump Hanger Assembly |
| 1990 | Ford | F-Super Duty | 7.5L | V8 | Fuel Pump Hanger Assembly |
