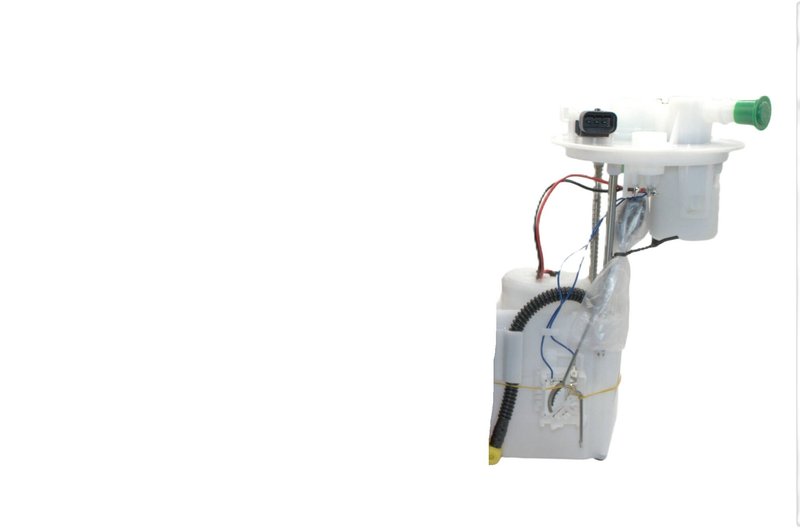

Autobest F8809A Fuel Pump Module Assembly

Fuel Pump Module Assembly for Kia Soul

Autobest F8809A is a fuel pump module assembly for the in-tank fuel delivery system on select 2014-2015 Kia Soul models. It combines the pump, fuel sending unit, fuel filter, strainer, and fuel tank pressure sensor in one replacement assembly for direct service of the fuel system.

Built with a turbine-style pump and a 12V electrical design, this Autobest fuel pump module assembly supports steady fuel delivery and accurate tank level feedback. It is a fitment-based replacement for 2014-2015 Kia Soul applications and is listed with a limited lifetime warranty.

Key Features

• Autobest Fuel Pump Module Assembly, part number F8809A
• Fits 2014-2015 Kia Soul fuel system applications
• In-tank turbine pump design with 39.6 GPH average flow rating
• 12V operation with 8.5A average current draw
• Includes fuel filter, strainer, fuel sending unit, and fuel tank pressure sensor
• Male connector with 4-pin PIN terminal layout
• Housing material: POM
• Limited lifetime warranty

Product Details

Autobest F8809A is a fuel pump module assembly for the Kia Soul fuel tank module location. It is engineered as an in-tank replacement with one outlet, an internal strainer, and a rectangular male connector. The assembly also includes the fuel sending unit and fuel tank pressure sensor, which helps restore fuel level reporting and system monitoring in the same service procedure. For buyers searching for a 2014 Kia Soul fuel pump module assembly or a 2015 Kia Soul fuel pump module assembly, this part number F8809A matches the listed application.

This part cross-references Delphi FG1898 and USEP21021M for the same application.

Common Problems This Part Can Address

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent fuel pressure
• Inaccurate fuel gauge readings from a worn sending unit
• Fuel tank pressure sensor faults tied to the module assembly
• Fuel starvation symptoms under load

Installation Notes and Quality Assurance

Install this fuel pump module assembly in the tank using the vehicle-specific service procedure for the 2014-2015 Kia Soul. Verify connector style, terminal count, and fuel line routing before installation. Because mounting hardware and wire harness are not included, reuse or source the required vehicle-specific components as needed.

Autobest lists this part as available to order and backs it with a limited lifetime warranty. Confirm fitment by year, make, and model before purchase, especially when replacing an existing Kia Soul fuel pump module assembly or ordering by part number F8809A.
