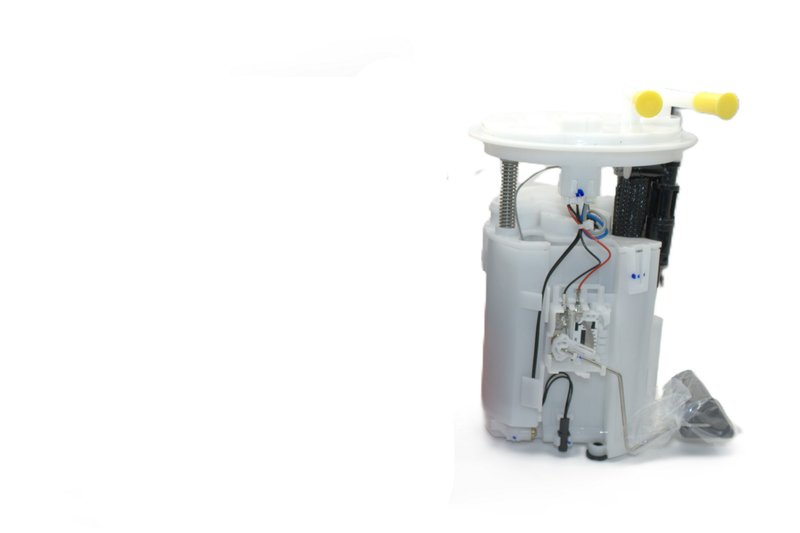

Autobest F8860A Fuel Pump Module Assembly
| Brand | Autobest F8860A |
|---|---|
| Average Current Draw(A) | 8 |
| Average Flow Rating(GPH) | 150 |
| Connector Gender | Male |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Grade Type | Premium |
| Housing Material | Pom |
| In Tank or External | In tank |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Package Contents | Fuel pump assembly |
| Product Height (in) | 13.65 |
| Product Length (in) | 7.02 |
| Product Width (in) | 7.02 |
| Pump Type | Vane |
| Resistance Ohms Empty | 2+2-1 |
| Resistance Ohms Full | 32±3 |
| Short Description | Fuel pump module assembly |
| Strainer Included | Yes |
| Terminal Quantity | 6 |
| Terminal Type | Buckle type |
| UPC | 00072845188601 |
| Voltage | 12v |
| Warranty | Limited lifetime warranty |
| Product line | Fuel Pump Module Assembly |
| Fits | Subaru · 4 vehicles |
Complete module. Includes the pump, fuel filter, sending unit, and strainer in one assembly.
In-tank design. Built for fuel tank mounting with a premium POM housing.
12V vane pump. Uses a 6-terminal male connector and 150 GPH average flow rating.
Cross-references Anchor 3217, Delphi FG1859 and US Motor Works USEP8651M for the same application. See all 4.
Fuel delivery replacement
Autobest F8860A is a fuel pump module assembly for select Subaru applications. It combines the pump, fuel filter, fuel sending unit, and strainer in one in-tank unit for a direct service replacement.
- Fits 2008-2011 Subaru Impreza, N/A.
- 12V vane-style pump with 150 GPH average flow rating.
- Male rectangular connector with 6 terminals.
- POM housing with internal strainer and included fuel filter.
- Fuel sending unit included for level signal restoration.
Product details
This Autobest fuel pump module assembly, part number F8860A, is built as an in-tank replacement for fuel delivery service. The module uses a premium-grade POM housing, draws 8 amps on average, and includes the fuel filter, fuel sending unit, and strainer. It is a practical choice when servicing a Subaru Impreza fuel system that needs a complete module rather than a pump-only repair. The F8860A also cross-references Delphi FG1859 for the same application.
Common repair issues
- Hard starting caused by weak fuel delivery.
- Inaccurate fuel level readings from a worn sending unit.
- Reduced fuel flow from a failing in-tank pump.
- Fuel starvation symptoms under load or at higher demand.
Installation notes
Install this module in the fuel tank and verify connector style, terminal count, and electrical requirements before installation. The assembly does not include mounting hardware or a wire harness. Confirm tank access, seal condition, and fitment details for the 2008-2011 Subaru Impreza before service. Part number F8860A should be matched to the vehicle application and connector configuration during replacement.
Quality assurance
Autobest lists this fuel pump module assembly with a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2011 | Subaru | Impreza | 2.5L | H4 | Fuel Pump Module Assembly |
| 2010 | Subaru | Impreza | 2.5L | H4 | Fuel Pump Module Assembly |
| 2009 | Subaru | Impreza | 2.5L | H4 | Fuel Pump Module Assembly |
| 2008 | Subaru | Impreza | 2.5L | H4 | Fuel Pump Module Assembly |
