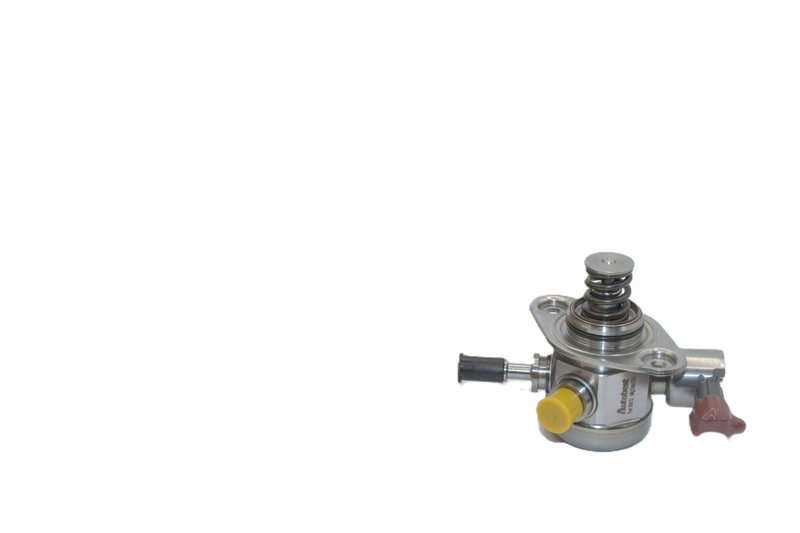

Autobest F9061D Direct Injection High Pressure Fuel Pump
| Brand | Autobest F9061D |
|---|---|
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Elliptic |
| Country of Orign | China |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Material | Fkm |
| Grade Type | Performance |
| In Tank or External | External |
| Installation Warnings | No |
| Internal Or External Strainer | Internal |
| Life Cycle Status Code | Available to order |
| Outlet Quantity | 1 |
| Package Contents | Direct injection high pressure fuel pump |
| Product Height (in) | 3.54 |
| Product Length (in) | 4.76 |
| Product Width (in) | 2.8 |
| Pump Type | Plunger pump |
| Short Description | Direct injection high pressure fuel pump |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Pin |
| UPC | 00072845190611 |
| Warranty | Limited lifetime warranty |
| Weight (lbs) | 1.63 |
| Wire Harness Included | No |
| Product line | Direct Injection High Pressure Fuel Pump |
| Fits | Hyundai and Kia · 19 vehicles |
Direct injection design. Built for high-pressure fuel delivery in GDI systems.
Performance grade. A replacement pump with FKM sealing material and internal strainer.
Limited lifetime warranty. Backed by Autobest for the listed fuel pump application.
Cross-references Delphi HM10002, D80051 and USDI10002 for the same application. See all 3.
Direct Injection Fuel Pump
Autobest F9061D is a direct injection high pressure fuel pump for gasoline direct injection systems. It is built as an external plunger pump with a female elliptic connector, internal strainer, and FKM seal material for the specified application.
Compatible With Kia Forte Koup, Kia Forte5, Kia Soul, Kia Rio, and Hyundai Veloster and Accent applications that use this fuel pump configuration. The Autobest F9061D is listed as a performance-grade replacement and includes a limited lifetime warranty.
Key Features
- Direct injection high pressure fuel pump for GDI fuel delivery systems
- External pump design with internal strainer
- FKM seal material for fuel-system sealing
- Female connector with elliptic shape and male pin terminals
- Performance-grade replacement backed by a limited lifetime warranty
Detailed Description
This Autobest fuel pump is intended for direct injection applications that require high-pressure fuel delivery. Part number F9061D is cataloged for 2012-2016 Kia Soul, 2012-2014 Kia Rio, 2013-2014 Hyundai Accent, 2013-2015 Hyundai Veloster, 2014-2016 Kia Forte Koup, and 2014-2016 Kia Forte5 fitments. The compact pump body measures 4.76 inches long, 2.8 inches wide, and 3.54 inches high.
Autobest F9061D cross-references Delphi HM10002 for the same application. If you are replacing a worn direct injection high pressure fuel pump on a Kia Soul, Kia Forte5, or Hyundai Veloster, this part number provides a direct catalog match for the listed vehicles.
Common Issues It May Solve
- Hard starting caused by insufficient high-pressure fuel delivery
- Fuel pressure loss in direct injection systems
- Engine hesitation related to pump wear
- Driveability problems from inconsistent fuel supply
- Fuel system faults tied to a failing high pressure pump
Installation Notes and Quality Assurance
Verify connector style, terminal type, and fuel system configuration before installation. This pump uses one female connector, two male pin terminals, and an internal strainer. No wire harness is included.
Autobest F9061D includes a limited lifetime warranty. Autobest lists this part as available to order, and the performance-grade construction supports direct replacement use in the specified applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2016 | Kia | Forte Koup | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2016 | Kia | Forte5 | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2016 | Kia | Soul | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2015 | Hyundai | Veloster | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2015 | Kia | Forte Koup | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2015 | Kia | Forte5 | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2015 | Kia | Soul | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2014 | Hyundai | Accent | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2014 | Hyundai | Veloster | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2014 | Kia | Forte Koup | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2014 | Kia | Forte5 | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2014 | Kia | Rio | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2014 | Kia | Soul | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2013 | Hyundai | Accent | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2013 | Hyundai | Veloster | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2013 | Kia | Rio | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2013 | Kia | Soul | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2012 | Kia | Rio | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
| 2012 | Kia | Soul | 1.6L | L4 | Direct Injection High Pressure Fuel Pump |
